15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

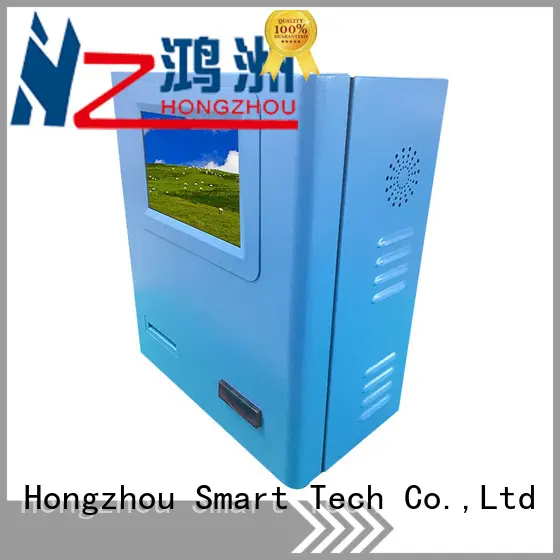

Wall mounted payment kiosk with blue powder coated in bank 1

Wall mounted payment kiosk with blue powder coated in bank 2

Wall mounted payment kiosk with blue powder coated in bank 3

Wall mounted payment kiosk with blue powder coated in bank 4

Wall mounted payment kiosk with blue powder coated in bank

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. It is of great importance for Hongzhou to pay attention to the design of the kiosk payment terminal.
2. It is developed with the best functionality and quality.
3. The product is outstanding in terms of performance, durability, and usability.
4. By cause of payment kiosk system , our competence in kiosk payment terminal industry has been increasing a lot.
5. If quality of our kiosk payment terminal can speak, he will say yes.

Components List
No.	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Baytrail Integrated Network card and Graphic card
			CPU	Intel J1900
			RAM	4GB
			HDD	1000G
			Interface	8x USB, 6 x COM, 1 x VGA, 2x LAN,1x AUDIO, 1x LPT, 1*PS/2
			PC Power Supply	llano(12V5A)
2	Operation System		Windows 7(without license)
3	Display	Auo	Screen Size	10.1 inch
			Pixel Number	1366X768
			Brightness	350cd/m2
			Contrast	900:1
			Display Colors	16.7M
			Viewing Angle	80/80/85/85 (up / down / left / right)
			LED Life Time	Min. 40000hrs
4	Touch Screen	EG10.1	Screen Diagonal	10.1 inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	-40°C~+85°C at Min 20% to Max 90%RH
5	Printer	Epson-MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
6	Cash accepter	NV9	Mean fault free	More than 800 thousand cycles
			Currency reading speed	Less than 3.0 seconds
			The box capacity	Less than 600
			Recognition rate	Acceptance rates can be as high as 99.8%
			Characteristic	According to the different panel width there are three panel options, 66mm, 69 mm, 82 mm

				The same kind of paper money to support multiple countries of the currency, you can freely download from our website
7	Modem	TPLINK	receipt wifi signal
8	Speaker	OP‐100	Dual channel amplified speakers for Stereo , 8Ω 5W.
9	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.
10	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.

11	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

※ Bank card reader and 10.1 inch touch screen

Wall mounted payment kiosk with blue powder coated in bank 5

Product details

Wall mounted payment kiosk with blue powder coated in bank 6

Stable performance

Wall mounted payment kiosk with blue powder coated in bank 7

High end appearance

Company Features
1. Hongzhou Smart Tech Co.,Ltd has been very active in the kiosk payment terminal industry for many years.
2. There are many production lines to manufacture high quality pay kiosk .
3. Hongzhou Smart Tech Co.,Ltd has professional team to provide best after-sales service. Check now! Undertaking responsibilities to promote payment kiosk system is our mission. Check now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
