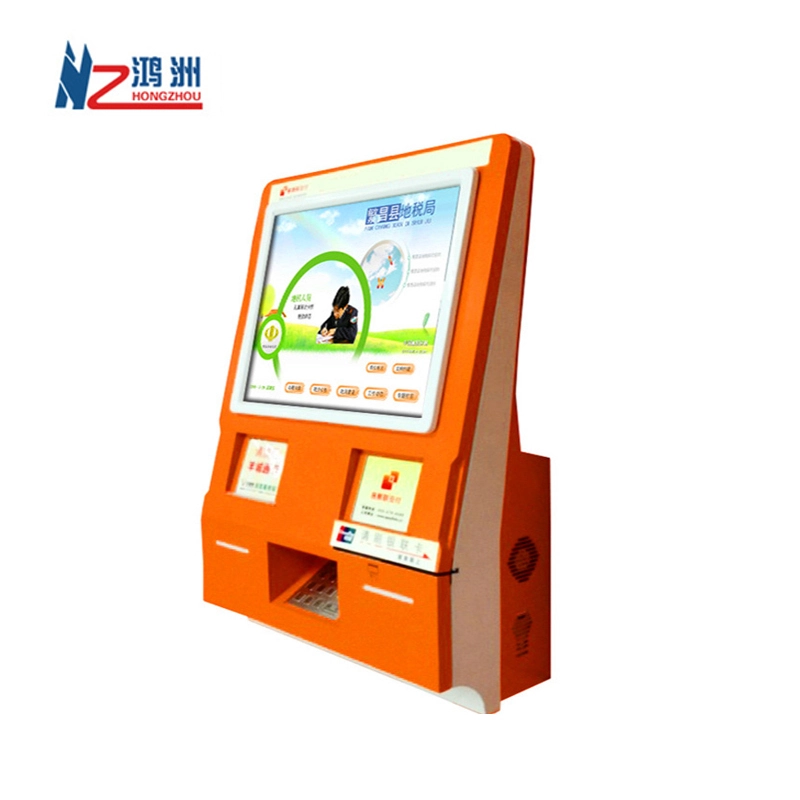

Wall Mounted Payment Kiosk With Printer and Card reader
Wall Mounted Payment Kiosk With Printer and Card reader
| Specification: | |
| lcd kiosk: | Touch screen Technology |
| Display area(mm)/mode: | 1428.48(W)×803.52mm(H) 16:9 |
| Maximum resolution: | 1920*1080 FHD |
| Display color: | 16.7M |
| Pixel Pitch(mm): | 0.744(H)×0.744mm(V) |
| Brightness (nits): | 500nits |
| Contrast: | 4000:01:00 |
| Visual angle: | 178°/178° |
| Response: | 6.5ms |
| Touch screen: | CVT infrared two-point touch screen |
| PC Specification: | mini PC |
| Main board: | H61 |
| CPU: | Intel 32 core I3, dual-core ,3.10GHz |
| RAM: | DDR3, 4GB |
| HDD: | 500G |
| Graphics: | IntelHD2000 (CPU integrated) |
| Wifi model: | Yes |
| Wired network: | built-in Realtek RTL8103EL |
| LED panel: | Original factory Grade A new panel |
| Panel life: | above 50,000hrs |
| Operating System: | Windows 7, Windows 8, Windows XP etc. |
The above PC configuration is for your reference, i5, i7 series and other configurations are also available to meet your standards,please inform us if needed. | |
| Physical Specification: | |
| Kiosk shell material: | 1.5mm cold rolled steel+Acrylic cover/ anti-scratched tempered glass |
| Color: | Black/White/customized colors |
| Fan: | 2X12V fans |
| Audio/Speakers: | 2 x 8Ω10W Speakers, 1 x 30W Amplifier |
| Ports/Slots: | Power input | Power switch | PC switch | USB | LAN |
| Cables: | Standard international power cable |
| or according to your requirement | |
| Power supply: | AC 110–240, 50-60Hz |
| Operating temperature: | 0°C ~ +40°C |
| Storage temperature: | -20°C ~ +60°C |
| Humidity: | 0% ~ 80% |
| Other Kiosk Components: | all are optional, please inform us if needed. |
| Camera: | Logitech |
| Wired network: | 3G/GPRS modem, Bluetooth, GPS receiver |
| Printers: | 58mm,80mm, ticket printers |
| Input: | Keyboards, Touch pads, Trackballs |
| Card Devices: | Magnetic / IC / RFID devices, Multi-card reader |
| Payment Devices: | Debit / Credit Card Payment devices, Bill & Coin devices |
| Scanners: | Barcode & document scanners |
| Authentication: | Biometric devices & signature pads |
Hongzhou, ISO9001:2008 certified Hi-tech corporation, is a leading global self-service Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing a complete solution for self service Kiosks.
1. Q: Are you a factory or trading company?
A:We are an OEM/ODM factoryof All in one kiosk.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen Guangdong China.
3. Q:Can I get some samples ofAll in one kiosk?
A: Sample order is welcome. And welcome to visit our factory to see and text sample.
4.Q:What's your MOQ?
A:Any quantity is ok, More quantity, More favorable price. We will give discount to our regular customers. For new customers, discount also can be negotiated.
5.Q:How does your factory do quality control?
A:Quality is priority. There are professional and experienced QC test our products three times, and then QC manager test again to insure our quality is best.Now Our factory has gained ISO9001, CE, RoHS authentication.
6. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and designs of your order.
7. Q: What is your after-sale service?
A: We have after-sale service department , if you need after- sale service, you can not only contact with sales , you can also contact our after- sales service department .We offer 100% guarantee on our product . And we provide Lifetime maintenance.
