Home  > PRODUCT  > Customized Kiosk Solution  >  Windows OS touch screen payment kiosk bill acceptor Machine

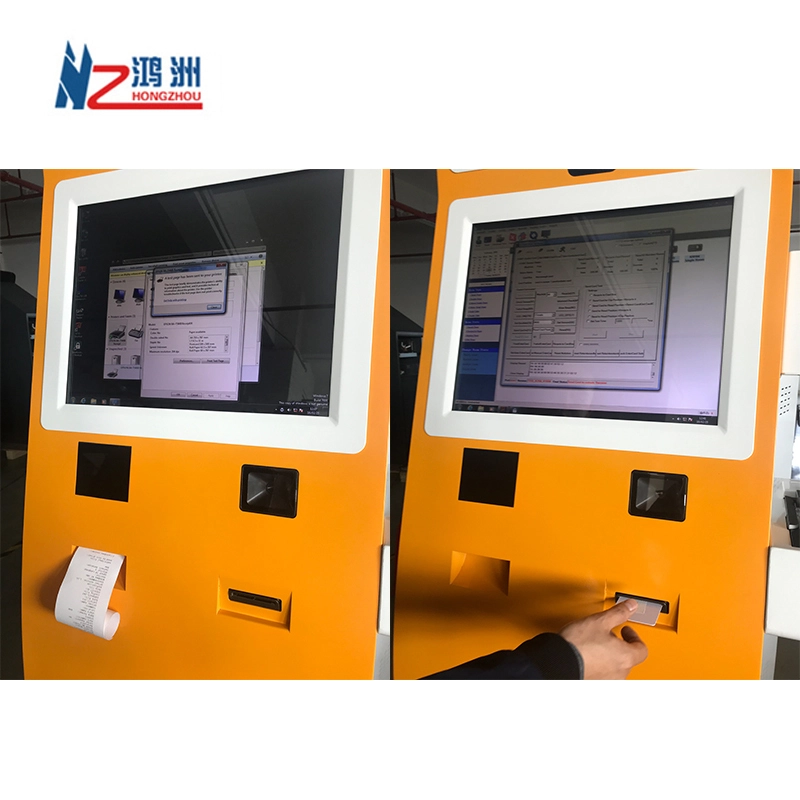

Windows OS touch screen payment kiosk bill acceptor Machine
Windows OS touch screen payment kiosk bill acceptor Machine
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Customzied
Product Name:
Windows OS touch screen payment kiosk bill acceptor Machine
Function:
bill payment kiosk
Touch screen type:
Capacitive Touch
Main components:
Touchscreen
Application:
Indoor
Optional parts:
Contactless Card Reader
Power supply:
110-240V 50HZ/60HZ
Touch Screen:
15/17/19/22"
Kiosk color:
Customer's Request
Color:
Client's Requests
Supply Ability
Supply Ability:
10000 Unit/Units per Month

Windows OS touch screen payment kiosk bill acceptor Machine



Automated check-in&out systems lower the amount of employee time needed because guests can complete procedures on their own.Guests no longer worry about confusing procedures or waiting in line for counter service, resulting in more customer satisfaction of stay.Also, guests can pay by credit card & QR at this kiosk.

Product Description

Module

Detailed Configuration
Operate System Windows7
Main control
module

Intel Core i5 CPU,4G RAM,500GB HDD,2 way VGA output,

Integrated sound card , Dual network card,10 x UART,8 X 2.0

USB Port,4 X 3.0USB Port,HDMI interface,Mics and earphones

interface, Audio interface,Parallel Port,2 x PS2 interface(keyboard

and mouse)

Cash dispenser module

CDM8240; Full condition detection and run out of cash detection.,

banknote capacity:3000 pieces. Bulk notes dispenser. Cash will be

accepted at once.

Dispensing speed: 7notes/second
Banknotes Identification module

High-speed banknotes Scanning, recording and store the banknotes

reference No. by OCR.

Display 19”TFT touch screen,Resolution 1280*1024
Card reader PSAM card, IC card and Magcard abide by ISO and EMV,PBOC 3.0
Pin pad shield Yes
Customer awareness mirror Yes
Receipt Printer Thermal Printer
Barcode Scanner 2D
Camera 1080P,Paranomic photography in operation zone
UPS Certified by 3C(CCC)
Power supply 220V~50Hz 2A
Working Environment Temperature:Indoor:0℃ ~ +35℃;
Relative Humidity:20%~ 95%

Features:

1.Professional design for industrial application.

2.Ultra wide angle,contrast,brightness and resolution;

3.16.7M color,short response time;

4.Low power supply,support long last working time;

5.With multi touch IR touch screen;

6.Support water proof,dust proof;

7.Anti-interference,wear-resisting and multi-touch support



Signal Interface:

1.Standard interface:USB 2.0(Hosr),SD/CF card port,capacity of memory card support 32MB to 32GB.

2.It is optional for HDMI,AV,VGA,LPT port and DC power.

Company Information

Hongzhou, ISO9001:2008 certified Hi-tech corporation, is a leading global self-service Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing a complete solution for self service Kiosks.


We have a strong self-service terminal product’s development, software support and system integration capability, and offer customized solution according to client’s individual need.
Equipped with a series of leading precision sheet metal and CNC machine tool equipment, and modern self-service terminal electronic assembly lines, our product are approved by CE, FDA,ROHS, FCC,CCC,IP65 etc.


Our self-service terminal product and solution are designed and manufactured base on lean thinking, with vertical integrated batch production capacity, low-cost structure, and outstanding customer collaboration, we are good at quick response to customer's tailor-made requirement, providing customer with one-stop self-service terminal solution.


Hongzhou high quality product and self-service terminal solution are popular both in the domestic and global markets in over 90 countries, cover financial self-service kiosk, payment kiosk, retail ordering kiosk, ticketing/card issuing kiosk, multi-media terminals, ATM/ADM/CDM, they are widely used in bank, and securities, traffic, hotel, retail, communications, medicine, cinema.

Detailed Images

Production Flow

FAQ

1. Q: Are you a factory or trading company?
A:We are an OEM/ODM factoryof All in one kiosk.

2. Q: Where is your factory located? How can I visit there?

A:Our factory is located in Shenzhen Guangdong China.

3. Q:Can I get some samples ofAll in one kiosk?
A: Sample order is welcome. And welcome to visit our factory to see and text sample.

4.Q:What's your MOQ?
A:Any quantity is ok, More quantity, More favorable price. We will give discount to our regular customers. For new customers, discount also can be negotiated.

5.Q:How does your factory do quality control?
A:Quality is priority. There are professional and experienced QC test our products three times, and then QC manager test again to insure our quality is best.Now Our factory has gained ISO9001, CE, RoHS authentication.

6. Q: When will you make the delivery?

A: We can make the delivery within 3-15 working days according to the size and designs of your order.

7. Q: What is your after-sale service?
A: We have after-sale service department , if you need after- sale service, you can not only contact with sales , you can also contact our after- sales service department .We offer 100% guarantee on our product . And we provide Lifetime maintenance.

Thanks to its easy operation and maintenance during its service life, this product can greatly help reduce operation costs. It provides a high-end display that engages users at a glance. People can get what they are paid. Extremely high quality of the fabric and rich designs will appeal to one's eyes and heart together! - Said one of our customers. It provides a high-end display that engages users at a glance.
