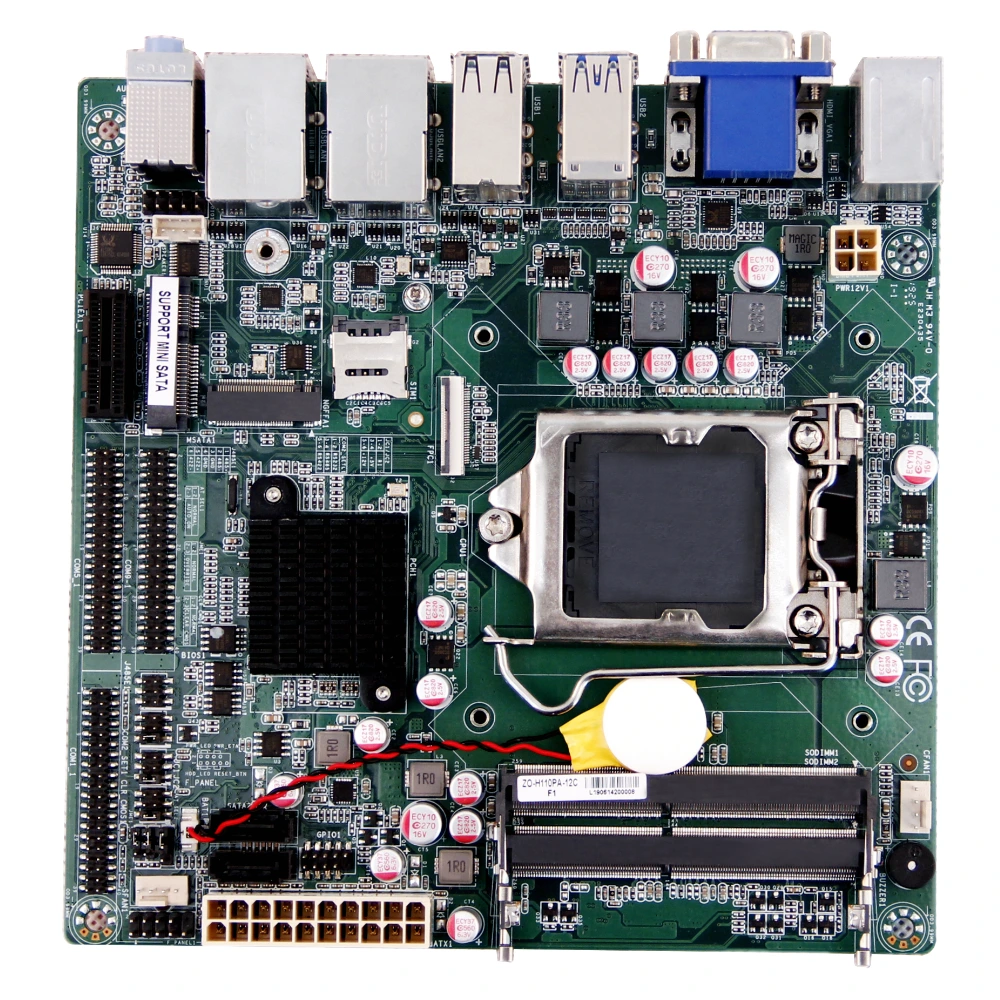

X86 Industrial Motherboard UH110PA-12C with Mini ITX Onboard CPU
Intel ® H110 chipset supports 7th & 6th Gen Core™ i Processor, with 12 threads and 12 COMs, supports M.2 WIFI and 3G/4G module at the same time
Specification List
|
Model No. |
UH110PA-12C |
|
Category |
X86 Motherboard |
|
Chipset |
H110 |
|
CPU |
Support Intel LGA1151 series |
|
GPU |
INTEL Built in Display Core |
|
Display output |
VGA 、 HDMI、 EDP |
|
Multi Display |
VGA+HDMI/HDMI+EDP/VGA+EDP, |
|
USB |
4*USB3.0 |
|
RAM |
2*SO-DIMM DDR4 2133/2400MHz 32GB |
|
Audio |
Onboard Realtek ALC662H +NS4258 Chip Output power： 3.2W× 2(4Ω Load), 5.2W × 2(2Ω Load) |
|
Network |
Onboard 2*Realtek RTL8111H Gigabit LAN |
|
Storage |
2*SATA3.0 |
|
WIFI |
1*MINIPCIE (for 3G/4G) |
|
I/O chip |
2*ITE8786E-I |
|
Rear I/O interface |
2*LAN |
|
Internal I/O Pins |
1*F-AUDIO PIN |
|
BIOS |
AMI BIOS |
|
Power supply |
4PIN ATX /20PIN ATX |
|
Cooling |
Need Self-equipped 115X CPU and FAN |
|
Operating environment |
Operating -10~60℃; |
|
Size |
170X170MM |
UH110PA-12C motherboard adpots the Intel H110 Chipset supports Intel 7th & 6th Gen Core™ i Processor (LGA1151). Its bus speed is upto 5GT/s. It is onboarded with two SO-DIMM supports up to 32GB DDR4. The board has VGA/HDMI/eDP display output which supports two synchronous/asynchronous display, and is widely used in Industrial Commercial Temp, Embedded Broad Market Commercial Temp, PC/Client/Tablet etc.
