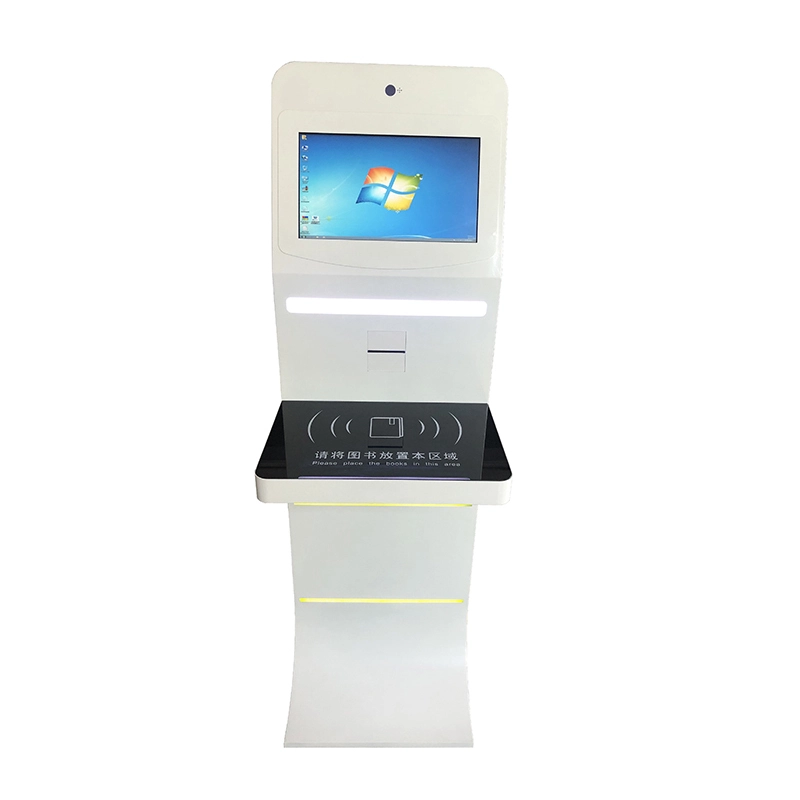

17 inch touchscreen library kiosk for return and borrow books
17 inch touchscreen library kiosk for return and borrow books
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Customized
Product Name::
Library kiosk
Optional parts:
Barcode Reader
Touch Screen size:
15.6 inch
Operation System::
Windows 7
Installation:
Free Standing
Service::
OEM/ODM
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Product Description




Industrial PC System
Mother Board
Baytrail; Integrated Network card and Graphic card
CPU
Intel J1900
RAM
4GB
SSD
120g
Interface
8*USB, 6*COM, 1*VGA, 2*LAN,1*AUDIO, 1*LPT, 1*PS/2
PC Power Supply
12V5A
Operation System
Windows 7 (withtout license)








Display+Touch screen
Screen Size
15.6 inch
Pixel Number
1920*1080
Pixel pitch
250cd/m²
Contrast
1000∶1
Display Colors
16.7M
Viewing Angle
85°/85°/85°/85°
LED Life Time
Min. 30000hrs
Touch point number
10 point
Input mode
Finger or capacitor pen
Surface hardness
≥6H





Book reader
Protocol
ISO 18000-6C/EPC C1G2, ISO18000-6B
Working Frequency
ETSI 865~868mhz, GB 840~845Mmhz, 920~925mhz, FCC 902~928mhz
Tag Reading Speed
>600 times/s
Communication Port
TTL COM
Voltage
standard 5V 3A




Printer
Printer Method
Thermal printing
Print width
58mm
Speed
150mm/sec(Max)
Resolution
203dpi
Print length
100KM
Autocutter
included
Speaker
Dual channel amplified speakers for Stereo , 8Ω 5W.
  • Product Features
Not only can library users easily borrow, return, and renew items at our self-service stations, but they can discover events and
programs, receive reading recommendations, and pay fines and fees. Users can also borrow items from their smartphones, receive
interactive receipts, switch between multiple virtual library cards, and discover digital titles at the selfCheck and within the
cloudLibrary app. This truly integrated approach delivers an experience today’s users come to expect.

Details Images
Product Features
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental

Self-serve kiosks in libraries gained ground with a number of successful installations, as library visitors took to checking-in and checking-out their own books, DVDs, CDs and other items.
Offering the service use Radio Frequency Identification (RFID) technology, pasting a "tag" in the item to identify and track it.
The tags have antennas that communicate with reading devices at entrances and exits of the library.
Libraries install the RFID systems to make the checkout process simpler and faster, and to free up staff to provide other customers services. Proponents say RFID also provides better tracking and security of library items.
To check out an item the consumer waves the book near a device that reads the information on the tag. This records the data and prints out for the patron a paper listing of the items and due dates. The information is also stored on a library database, and reminders can be sent to patrons that provide email addresses.
The tags will signal the reader if the patron attempts to remove a book without checking it through the system. The reader then alerts librarians with a loud signal.
Patrons returning items wave the book under a reader that confirms it is back in the collection.
