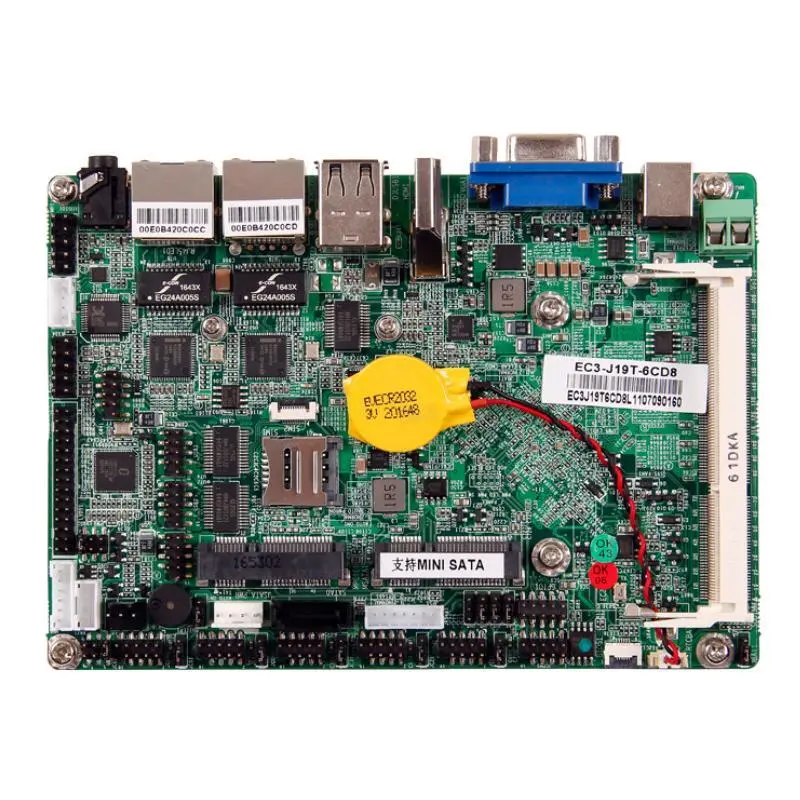

3.5inch SBC X86 Industrial Motherboard UEC3-J19T-6CD8

Model No.

UEC3-J19T-6CD8

Category

X86 Motherboard

Chipset

Support Baytrail J1900/J1800/N2807 Processor

GPU

Intel CPU Built in Display Core

Display output

VGA、HDMI、LVDS

Memory

1*SO-DIMM，DDR3L 1333MHz ，8GB

Audio

Onboard Realtek ALC662 HD

Network

Onboard 2*Intel 82583V Gigabit LAN

Storage

1*SATA2.0

1* MINI-SATA

Expansion Slot

1*MINI-PCIE(for WIFI )

2*SIM(External Lead)

USB

1*USB3.0

9*USB2.0

COM

6*COM (Need to be extended)

（COM2 Supports 232/485,COM1 Supports TTL/232）

Rear I/O

1*USB3.0
1*USB2.0
1*VGA
1*HDMI
2*LAN
1*DC
1*AUDIO

Internal I/O

4*F-USB2.0 PIN（Could be extended 8*USB2.0）

6*COM-SET PIN
6*COM PIN
1*LVDS PIN
1* PS/2 PIN
1*F_AUDIO PIN
1*F_PANEL PIN
1*AUTO-ON PIN
1*SYS-FAN PIN
1*SATA-PWR PIN
1*SPEAKER PIN
1*JME PIN
1*J485 PIN
1*GPIO PIN

BIOS

AMI BIOS

Power supply

DC+2*PIN9~24V power supply

Cooling System

Comes with CPU cooler

Operating Temperature

-10~60℃

Operating Humidity

0% ~ 95% Relative Humidity,Non- condensing

Size

146X102MM
