Shenzhen Hongzhou Group was founded in 2005,ISO9001 2015 certified and China National Hi-tech enterprise.We are leading global self-service Kiosk,POS terminal manufacturer and solutions provider.

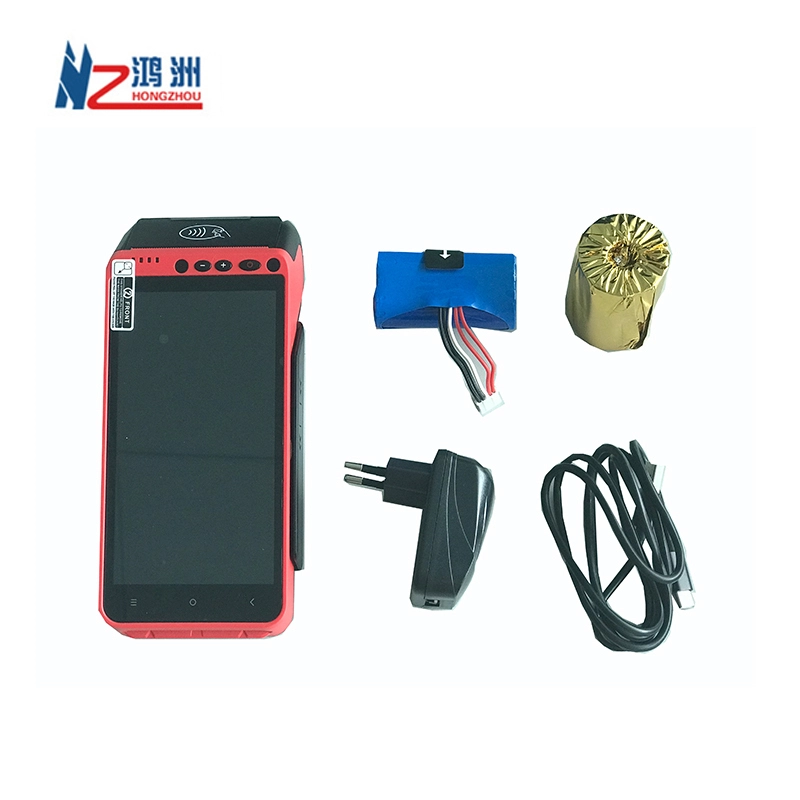

HZ-CS10 is the cutting-edge secure electronic payment terminal powered by Hongzhou Group,with safe-Android 7.0 operation system. It comes with a 5.5inch high definition colorful display, industrial level thermal printer and flexible configuration for various Barcode Scanner scenarios. A wide range of advanced connectivity options are supported for global 3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
HZ-CS10 is widely used in Shopping Mall,Supermarket,Chain Store, Restaurant, Hotel, Hospital, SPA, Cinema, Entertainment, Tourism.
| Specifications | ||
| Basic | OS | Safedroid OS (based on Android 7.0 or 5.1) |
| Characteristics | CPU | Quad-Core 1.35GHZ |
| ROM | 8GB ROM EMMC | |
| RAM | 1G RAM LPDDR3 | |
| Display | 5.5 inch TFT IPS LCD,resolution 1280*720 | |
| Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
| Dimensions | 206mm*84mm*32mm | |
| Weight | 560g(Battery included) | |
| Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys | |
| 3 Virtual keys:Menu,Home,Back | ||
| Input | Chinese/English, and supports handwriting and soft keyboard | |
| Radio Communication | WIFI | IEEE 802.11 a/b/g/n,support dual Band 2.4GHZ and 5GHZ |
| Bluetooth | BT 4.0 LE +EDR | |
| 4G | TD-LTE:Band38, Band39, Band40, Band41 | |
| FDD-LTE:Band1,Band3,Band7,Band8,Band20 | ||
| 3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 | |
| CDMA EV-DO Rev.A:800MHZ | ||
| TD-SCDMA:Band34,Band39 | ||
| 2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ | |
| Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple |
| track (tracks 1/2/3), bi-directional | ||
| Smart Card reader | Supports ISO7816 standard | |
| Contactless Card reader | Supports 14443A / 14443B | |
| Expansion and peripherals | Printer | High-Speed Thermal Printer ; |
| 58mm printing paper ; | ||
| 40mm paper roll | ||
| Camera | 5MP camera with LED flash and auto-focus function | |
| Satellite Positioning | GPS, GLONASS, Bei-Dou satellite navigation system, Supports A-GPS | |
| Audio | Speaker ,Microphone,Earphone | |
| Interfaces | Micro SD Card Slot | 1 PCS |
| SIM Card Slot | 2 PCS MICRO SIM | |
| PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
| USB Port | 1PCS TYPE C USB | |
| Power | Battery | Li-ion battery ,7.2V /2600mAH |
| Charging Port | Type C USB Port ,5V DC,2A | |
| Environment | Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
| Certification | Electromagnetic | CE,ROHS |
| Optional | Fingerprint | Semiconductor capacitance |
| 14.4mm x 10.4mm imaging area | ||
| 208 x 288 pixel array, | ||
| Crossmatch FBI certified | ||
| Authentec,508dpi | ||
| Front camera | 2 Megapixel Fixed Focal Camera | |
| Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies | |
| Fiscal Module | Russian format | |
| Q1: What POS We provide? | ||||||||
A1: For financial/Commerce POS system, Wireless Handheld Cashless POS, Android POS, 2G/3G/GPS/GPRS/Wi-Fi/Bluetooth POS, but NO Desktop Cash POS. | ||||||||
| Q2: Does your company accept custom-made items? | ||||||||
A2: Yes, we can.We are a professional solution supplier for financial security & payment industry, we provide diffierent solutions and products for diffierent customers. | ||||||||
| Q3: How is Our POS's Quality? | ||||||||
A3: EMV Level 1&2, PCI 3.0 & 4.0, CE/RoHS/PBOC 2.0/China UnionPay, CCC, and Network Access License and 100% test before shipment; | ||||||||
| Q4: Do you Have Free SDK, Free Technical Support and After-sale Service? | ||||||||
| A4: 1. Free SDK, Free Technical Support | ||||||||
2. 7 * 24-hour service hotline: 0755-36869189; Online technical support by Email or Skype or Whatsapp; | ||||||||
| 3. Specialized process for repair or exchange of product required; | ||||||||
| 4. One Year QA warranty & Three Years After-sale Service Guarantee. | ||||||||
| Q5: How About Your Shipping of POS? | ||||||||
| A5: Delicate box with foam inside and shipping by air. | ||||||||
| Q6: How Long is Your Lead Time? | ||||||||
| A6: Within 1 for sample and within 45 for 500 to 5000 units after confirm payment. | ||||||||
| Q7. How About Your POS Price? | ||||||||
| A7: The more orders, the lower price. | ||||||||
| Q8: How to Pay for our POS terminal? | ||||||||
A8: Payment: 50% pre-payment,the rest of 50% is honored before shippment by T/T and 100% T/T for a sample. |
Any inquiry about Smart POS Terminal HZ-CS10,please do not hesitate to contact me. Welcome!!!
