Company Advantages1. card swipe machine makes smart pos terminal very competitive in the market.
2. The product has an impeccable quality with stable performance and long service life.
3. The product is superior in performance, durability, and usability.
4. The product features signal high-efficiency. 'It reacts to the response very quickly and accurately', said by customers who purchased it 2 years ago.
5. It enjoys a super long service life. If properly taken good care of, it offers stable and reliable performance for at least a decade.
Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Ø Safedroid OS, Based on Android 5.1 or 7.0 O/S;
Ø 5.5 inch TFT IPS LCD, resolution 1280*720
Ø Built-in high speed thermal printer , with over 50Km print life
Ø Full bands for global coverage: 4G/3G/2G,WLAN,VPN
Ø Authentec,508dpi fingerprint module for biometric identification
Ø Dual camera for quickly QR code scan & Honeywell 2D scanner as option
Ø One-stop payment of MSR/IC/NFC, with PCI PTS 4.X, EMV L1&L2 certified
DEMO SHOW: https://youtu.be/EnVZUunmeMk
No. | Basic Module | Main Specifications |
1 | Basic Characteristics | OS | Safe android OS (based on Android 5.1 or 7.0 O/S) |
2 | CPU | Quad-Core 1.35GHZ |
3 | ROM | 8GB ROM EMMC |
4 | RAM | 1G RAM LPDDR3 |
5 | Display | 5.5 inch TFT IPS LCD,resolution 1280*720 |
6 | Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |
7 | Dimensions | 206mmX84mmX32mm (max 56mm) |
8 | Weight | 530g(Battery included) |
9 | Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys |
10 | 3 Virtual keys:Menu,Home,Back |
11 | Input | Chinese/English ,and supports handwriting and soft keyboard |
12 | Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
13 | Bluetooth | BT 4.0 LE +EDR |
14 | 4G | TD-LTE:Band38, Band39, Band40, Band41 |
15 | FDD-LTE:Band1,Band3,Band7,Band8,Band20 |
16 | 3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 |
17 | CDMA EV-DO Rev.A:800MHZ |
18 | TD-SCDMA:Band34,Band39 |
19 | 2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ |
20 | Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple |
21 | track (tracks 1/2/3), bi-directional |
22 | Smart Card reader | Supports ISO7816 standard |
23 | Contactless Card reader | Supports 14443A / 14443B |
24 | Expansion and peripherals | Printer | High-Speed Thermal Printer ; |
25 | 58mm printing paper ; |
26 | 40mm paper roll |
27 | Camera | 5MP camera with LED flash and auto-focus function |
28 | Satellite Positioning | GPS, Supports A-GPS |
29 | Audio | Speaker ,Microphone,Earphone |
30 | Interfaces | Micro SD Card Slot | 1 PCS |
31 | SIM Card Slot | 2 PCS MICRO SIM |
32 | PSAM Card Slot | 2 PCS Conforms to ISO7816 standard |
33 | USB Port | 1PCS TYPE C USB |
34 | Power | Battery | Li-ion battery ,7.4V /2600mAH |
35 | Charging Port | Type C USB Port ,5V DC,2A |
36 | Environment | Operating Temperature | -10°C to 50°C |
37 | Storage Temperature | -20°C to 70°C |
38 | Humidity | 5% to 95% Relative Humidity, Non-Condensing |
39 | Certification | Electromagnetic | CCC,CE,FCC |
40 | Payment | PCI PTS 4.X ,EMV L1&L2 |
41 | Optional | Fingerprint | Semiconductor capacitance |
42 | 14.4mm x 10.4mm imaging area |
43 | 208 x 288 pixel array, |
44 | Crossmatch FBI certified |
45 | Authentec,508dpi |
46 | Front camera | 2 Megapixel Fixed Focal Camera |
47 | Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies |
48 | Satellite Positioning | GLONASS, Bei-Dou satellite navigation system |
49 | Fiscal Module | Russian format |
※ Safedroid OS, Based on Android 7.0 or 5.1 OS
※ 5.5 inch TFT IPS LCD, resolution 1280*720
※ Built-in high speed thermal printer , with over 50Km print life
※ Full bands for global coverage: 4G/3G/2G,WLAN,VPN
※ Authentec,508dpi fingerprint module for biometric identification
※ Dual camera for quickly QR code scan & Honeywell 2D scanner as option
※ One-stop payment of MSR/IC/NFC, with PCI PTS 5.X, EMV L1&L2 certified
Main module:
Magcard reader,Smart Card reader,Contactless Card reader,Printer,Camera,Fingerprint,Barcode Scanner

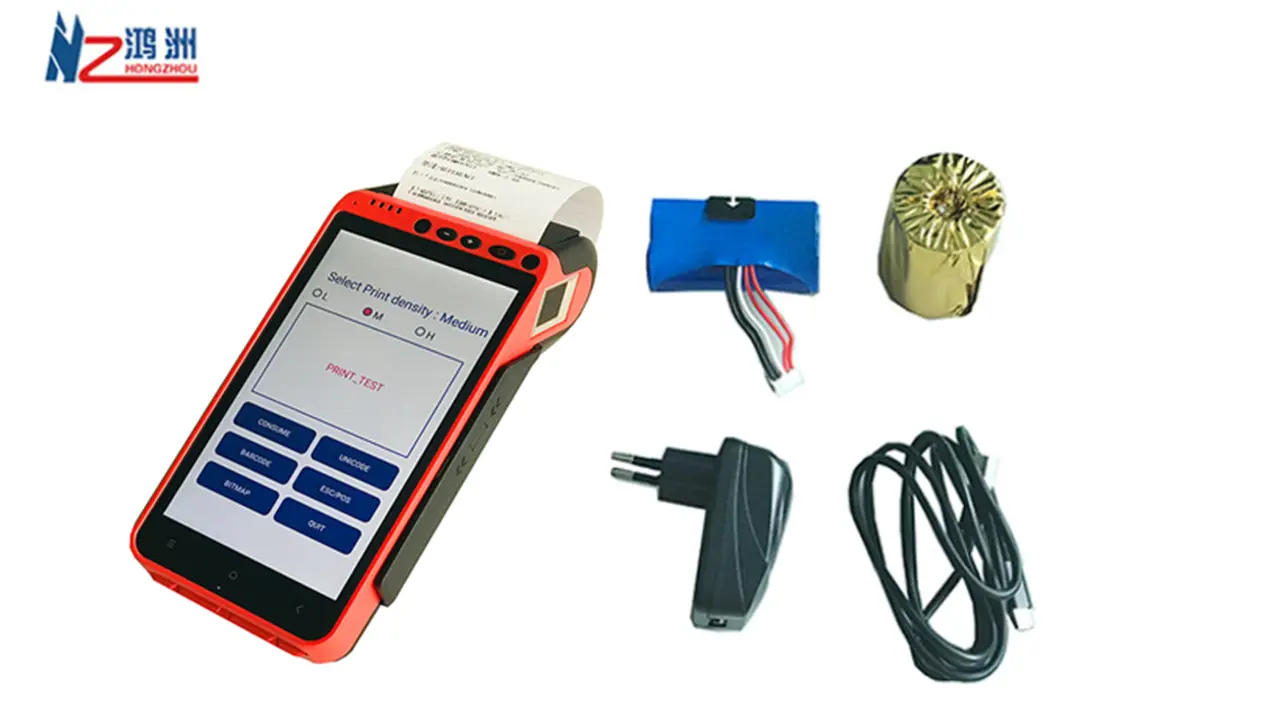

Accessories:
Type-C USB Cable, Battery, Charger Head, Printer Paper
Company Features1. Hongzhou Smart Tech Co.,Ltd has created a renowned brand with professionalism.
2. Hongzhou Smart Tech Co.,Ltd is a company that produces high quality products as its core business.
3. Hongzhou Smart Tech aims to create Hongzhou as the smart pos terminal industry's first brand. Inquire online! The value of our company can be expressed through our corporate philosophy. This philosophy is ' Focus on one thing, and do it well, really well.' Inquire online! Hongzhou Smart Tech Co.,Ltd aims to maintain high-speed and long-term improvement. Inquire online!
