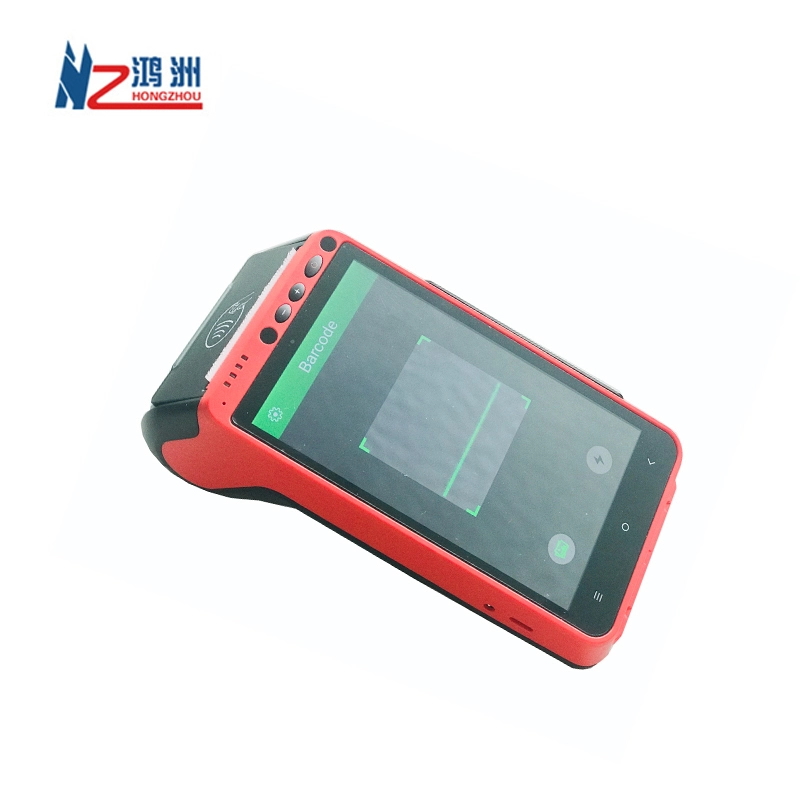

Portable Mobile Android Payment Smart POS Terminal With MSR/NFC/Contact IC Card

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: CS10

Model Number:: HZ-CS10-011

Product Name:: Portable Mobile Android Payment Smart POS Terminal

CPU:: Quad-Core 1.35GHZ

OS:: Safedroid OS (based on Android 7.0 or 5.1)

Display:: 5.5 inch TFT IPS LCD(1280*720)

Memory:: 8GB ROM+1G RAM( Support Memory expansion )

Certification:: CE FCC ROHS EMV PCI

Interface:: Type C USB Port ,5V DC,2A

Communication:: 4G/3G/2G/WIFI/Bluetooth

Application:: Shopping Mall,Supermarket,Chain Store,Restaurant,Hotel etc.

Supply Ability

Supply Ability:: 10000 Unit/Units per Month

Portable Mobile Android Payment Smart POS Terminal With MSR/NFC/Contact IC Card

Product Description

Specifications
Basic	OS	Safedroid OS (based on Android 7.0 or 5.1)
Characteristics	CPU	Quad-Core 1.35GHZ
	ROM	8GB ROM EMMC
	RAM	1G RAM LPDDR3
	Display	5.5 inch TFT IPS LCD,resolution 1280*720
	Panel	Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
	Dimensions	206mm84mm32mm
	Weight	560g(Battery included)
	Keys	3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
	Keys	3 Virtual keys:Menu,Home,Back
	Input	Chinese/English ,and supports handwriting and soft keyboard
Radio Communication	WIFI	IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ
	Bluetooth	BT 4.0 LE +EDR
	4G	TD-LTE:Band38, Band39, Band40, Band41
	4G	FDD-LTE:Band1,Band3,Band7,Band8,Band20
	3G	UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
		CDMA EV-DO Rev.A:800MHZ
		TD-SCDMA:Band34,Band39
	2G	GSM/GPRS/EDGE:850/900/1800/1900MHZ
Payment	Magcard reader	Supports ISO7811/7812/7813, and supports triple
	Magcard reader	track (tracks 1/2/3), bi-directional
	Smart Card reader	Supports ISO7816 standard
	Contactless Card reader	Supports 14443A / 14443B
Expansion and peripherals	Printer	High-Speed Thermal Printer ;
		58mm printing paper ;
		40mm paper roll
	Camera	5MP camera with LED flash and auto-focus function
	Satellite Positioning	GPS, GLONASS, Bei-Dou satellite navigation system, Supports A-GPS
	Audio	Speaker ,Microphone,Earphone
Interfaces	Micro SD Card Slot	1 PCS
	SIM Card Slot	2 PCS MICRO SIM
	PSAM Card Slot	2 PCS Conforms to ISO7816 standard
	USB Port	1PCS TYPE C USB
Power	Battery	Li-ion battery ,7.2V /2600mAH
Power	Charging Port	Type C USB Port ,5V DC,2A
Environment	Operating Temperature	-10°C to 50°C
	Storage Temperature	-20°C to 70°C
	Humidity	5% to 95% Relative Humidity, Non-Condensing
Certification	Electromagnetic	CE,ROHS
Optional	Fingerprint	Semiconductor capacitance
		14.4mm x 10.4mm imaging area
		208 x 288 pixel array,
		Crossmatch FBI certified
		Authentec,508dpi
	Front camera	2 Megapixel Fixed Focal Camera
	Barcode Scanner	Honeywell 2D Image Engine, Support 1D and 2D symbologies
	Fiscal Module	Russian format

Company Information

Functions

Detailed Images

Certifications

FAQ

Q1: What POS We provide?
A1: For financial/Commerce POS system, Wireless Handheld Cashless POS, Android POS,2G/3G/GPS/GPRS/Wi-Fi/Bluetooth POS, but NO Desktop Cash POS.
Q2: Does your company accept custom-made items?
A2: Yes, we can.We are a professional solution supplier for financial security & payment industry, we provide diffierent solutions and products for diffierent customers.
Q3: How is Our POS's Quality?
A3: EMV Level 1&2, PCI 3.0 & 4.0, CE/RoHS/PBOC 2.0/China UnionPay, CCC, and Network Access License and 100% test before shipment;
Q4: Do you Have Free SDK, Free Technical Support and After-sale Service?
A4: 1. Free SDK, Free Technical Support
2. 7 * 24-hour service hotline: 0755- 36869189; Online technical support by Email or Skype or Whatsapp;
3. Specialized process for repair or exchange of product required;
4. One Year QA warranty & Three Years After-sale Service Guarantee.
Q5: How About Your Shipping of POS?
A5: Delicate box with foam inside and shipping by air.
Q6: How Long is Your Lead Time?
A6: Within 1 for sample and within 45 for 500 to 5000 units after confirm payment.
Q7. How About Your POS Price?
A7: The more orders, the lower price.
Q8: How to Pay for our POS terminal?
A8: Payment: 50% pre-payment, the rest of 50% is honored before shippment by T/T and 100% T/T for a sample.

Any inquiry about Smart POS terminal HZ-CS10,please feel free to contact me.Thanks!!!

This product provided by Hongzhou has received much fame for its outstanding features. Its ADA compliant design ensures self-service access to users. The product will be served more and more customers for its high consistency in the industry. Its ADA compliant design ensures self-service access to users.
