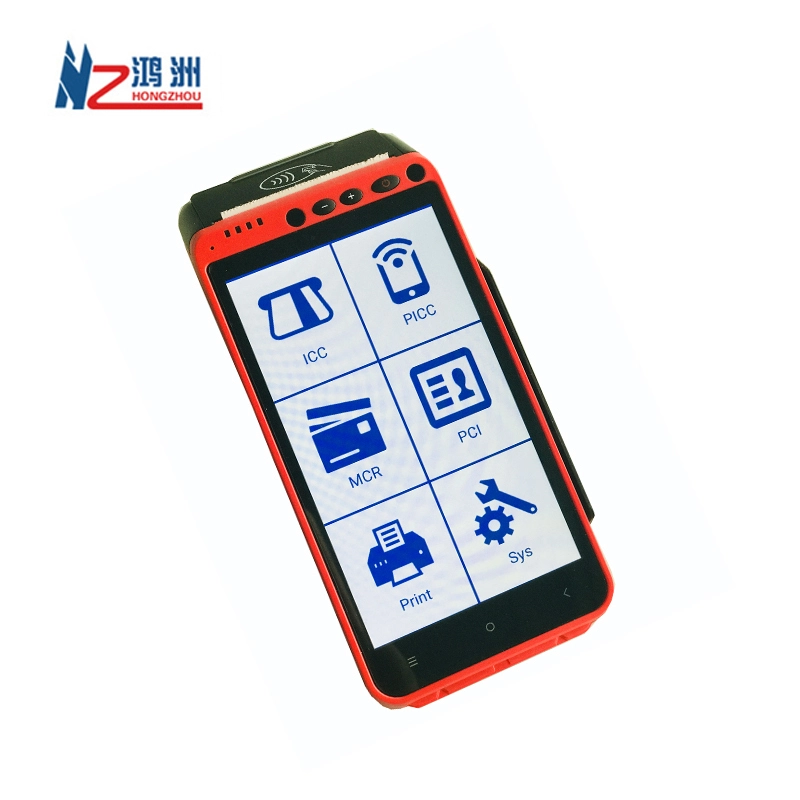

Custom made Portable Smart POS Terminal For Restaurant-Hongzhou

Related Products

Product Information
Customer Reviews

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: CS10

After-sales Service Provided:: Video technical support

Warranty:: 1 Year

Operation System:: Android 7.0

CPU:: Quad-Core 1.35GHZ, Quad-Core 1.35GHZ

Touch Screen Type:: Capacitive Screen

Hard Disk Capacity:: 8GB ROM+1G RAM

Product Name:: Custom made Portable Smart POS Terminal For Restaurant

OS:: Safedroid OS (based on Android 7.0 or 5.1)

Display:: 5.5 inch TFT IPS LCD(1280*720)

Memory:: 8GB ROM+1G RAM( Support Memory expansion )

Communication:: 4G/3G/2G/WIFI/Bluetooth

Interface:: Type C USB Port ,5V DC,2A

Certification:: CE FCC ROHS EMV PCI

Application:: Shopping Mall,Supermarket,Chain Store,Restaurant,Hotel etc.

Color:: Black/Red/Gray

Supply Ability

Supply Ability:: 10000 Unit/Units per Month

Custom made Portable Smart POS Terminal For Restaurant

Product Description

Specifications
Basic	OS	Safedroid OS (based on Android 7.0 or 5.1)
Characteristics	CPU	Quad-Core 1.35GHZ
	ROM	8GB ROM EMMC
	RAM	1G RAM LPDDR3
	Display	5.5 inch TFT IPS LCD,resolution 1280*720
	Panel	Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
	Dimensions	206mm84mm32mm
	Weight	560g(Battery included)
	Keys	3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
	Keys	3 Virtual keys:Menu,Home,Back
	Input	Chinese/English ,and supports handwriting and soft keyboard
Radio Communication	WIFI	IEEE 802.11 a/b/g/n , support dual Band 2.4GHZ and 5GHZ
	Bluetooth	BT 4.0 LE +EDR
	4G	TD-LTE:Band38, Band39, Band40, Band41
	4G	FDD-LTE:Band1,Band3,Band7,Band8,Band20
	3G	UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
		CDMA EV-DO Rev.A:800MHZ
		TD-SCDMA:Band34,Band39
	2G	GSM/GPRS/EDGE:850/900/1800/1900MHZ
Payment	Magcard reader	Supports ISO7811/7812/7813, and supports triple
	Magcard reader	track (tracks 1/2/3), bi-directional
	Smart Card reader	Supports ISO7816 standard
	Contactless Card reader	Supports 14443A / 14443B
Expansion and peripherals	Printer	High-Speed Thermal Printer ;
		58mm printing paper ;
		40mm paper roll
	Camera	5MP camera with LED flash and auto-focus function
	Satellite Positioning	GPS, GLONASS, Bei-Dou satellite navigation system, Supports A-GPS
	Audio	Speaker ,Microphone,Earphone
Interfaces	Micro SD Card Slot	1 PCS
	SIM Card Slot	2 PCS MICRO SIM
	PSAM Card Slot	2 PCS Conforms to ISO7816 standard
	USB Port	1PCS TYPE C USB
Power	Battery	Li-ion battery ,7.2V /2600mAH
Power	Charging Port	Type C USB Port ,5V DC,2A
Environment	Operating Temperature	-10°C to 50°C
	Storage Temperature	-20°C to 70°C
	Humidity	5% to 95% Relative Humidity, Non-Condensing
Certification	Electromagnetic	CE,ROHS
Optional	Fingerprint	Semiconductor capacitance
		14.4mm x 10.4mm imaging area
		208 x 288 pixel array,
		Crossmatch FBI certified
		Authentec,508dpi
	Front camera	2 Megapixel Fixed Focal Camera
	Barcode Scanner	Honeywell 2D Image Engine, Support 1D and 2D symbologies
	Fiscal Module	Russian format
