Free Standing Self Service Machine Interactive Hotel Check In QR reader Kiosk
Free Standing Self Service Machine Interactive Hotel Check In QR reader Kiosk
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HZ
Product Name:
check in kiosk for hotel
color:
OEM
Optional parts::
Barcode Reader
Touch Screen::
15/17/19/22"
Main components:
Touchscreen
Function:
Payment Terminal
Application:
Indoor
Printer:
58MM Thermal Printer
Cash Accepter:
1200 notes
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Video Description
Product Description

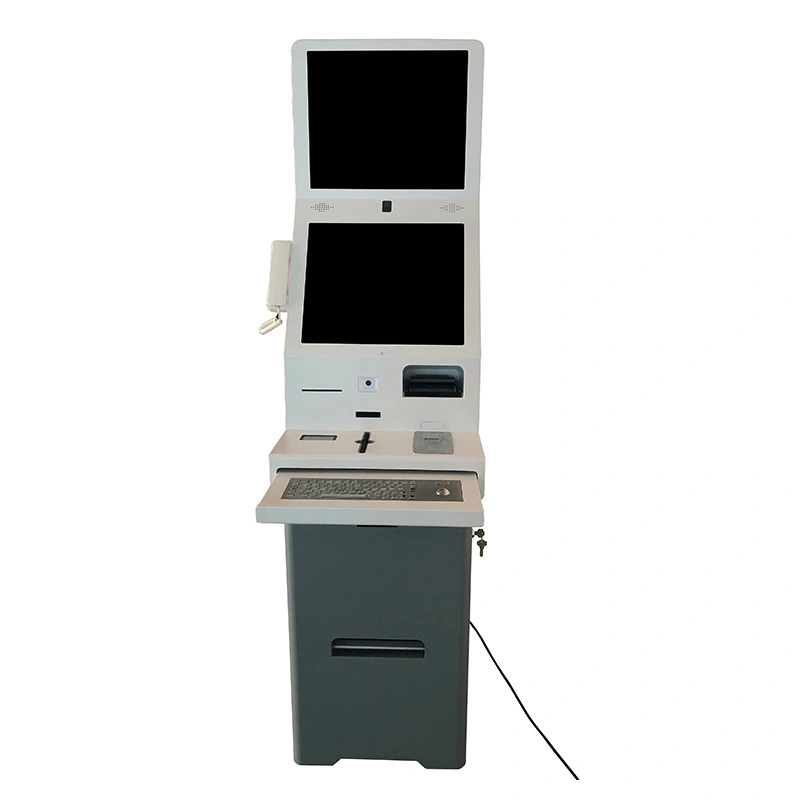

Floor stand 21.5 inch self service touch screen check in kiosk for hotel
Industrial PC System
Mother Board
Intel H81; Integrated Network card and Graphic card
CPU
Intel i3 4170
RAM
4GB
SSD
120G
Interface
14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
PC Power Supply
HUNTKEY 300W
Operation System
Windows 7/10(without license)
Display+Touch screen
Screen Size
19 inch
Pixel Number
1280*1024
Pixel pitch
250cd/m²
Contrast
1000∶1
Display Colors
16.7M
Viewing Angle
85°/85°/80°/80°
LED Life Time
Min. 30000hrs
Touch point number
10 point
Input mode
Finger or capacitor pen
Surface hardness
≥6H
Advertising Display
Screen Size
19 inch
Pixel Number
1280*1024
Brightness
250cd/m²
Contrast
1000∶1
Display Colors
16.7M
Viewing Angle
85°/85°/85°/85°
LED Life Time
Min. 30000hrs
Card dispenser
Support card type
Mifare 1,RF card ,ISO1443A,ISO15693 read and write and dispensed
Card size
L:85±0.5mm,W:54±0.5mm,T:07~1.0MM
Card recycling
Yes
Card box capacity
200 pcs (card thickness based on 0.76mm )
Card volume alarm:
less 10 pcs
A4 Size printer
Printer Method
Laser printer
Resolution
600*600dpi
Print speed
38 pages per minute
page box
250 pages
Power
AC 220-240V(±10%),50/60Hz(±2Hz),2A
Printer
Printer Method
Thermal printing
Print width
80mm
Speed
250mm/sec(Max)
Resolution
203dpi
Print length
100KM
Autocutter
included
Passport/Idcard/driving licence Reader
Imaging
Window Size: 127*96 mm
Sensor: CMOS 3Megapixel (2048*1536)
Resolution: 400 DPI
OCR processing
Passport, ID card, driving licence
ICAO Doc 9303 Compliance (Part1-4)
OCR processing: ≤1s
Trigger
Auto-trigger, and Auto-detected/classified travel document type
Cash acceptor and dispenser
Cash size
Accepts:Width: 60 - 85 mm,Length: 115 - 170 mm
Recycles:Width: 60 - 82 mm
Cash box capacity
1000 notes
Recycler Capacity
Up to 70 mixed notes
Protocols
SSP ccTalk
MCBF
100,000
Metal Keyboard
Panel
65 keys stainless steel panel mounting keyboard with trackball
Certification
CE, FCC, RoHS, ESD compliant
Protection level
Waterproof and Dustproof class: IP65 (front panel),Vandal resistant class: IK07
Lifespan
>2 million operations per key
QR code scaner
Image (Pixels)
640 pixels(H) x 480 pixel(V)
Light Source
Illumination: 6500K LED
Field of View
72°(H) x 64° (V)
Minimum Resolution:
≥3.9 mil
1-D
UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal,
Korean Postal
, etc
2-D
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Hanxin, etc.
Camera
Sensor type
1/2.7"CMOS
Array size
1928*1088
Pixel
3.0um*3.0um
Maximum image transfer rate
1080P 30FPS
AGC/AEC/Whiter balance
Auto
Microphone and Speaker, Handset Phone
Dual channel amplified speakers for Stereo , 8Ω 5W.
Swipe Card Reader
Provided by customer
LCD signature pad
Wifi and Bluetooth Connectivity
UPS
Input:220V, 1000VA,600W, Autonomy: 20 minutes
Power Supply
AC input voltage range
100‐240VAC
DC output voltage
24V
AC input voltage range
100‐240VAC
DC output voltage
12V
KIOSK Cabinet
Dimention
decided when finish production
Color
Optional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
3.Color and LOGO are upon customers' requests.
Accessories
Security Loc ,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
Assembling and testing
Packing
Security Packing Method with Bubble Foam and Wooden Case

Other Optional hardware components List of the payment kiosk is as following:

  1. Cash dispenser
  2. Coin dispenser
  3. Advertising screen
  4. Barcode scanner
  5. Passport reader
  6. Web camera
  7. NFC card reader
  8. Coin acceptor
.
Application Scenarios
Floor stand 21.5 inch self service touch screen check in kiosk for hotel:
Hotel;
Airport;
etc

Details Images
Mass production & Debugging
Our Products
Package Information
Company Profile
About Hongzhou Group
Hongzhou, ISO9001:2015 certified HI-Tech corporation, is a leading global self-service  Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing complete solution for self service Kiosks.
Hongzhou equipped with a series of leading precision sheet metal and CNC machine tool equipment , and modern self-service terminal electronic assembly lines.
Our products cover financial self-service kiosk, payment kiosk, retail ordering kiosk, ticketing / card issuing kiosk, multi-media terminals, ATM/ADM/CDM.
They are widely used in bank, securities, traffic, shopping mall, hotel, retail, communications, medicine & cinema etc.

Customer Visiting
These functions and features makes it ideal for application. The product is well suited to high-profile environments such as airport, hospital, and library. . The product has a potential prospect and keeps track with the market development. The product is well suited to high-profile environments such as airport, hospital, and library.
