15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

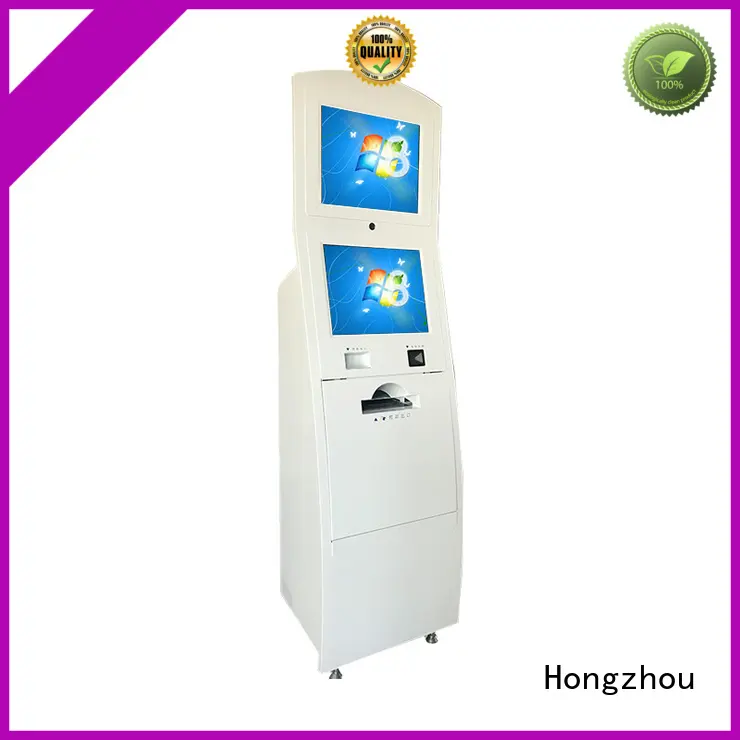

Hongzhou indoor interactive information kiosk receipt for sale 1

Hongzhou indoor interactive information kiosk receipt for sale 2

Hongzhou indoor interactive information kiosk receipt for sale 3

Hongzhou indoor interactive information kiosk receipt for sale 4

Hongzhou indoor interactive information kiosk receipt for sale

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. Hongzhou interactive information kiosk has passed performance tests and quality assurance tests in the phone accessory industry. It is certified under CCC, CE, UL, and GOST.
2. The product has the desired capabilities. It is developed with programs based upon the specifications of the part that defines what operation the product should perform.
3. This product has no major defects, i.e. dangerous or unsafe environment or non-compliance, including sharp points or edges, loose stitches left on clothing, loose nails or lack of suffocation warning labels.
4. It produces very little radiation and microwave, which has been proved by an authoritative third-party institution, which is also one of its biggest points why customers love it.
5. It has limited radio radiation which may cause headache and lapse of memory. The limited radio radiation has been proved by third-party authorities.

No.	Components	Brand/Model No.	Specification
1	Raspberry Pi 3	Model B+	Processor	Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
			Memory	1GB LPDDR2 SDRAM
			MicroSD card	16G
			Connectivity	2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps) 4 × USB 2.0 ports
			Access	Extended 40-pin GPIO header
			Video & sound	1 × full size HDMI MIPI DSI display port MIPI CSI camera port 4 pole stereo output and composite video port
2	Industrial PC	Industrial PC	Mother Board	M3
			CPU	RK3288
			RAM	4 core A17
			GPU	Mail-t764
			RAM	2+8G （4+16 optional)
			Interface	1LVDS, 4USB, 1OTG, 1RG45，4*COM
			DC Power Supply	12V5A
3	Advertising display	Auo 19"	Display size	19 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			Life Time	Min. 40000hrs
4	Display screen	Auo 19"	Display size	19 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			Life Time	Min. 40000hrs
5	Touch screen	19"	Display size	19 inch
			Pixel Number	capacitance
			Contact point	Multi finger
			Hardness	6H
			Min. Reprot	100points /second
			Oscillation frequency	12MHz
6	A4 printer	HP 403D	Printer mode	A4 Black and white laser printer
			Resolution	600x600dpi
			Interface type	USB2.0
			Enviromental parameter	Operating temperature：15-32.5°C, operating humidity：10-80％RH
			Paper box	Standard with 250, an increase of 550 into the carton.
			Supply voltage	AC 220-240V(±10％)，50/60Hz(±2Hz),2A
7	Receipt printer	MT532	Print method	Thermal printer
			Print span	80mm
			Printing speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
8	Qr code scanning	XN-202	Imaging sensor	960*640 COMS
			Can decode system	One-dimensional/two-dimensional
			The identification accuracy	Code 39 code 6.6mil
			Scanning speed	1300 time/second
			Recognition Angle range	Level 72° vertical 82° rotating 360°
10	Camera	C270i	The sensor	CMOS camera
			Camera resolution	3 million
			Interface type	usb2.0，Don't need to drive
			Focused mode	Auto Focus
			Other Parameter	Microphone built-in microphone, features snapshot button anti-theft function
11	4G Wireless broadband routing	B315s-936	Type of network	4G Unicom（TD-LTE/LTE FDD）/Telecom 4G（TD-LTE/LTE FDD） 3G network type： Unicom 3G（WCDMA
			Frequency range	4G network： LTE FDD B1 2100MHz/B3 1800MHz LTE TDD B40 2300MHz/B41 2600MHz 3G网络： DC-HSPA+/HSPA+/HSPA/UMTS：B1 2100MHz/B8 900MHz WLAN：2.4GHz
			Downloading speed	150Mbps
			Size	18613946mm
12	WIFI antenna		300Mbps Wireless transmission rate
13	Loudspeaker	OP‐100	Double channel stereo amplifier，8Ω5w。
14	Equipment cabinet	HZ	Size	According to actual function and effect diagram, accord with human body engineering
			Color	In line with aesthetic requirements, customers can choose that color
			1. The outer metal cabinet is made of a durable cold-rolled steel frame
			2. This design is beautiful and easy to install and operate.Moisture-proof, rust-proof, dustproof, no static electricity;
			3.The logo is based on customer requirements.
15	Accessory	Anti-theft lock, tray, easy to maintain, 2 fans, line LAN port;Power sockets, relays, USB ports, cables, screws, etc.
15	Accessory
16	Packaging	Bubble wrap with carton safe packing method.
16	Packaging	Bubble wrap with carton safe packing method.

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

Hongzhou indoor interactive information kiosk receipt for sale 5

Product details

Hongzhou indoor interactive information kiosk receipt for sale 6

Stable performance

Hongzhou indoor interactive information kiosk receipt for sale 7

High end appearance

Company Features
1. Over the years, we have gained a wealth of experience in the design and production of interactive information kiosk . We are well-accepted in the industry.
2. Our factory is located in a place where has industrial clusters and it enjoys production resource advantages. This directly helps the factory save costs in sourcing raw materials.
3. Through continuous improvement of corporate value, Hongzhou Smart Tech Co.,Ltd will realize the goal of tourist information kiosk . Ask online! Indeed, shopping mall information kiosk is a principle tenet of Hongzhou Smart Tech Co.,Ltd. Ask online! From establishment to development, Hongzhou Smart Tech Co.,Ltd always takes the principle of electronic information kiosk . Ask online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
