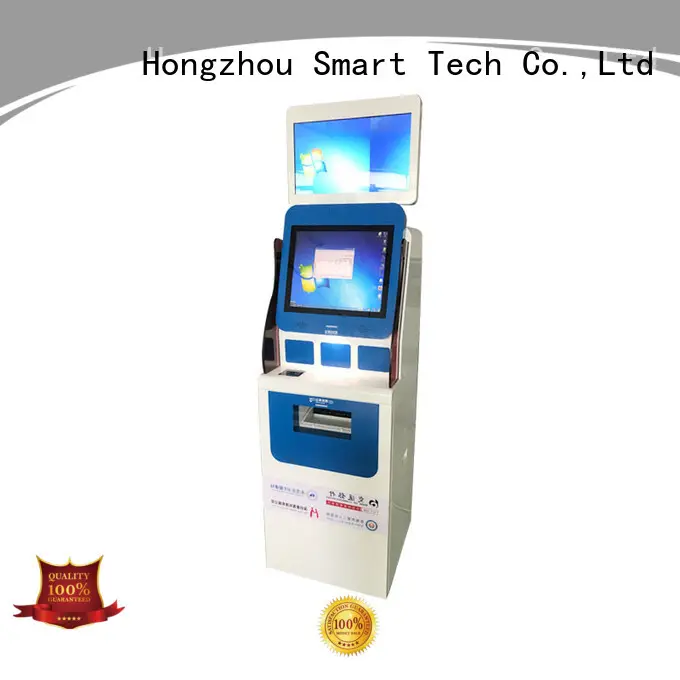

Company Advantages1. Hongzhou patient self check in kiosk is finely processed by our experience production team using the latest advanced equipment. It is available in a variety of finishes and colors to enhance any self-service venue
2. This product provides substantial savings in energy consumption and electricity bills. People can set assure to use it as often as they can. It provides a high-end display that engages users at a glance
3. On account of its moisture absorption and sweat releasing property and softness, users will remain cozy and comfy for the whole night. The product has optional LED lighting to add interest and visibility
4. This product can be printed with any information. It provides a clear space for printing necessary and readable information, such as key features, advantages, and raw materials. The product is well suited to high-profile environments such as airport, hospital, and library
5. This product attracts attention with its excellent heat dissipation performance. With built-in latest cooling system, it has sufficient airflow for long-term work. The advertising materials can be used on this product for the greatest consumer impact
Components List |
No. | Components | Brand / Model | Main Specifications |
1 | Industrial PC System | Industrial PC | Mother Board | Advantech 683 G2 |
CPU | I3 4130 |
RAM | 8GB |
HDD | 120G |
Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; |
PC Power Supply | ATX power supply |
2 | Operation System |
| Windows 7(without license) |
3 | Display | 19" | Screen Size | 19 inch |
Pixel data | 1280x1024 |
Brightness | 350cd/m2 |
Contrast | 1000∶1 |
Display Color | 16.7M |
Angle | 85°/85°/80°/80° |
Lifetime | Min. 40000hrs |
4 | Touch Screen | 19" | Screen Size | 19 inch |
Touch technology | capacitance |
First catch | Multi-finger |
Hardness | 6H |
Min.Reprot | 100points /second |
Oscillation frequency | 12MHz |
5 | Advertising screen | 21.5" | Screen size | 21.5 inch((with tempered glass panel)) |
Pixel | 1920*1080 |
Brightness | 250cd/m2 |
Contrast | 3000∶1 |
Display Colors | 16.7M |
Lifetime | Min. 40000hrs |
6 | A4/A5 printer | HP 1020 | Printer mode | A4 laser printer |
Printing speed | 14PPM |
Monthly print load | 5000 sheet |
Resolution ratio | 600*600dpi |
Paper in box | 150 sheet |
7 | Second ID card reader | IDM-10 | Standard specification | ISO/IEC 14443 TYPE B standard,include GA 450-2013 ID card reader |
Read card response rate | <1S |
Reading distance | 0-30mm |
Working | 13.56MHz |
Interface | USB , RS232 |
8 | Timing switch | HY-DS01 | Function | Support one key shutdown, timing switch machine, remote switch machine control function. |
9 | Qr code scanning | XN-202 | Recognition mode | COMS |
Resolution ratio | 300 000 |
Read code system 1D | UPC/EAN with supplementals,Bookland EAN,ISSN,UCC Coupon Extended Code,Code 128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCII,Trioptic Code 39,Code 32,Code 93,Code 11,Matrix 2 of 5,interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,GSI DataBar Variants,Korean 3 of 5,ISBT Concat etc. |
Read code system 2D | PDF417,MicroPDF417,Composite Codes,TLC-39,Data Matrix,Maxicode,QR code,MicroQR,Azt etc. |
Light sourc | LED (630nm ± 10nm) |
10 | Switch | LRS-75-24 | Input voltage | 100‐240VAC |
Output voltage | 24V |
LRS-150-12 | Input voltage | 100‐240VAC |
output voltage | 12V |
11 | Speaker | kinter | Dual channel amplifier stereo,8Ω5w. |
12 | Cabinet | HZ | Size | According to actual function and effect diagram, accord with human engineering. |
Color | In line with the aesthetic requirements, customers can choose that color |
1. The outer metal cabinet is made of a durable cold-rolled steel frame. |
2. The design is beautiful and easy to install and operate;Moisture-proof, rust-proof, dustproof, no static electricity; |
3.The logo is based on customer requirements. |
13 | Accessory | Anti-theft lock, tray, easy to maintain, 2 fan, line LAN port;Power socket, relay, USB port, cable, screw, etc. |
|
|
|
|
|
14 | Assembly | |
|
|
|
|
15 | Package | Bubble foam and safe packing method for cartons. |
|
|
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
Beauty appearance, high quality
Easy operation with multi- function
Company Features1. We are blessed with a group of staff that are qualified and well-trained. They have deep knowledge and expertise about products, which enables them to adapt themselves to different situations or customers' requirements.
2. We think highly of ethical standards. Under this principle, we always do fair trade, refuse to manipulate or falsely advertise to our customers or potential consumers, as well as vicious business competition such as bidding up the price.
