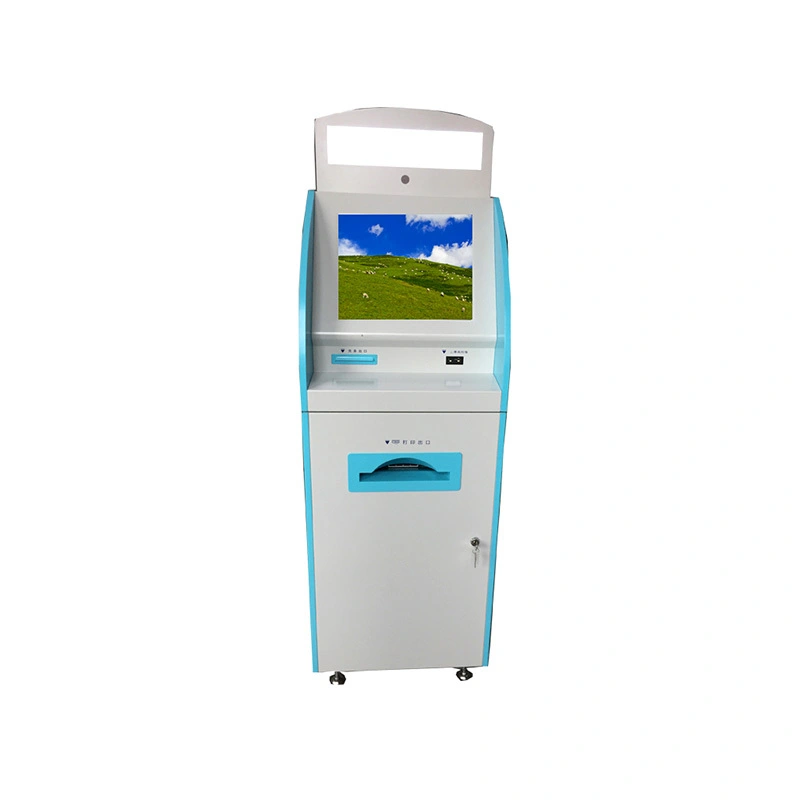

Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 1
Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 2
Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 3
Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 1
Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 2
Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 3

Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board

    oops...!

    no product data.

    Go to homepage
     Components List
    No.ComponentsBrand / ModelMain Specifications
    1Industrial PC SystemIndustrial PCMother BoardIntel H81; Integrated Network card and Graphic card
    CPUIntel I3 4130
    RAM4GB
    HDD120G
    Interface14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
    PC Power SupplyHUNTKEY400W
    2Operation System
    Windows 7(without license)
    3Display21.5"Screen Size21.5 inch
    Pixel Number1920*1080
    Brightness250cd/m2
    Contrast1000∶1
    Display Colors16.7M
    Viewing Angle 178(H), 178(V)
    LED Life Time Min. 40000hrs
    4Touch Screen21.5"Screen Diagonal19 inch
    Touch technologycapacitance
    Touch PointsMulti-finger
    Glass Hardness6H
    Min.Reprot Rate100points /sec
    Operation Conditions12MHz
    5Card ReaderM100-CCard typeSupport magnetic card read only, IC card read and write, RF card read and write,
    Protocol standard Suit ISO07810 7811 standard,EMV、7816,S50/S70、ID card
    Card inMagnetic signal, photoelectric signal, backward card
    Stop screensMulti-stop card
    Head lifeNot less than 1 million
    6Password keyboardKMY3501BPanel4*4 16 key stainless steel panel
    Encryption algorithmSupport DES and TDES encryption, decryption algorithm, PIN encryption, MAC operation
    Level of protectionDustproof, waterproof, anti-riot, shockproof, anti-drilling, anti-pry
    CertificationThrough CE, FCC, ROHS certification, through the people's bank of China bank card testing center testing
    7

    Second generation

     ID card reader

    IDM10 or INVS300Standard specification It meets the ISO/IEC 14443 TYPE B standard and the general technical requirements for id card reading from GA 450-2013
    Card reading response speed<1S
    Reading distance0-30mm
    Working frequency 13.56MHz
    Data interface USB , RS232
    8PrinterMT532Printer MethodThermal printing
    Print width80mm
    Speed250mm/sec(Max)
    Resolution203dpi
    Print length100KM
    Autocutterincluded
    9Qr code scanning7160N or Honeywell CM3680Barcode 1-D

    UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar,

    China Postal, Korean Postal, etc.

    Two-dimensional bar codePDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
    Voltage5VDC
    Interface supportUSB , RS232
    The light sourceIllumination: 6500K LED
    10

    Health card/social security

     card reader simulation mode,

     social security docking

    M100-DRead the card typeSupport magnetic card read only, IC card read and write, RF card read and write,
    Protocol standardConform to ISO07810 7811 standard, EMV, 7816, S50/S70, ID card
    Way into the cardMagnetic signal, photoelectric signal, backward card
    Stop screensMulti-stop card
    Head lifeNot less than 1 million
    11A4  printerJINGCI 2135DPrinter modeA4 black and white laser printer
    The resolution of theAs high as 600 x600dpi
    The printing speed35 pages per minute
    Into the cartonStandard 250 paper cartons
    The power supply voltageAC 220-240V(±10%),50/60Hz(±2Hz),
    12SpeakerkinterDual channel amplified speakers for Stereo , 8Ω 5W.
    13KIOSK Cabinet  HongzhouDimentiondecided when finish production
    ColorOptional by customer
    1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
    2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
    3.Color and LOGO  are upon customers' requests.
    14AccessoriesSecurity Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port;  Power sockets for electricity,  USB ports;Cables, Screws, etc.
    15PackingSecurity Packing Method with Bubble Foam and Wooden Case


    Product features


    ※  Innovative & smart design, elegant looking, anti-corrosion power coating

    ※  Ergonomically and compact structure, user friendly, easy for maintenance

    ※  Anti-vandalism, dust-proof, high safety performance

    ※  Rugged steel frame and overtime running, high precision, high stability & reliability

    ※  Cost-effective, customer-oriented design, the applicable environmental

    ※  Multifunction for payment, print and inquiry

    Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 4


    Product details


    Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 5
    Stable performance
    Touch screen internet patient self check in kiosk for line up in hospital with coin operated and metal key board 6
    High end appearance
