15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

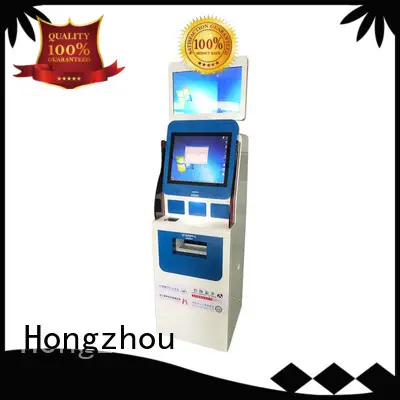

Hongzhou patient self check in kiosk factory for patient 1

Hongzhou patient self check in kiosk factory for patient 2

Hongzhou patient self check in kiosk factory for patient 3

Hongzhou patient self check in kiosk factory for patient 4

Hongzhou patient self check in kiosk factory for patient

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. Our material for patient self check in kiosk is different from other companies' material and it's better.
2. A strict quality check on different quality parameters has been carried out throughout the whole production to ensure the product is completely defect-free and has good performance.
3. Every aspect of the product is strictly tested to meet international quality standards.
4. Getting a quality projector screen is equally as important as getting a good projector. A professional one will definitely optimize one's viewing experience.
5. Shopping for this garment is a treat, and one of the fastest and easiest ways to give a person a whole new look.

Components List
No.	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Advantech 683 G2
			CPU	I3 4130
			RAM	8GB
			HDD	120G
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	ATX power supply
2	Operation System		Windows 7(without license)
3	Display	19"	Screen Size	19 inch
			Pixel data	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Color	16.7M
			Angle	85°/85°/80°/80°
			Lifetime	Min. 40000hrs
4	Touch Screen	19"	Screen Size	19 inch
			Touch technology	capacitance
			First catch	Multi-finger
			Hardness	6H
			Min.Reprot	100points /second
			Oscillation frequency	12MHz
5	Advertising screen	21.5"	Screen size	21.5 inch（(with tempered glass panel)）
			Pixel	1920*1080
			Brightness	250cd/m2
			Contrast	3000∶1
			Display Colors	16.7M
			Lifetime	Min. 40000hrs
6	A4/A5 printer	HP 1020	Printer mode	A4 laser printer
			Printing speed	14PPM
			Monthly print load	5000 sheet
			Resolution ratio	600*600dpi
			Paper in box	150 sheet
7	Second ID card reader	IDM-10	Standard specification	ISO/IEC 14443 TYPE B standard，include GA 450-2013 ID card reader
			Read card response rate	<1S
			Reading distance	0-30mm
			Working	13.56MHz
			Interface	USB , RS232
8	Timing switch	HY-DS01	Function	Support one key shutdown, timing switch machine, remote switch machine control function.
9	Qr code scanning	XN-202	Recognition mode	COMS
			Resolution ratio	300 000
			Read code system 1D	UPC/EAN with supplementals,Bookland EAN,ISSN,UCC Coupon Extended Code,Code 128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCII,Trioptic Code 39,Code 32,Code 93,Code 11,Matrix 2 of 5,interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,GSI DataBar Variants,Korean 3 of 5,ISBT Concat etc.
			Read code system 2D	PDF417,MicroPDF417,Composite Codes,TLC-39,Data Matrix,Maxicode,QR code,MicroQR,Azt etc.
			Light sourc	LED (630nm ± 10nm)
10	Switch	LRS-75-24	Input voltage	100‐240VAC
		LRS-75-24	Output voltage	24V
		LRS-150-12	Input voltage	100‐240VAC
		LRS-150-12	output voltage	12V
11	Speaker	kinter	Dual channel amplifier stereo，8Ω5w.
12	Cabinet	HZ	Size	According to actual function and effect diagram, accord with human engineering.
			Color	In line with the aesthetic requirements, customers can choose that color
			1. The outer metal cabinet is made of a durable cold-rolled steel frame.
			2. The design is beautiful and easy to install and operate;Moisture-proof, rust-proof, dustproof, no static electricity;
			3.The logo is based on customer requirements.
13	Accessory	Anti-theft lock, tray, easy to maintain, 2 fan, line LAN port;Power socket, relay, USB port, cable, screw, etc.





14	Assembly




15	Package	Bubble foam and safe packing method for cartons.

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

Hongzhou patient self check in kiosk factory for patient 5

Product details

Hongzhou patient self check in kiosk factory for patient 6

Beauty appearance, high quality

Hongzhou patient self check in kiosk factory for patient 7

Easy operation with multi- function

Company Features
1. Hongzhou Smart Tech Co.,Ltd is one of the key enterprises producing medical kiosk manufacturers in China.
2. We have both developed the domestic and international markets. Our broad business partners or clients, especially those in Australia, America, and Europe, have helped us seize numerous chances to achieve better business results.
3. Good service contributes to the reputation of Hongzhou in the industry. Welcome to visit our factory! Hongzhou Smart Tech Co.,Ltd's mission is to provide innovative patient self check in kiosk designed to exceed customer expectations. Welcome to visit our factory!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
