15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

Hongzhou smart smart pos company in hospital 1

Hongzhou smart smart pos company in hospital 2

Hongzhou smart smart pos company in hospital 3

Hongzhou smart smart pos company in hospital 4

Hongzhou smart smart pos company in hospital

Weight:

0.8kg

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton

MOQ:

1-10000PCS

Dimensions/Thickness/Color:

21CM*16CM*8CM

Delivery time:

3-6 days for sample,7-15 days for mass production

Certifications:

PCI,EMV

Inquiry

Company Advantages
1. The raw materials of Hongzhou smart pos are procured from some of the most trustworthy and certified vendors in the industry.
2. The product is not prone to electrical problems. Its highly-integrated electrical components and insulating materials can effectively help avoid electrical hazards such as static electricity and current leakage.
3. Customer service in Hongzhou is highly stressed.

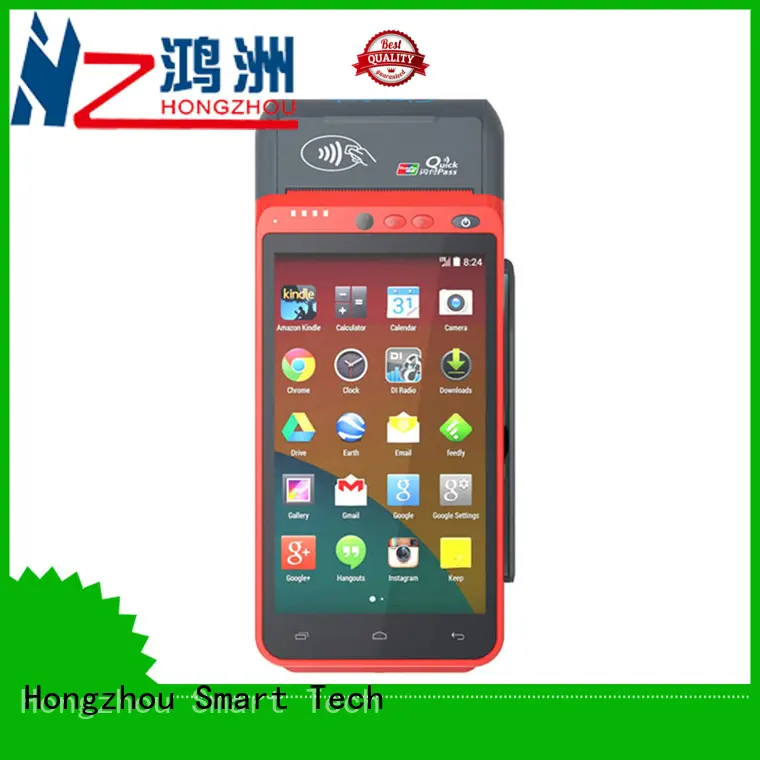

Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.

Ø Safedroid OS, Based on Android 5.1 or 7.0 O/S;
Ø 5.5 inch TFT IPS LCD, resolution 1280*720
Ø Built-in high speed thermal printer , with over 50Km print life
Ø Full bands for global coverage: 4G/3G/2G,WLAN,VPN
Ø Authentec,508dpi fingerprint module for biometric identification
Ø Dual camera for quickly QR code scan & Honeywell 2D scanner as option
Ø One-stop payment of MSR/IC/NFC, with PCI PTS 4.X, EMV L1&L2 certified

DEMO SHOW: https://youtu.be/EnVZUunmeMk

No.	Basic Module		Main Specifications
1	Basic Characteristics	OS	Safe android OS (based on Android 5.1 or 7.0 O/S)
2		CPU	Quad-Core 1.35GHZ
3		ROM	8GB ROM EMMC
4		RAM	1G RAM LPDDR3
5		Display	5.5 inch TFT IPS LCD,resolution 1280*720
6		Panel	Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
7		Dimensions	206mmX84mmX32mm (max 56mm)
8		Weight	530g(Battery included)
9		Keys	3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
10		Keys	3 Virtual keys:Menu,Home,Back
11		Input	Chinese/English ,and supports handwriting and soft keyboard
12	Radio Communication	WIFI	IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ
13		Bluetooth	BT 4.0 LE +EDR
14		4G	TD-LTE:Band38, Band39, Band40, Band41
15		4G	FDD-LTE:Band1,Band3,Band7,Band8,Band20
16		3G	UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
17			CDMA EV-DO Rev.A:800MHZ
18			TD-SCDMA:Band34,Band39
19		2G	GSM/GPRS/EDGE:850/900/1800/1900MHZ
20	Payment	Magcard reader	Supports ISO7811/7812/7813, and supports triple
21		Magcard reader	track (tracks 1/2/3), bi-directional
22		Smart Card reader	Supports ISO7816 standard
23		Contactless Card reader	Supports 14443A / 14443B
24	Expansion and peripherals	Printer	High-Speed Thermal Printer ;
25			58mm printing paper ;
26			40mm paper roll
27		Camera	5MP camera with LED flash and auto-focus function
28		Satellite Positioning	GPS, Supports A-GPS
29		Audio	Speaker ,Microphone,Earphone
30	Interfaces	Micro SD Card Slot	1 PCS
31		SIM Card Slot	2 PCS MICRO SIM
32		PSAM Card Slot	2 PCS Conforms to ISO7816 standard
33		USB Port	1PCS TYPE C USB
34	Power	Battery	Li-ion battery ,7.4V /2600mAH
35	Power	Charging Port	Type C USB Port ,5V DC,2A
36	Environment	Operating Temperature	-10°C to 50°C
37		Storage Temperature	-20°C to 70°C
38		Humidity	5% to 95% Relative Humidity, Non-Condensing
39	Certification	Electromagnetic	CCC,CE,FCC
40	Certification	Payment	PCI PTS 4.X ,EMV L1&L2
41	Optional	Fingerprint	Semiconductor capacitance
42			14.4mm x 10.4mm imaging area
43			208 x 288 pixel array,
44			Crossmatch FBI certified
45			Authentec,508dpi
46		Front camera	2 Megapixel Fixed Focal Camera
47		Barcode Scanner	Honeywell 2D Image Engine, Support 1D and 2D symbologies
48		Satellite Positioning	GLONASS, Bei-Dou satellite navigation system
49		Fiscal Module	Russian format

Product features

※ Safedroid OS, Based on Android 7.0 or 5.1 OS

※ 5.5 inch TFT IPS LCD, resolution 1280*720

※ Built-in high speed thermal printer , with over 50Km print life

※ Full bands for global coverage: 4G/3G/2G,WLAN,VPN

※ Authentec,508dpi fingerprint module for biometric identification

※ Dual camera for quickly QR code scan & Honeywell 2D scanner as option

※ One-stop payment of MSR/IC/NFC, with PCI PTS 5.X, EMV L1&L2 certified

Hongzhou smart smart pos company in hospital 5

Product details

Hongzhou smart smart pos company in hospital 6

Main module：

Magcard reader,Smart Card reader,Contactless Card reader,Printer,Camera,Fingerprint,Barcode Scanner

Hongzhou smart smart pos company in hospital 7

Accessories:

Type-C USB Cable, Battery, Charger Head, Printer Paper

Company Features
1. Hongzhou Smart Tech Co.,Ltd is a leading manufacturer with highly advanced technology and maturely design crafts.
2. With our expertise in marketing and sales, we create a unique mix of products across the world. This makes us be a strong and important partner striving to compete and expand geographically.
3. Being a responsible member of the global community has been woven into all aspects of our company culture. Our team works collaboratively with organizations to build awareness of environmental concerns and enhance environmental performance. Our high quality smart pos will meet the different requirements of our customers. Inquiry! Responsibility is the principle of any long-term business relationship. We are committed to achieving perfectionism within our responsibility. We promise to work closely with customers to solve any problem in the most cost- and time-efficient manner. Hongzhou Smart Tech Co.,Ltd constantly optimize the management and service system to promote better development. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

Android POS with printer handheld Pos Terminal smart POS PDA

Durable 5.7 Inch Android 10.0 Smart POS Terminal

5.5 Inch Android 7.0 touch screen Smart POS With Card reader

Smart Pos Terminal/Pos System/HZ-CS10 Touch Screen All In One Pos

Android Smart Pos with Thermal Printer and Fingerprint

Hongzhou Smart, a member of Hongzhou Group, we are ISO9001, ISO13485, ISO14001, IATF16949 certified and UL approved corporation.
