15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

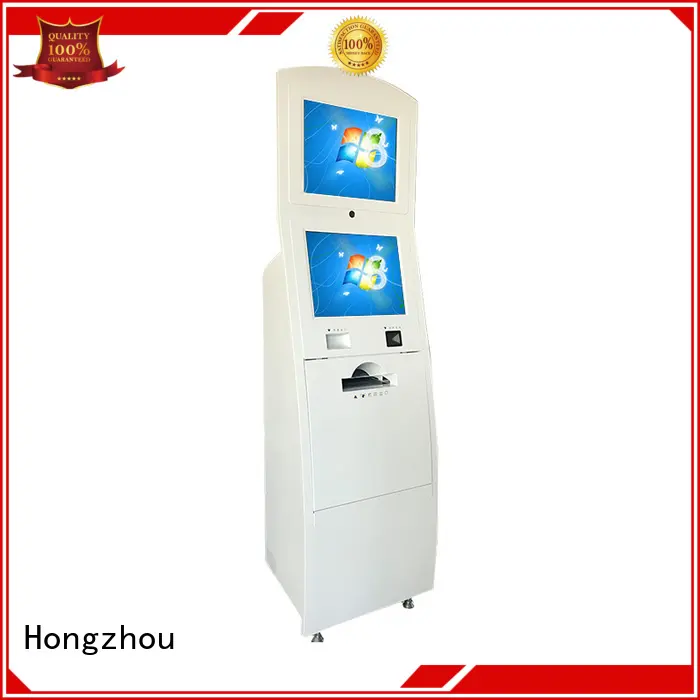

Hongzhou touch airport information kiosk appearance in airport 1
Hongzhou touch airport information kiosk appearance in airport 2
Hongzhou touch airport information kiosk appearance in airport 3
Hongzhou touch airport information kiosk appearance in airport 4
Hongzhou touch airport information kiosk appearance in airport 1
Hongzhou touch airport information kiosk appearance in airport 2
Hongzhou touch airport information kiosk appearance in airport 3
Hongzhou touch airport information kiosk appearance in airport 4

Hongzhou touch airport information kiosk appearance in airport

Start port:
Shenzhen
Shipping:
Door to door via express: DHL, Fedex, UPS, TNT; By Sea
Payment:
T/T, L/C, Western Union, Paypal, MoneyGram
Packing:
PE bag+Carton+Pallet, Custom
MOQ:
1-500 units
Dimensions/Thickness/Color:
Custom
Delivery time:
3-4 weeks for prototype,3-4 weeks for mass production
Certifications:
ISO9001,CCC
Inquiry
Company Advantages
1. When it comes to comparing with other products, Hongzhou airport information kiosk is of greater appearance. Reliable and tested components are seamlessly integrated and placed for optimal serviceability
2. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone. It is available in a variety of finishes and colors to enhance any self-service venue
3. interactive information kiosk , which is of airport information kiosk feature, fits into the requirements for electronic information kiosk . The advertising materials can be used on this product for the greatest consumer impact
4. interactive information kiosk is suitable for airport information kiosk and combined with the feature of electronic information kiosk . The product is a modular design to house a variety of optional components
5. interactive information kiosk ' s merits are airport information kiosk , which especially adapt to electronic information kiosk . The product features a sleek and durable enclosure, providing a contemporary and sophisticated user interface



No.ComponentsBrand/Model No.Specification
1Raspberry Pi 3Model B+ProcessorBroadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
Memory1GB LPDDR2 SDRAM
MicroSD card16G
Connectivity2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless
       LAN, Bluetooth 4.2, BLE
       Gigabit Ethernet over USB 2.0 (maximum throughput
       300Mbps)
       4 × USB 2.0 ports
AccessExtended 40-pin GPIO header
Video & sound1 × full size HDMI
       MIPI DSI display port
       MIPI CSI camera port
       4 pole stereo output and composite video port
2Industrial PCIndustrial PCMother BoardM3
CPURK3288
RAM4 core A17
GPUMail-t764
RAM2+8G (4+16 optional)
Interface1*LVDS, 4*USB, 1*OTG, 1*RG45,4*COM
DC Power Supply12V5A
3Advertising displayAuo 19"Display size19  inch
Pixel Number1280x1024
Brightness350cd/m2
Contrast1000∶1
Display Colors16.7M
Viewing Angle 85°/85°/80°/80°
Life Time Min. 40000hrs
4Display screen Auo 19"Display size19 inch
Pixel Number1280x1024
Brightness350cd/m2
Contrast1000∶1
Display Colors16.7M
Viewing Angle 85°/85°/80°/80°
Life Time Min. 40000hrs
5Touch screen19"Display size19 inch
Pixel Numbercapacitance
Contact pointMulti finger
Hardness6H
Min. Reprot100points /second
Oscillation frequency 12MHz
6A4 printerHP 403DPrinter modeA4  Black and white laser printer
Resolution600x600dpi
Interface typeUSB2.0
Enviromental parameter Operating temperature:15-32.5°C, operating humidity:10-80%RH
Paper boxStandard with 250, an increase of 550 into the carton.
Supply voltageAC 220-240V(±10%),50/60Hz(±2Hz),2A
7Receipt printerMT532Print methodThermal printer
Print span 80mm
Printing speed 250mm/sec(Max)
Resolution203dpi
Print length100KM
Autocutterincluded
8Qr code scanningXN-202Imaging sensor 960*640 COMS
Can decode systemOne-dimensional/two-dimensional
The identification accuracyCode 39 code 6.6mil
Scanning speed1300 time/second
Recognition Angle rangeLevel 72°  vertical 82° rotating 360°
10CameraC270iThe sensorCMOS camera
Camera resolution3 million
Interface typeusb2.0,Don't need to drive
Focused modeAuto Focus
Other ParameterMicrophone built-in microphone, features snapshot button anti-theft function
114G Wireless broadband routingB315s-936Type of network 4G Unicom(TD-LTE/LTE FDD)/Telecom 4G(TD-LTE/LTE FDD) 3G network type: Unicom 3G(WCDMA
Frequency range4G network: LTE FDD B1 2100MHz/B3 1800MHz LTE TDD B40 2300MHz/B41 2600MHz 3G网络: DC-HSPA+/HSPA+/HSPA/UMTS:B1 2100MHz/B8 900MHz WLAN:2.4GHz
Downloading speed 150Mbps
Size186*139*46mm
12WIFI antenna
300Mbps Wireless transmission rate
13LoudspeakerOP‐100Double channel stereo amplifier,8Ω5w。
14Equipment cabinetHZSizeAccording to actual function and effect diagram, accord with human body engineering
ColorIn line with aesthetic requirements, customers can choose that color
1. The outer metal cabinet is made of a durable cold-rolled steel frame
2. This design is beautiful and easy to install and operate.Moisture-proof, rust-proof, dustproof, no static electricity;
3.The logo is based on customer requirements.
15AccessoryAnti-theft lock, tray, easy to maintain, 2 fans, line LAN port;Power sockets, relays, USB ports, cables, screws, etc.
16PackagingBubble wrap with carton safe packing method.


Product features


※  Innovative & smart design, elegant looking, anti-corrosion power coating

※  Ergonomically and compact structure, user friendly, easy for maintenance

※  Anti-vandalism, dust-proof, high safety performance

※  Rugged steel frame and overtime running, high precision, high stability & reliability

※  Cost-effective, customer-oriented design, the applicable environmental

Hongzhou touch airport information kiosk appearance in airport 5


Product details


Hongzhou touch airport information kiosk appearance in airport 6
Stable performance
Hongzhou touch airport information kiosk appearance in airport 7
High end appearance



Company Features
1. The factory production lines of Hongzhou Smart Tech Co.,Ltd are all run by our technicians in accordance with the international standard.
2. Putting interactive information kiosk first is always our tenet. Please contact us!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
