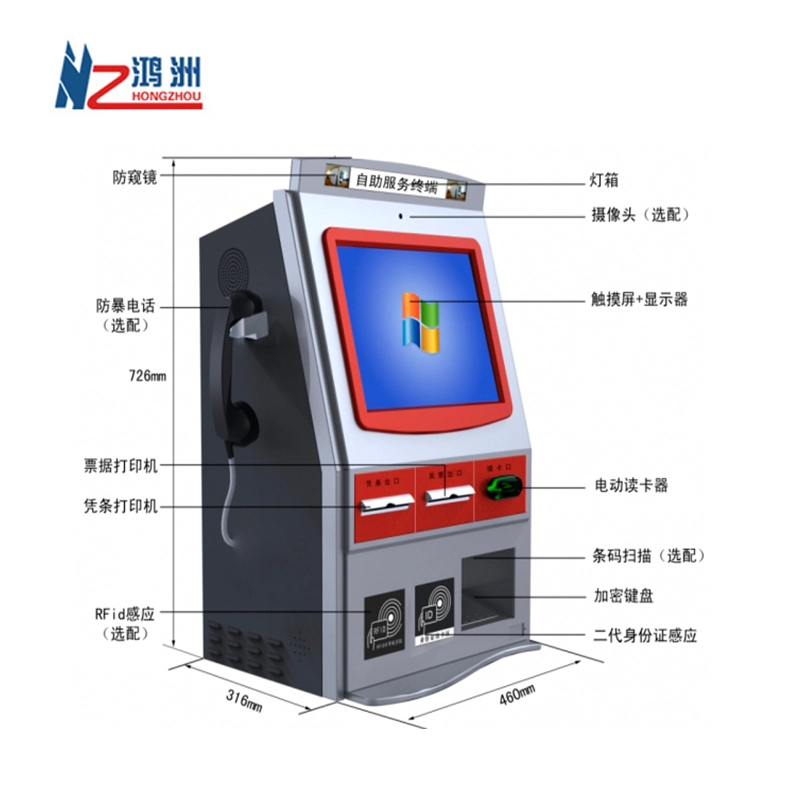

Manufacturer Price Interactive Touch Screen Wall Mounted Payment Kiosk
| No.1 | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Baytrail; Integrated Network card and Graphic card |
| CPU | Intel J1900 | |||
| RAM | 4GB | |||
| HDD | 1000G | |||
| Interface | 8*USB, 6*COM,1*VGA,2*LAN,1*AUDIO, 1*LPT, 1*PS/2 | |||
| PC Power Supply | llano(12V5A) | |||
| 2 | Operation System | Windows 7(without license) | ||
| 3 | Display | Auo | Screen Size | 19 inch |
| Pixel Number | 1440X900 | |||
| Brightness | 350cd/m2 | |||
| Contrast | 1000:1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| LED Life Time | Min. 40000hrs | |||
| 4 | Touch Screen | EG19 | Screen Diagonal | 19inch |
| Touch technology | Capacitive | |||
| Touch Points | Multi-finger | |||
| Glass Hardness | 6H | |||
| Min.Reprot Rate | 100points/sec | |||
| Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH | |||
| 9 | Printer | Epson-MT532 | Printer Method | Thermal printing |
| Print width | 80mm | |||
| Speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 8 | Speaker | OP-100 | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 9 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
| 10 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. | ||
| 11 | Packing | Security Packing Method with Bubble Foam and Wooden Case | ||
