| No. | Components | Brand/Model No. | Specification | |
| 1 | Raspberry Pi 3 | Model B+ | Processor | Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz |
| Memory | 1GB LPDDR2 SDRAM | |||
| MicroSD card | 16G | |||
| Connectivity | 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps) 4 × USB 2.0 ports | |||
| Access | Extended 40-pin GPIO header | |||
| Video & sound | 1 × full size HDMI MIPI DSI display port MIPI CSI camera port 4 pole stereo output and composite video port | |||
| 2 | Industrial PC | Industrial PC | Mother Board | M3 |
| CPU | RK3288 | |||
| RAM | 4 core A17 | |||
| GPU | Mail-t764 | |||
| RAM | 2+8G （4+16 optional) | |||
| Interface | 1*LVDS, 4*USB, 1*OTG, 1*RG45，4*COM | |||
| DC Power Supply | 12V5A | |||
| 3 | Advertising display | Auo 19" | Display size | 19 inch |
| Pixel Number | 1280x1024 | |||
| Brightness | 350cd/m2 | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| Life Time | Min. 40000hrs | |||
| 4 | Display screen | Auo 19" | Display size | 19 inch |
| Pixel Number | 1280x1024 | |||
| Brightness | 350cd/m2 | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| Life Time | Min. 40000hrs | |||
| 5 | Touch screen | 19" | Display size | 19 inch |
| Pixel Number | capacitance | |||
| Contact point | Multi finger | |||
| Hardness | 6H | |||
| Min. Reprot | 100points /second | |||
| Oscillation frequency | 12MHz | |||
| 6 | A4 printer | HP 403D | Printer mode | A4 Black and white laser printer |
| Resolution | 600x600dpi | |||
| Interface type | USB2.0 | |||
| Enviromental parameter | Operating temperature：15-32.5°C, operating humidity：10-80％RH | |||
| Paper box | Standard with 250, an increase of 550 into the carton. | |||
| Supply voltage | AC 220-240V(±10％)，50/60Hz(±2Hz),2A | |||
| 7 | Receipt printer | MT532 | Print method | Thermal printer |
| Print span | 80mm | |||
| Printing speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 8 | Qr code scanning | XN-202 | Imaging sensor | 960*640 COMS |
| Can decode system | One-dimensional/two-dimensional | |||
| The identification accuracy | Code 39 code 6.6mil | |||
| Scanning speed | 1300 time/second | |||
| Recognition Angle range | Level 72° vertical 82° rotating 360° | |||
| 10 | Camera | C270i | The sensor | CMOS camera |
| Camera resolution | 3 million | |||
| Interface type | usb2.0，Don't need to drive | |||
| Focused mode | Auto Focus | |||
| Other Parameter | Microphone built-in microphone, features snapshot button anti-theft function | |||
| 11 | 4G Wireless broadband routing | B315s-936 | Type of network | 4G Unicom（TD-LTE/LTE FDD）/Telecom 4G（TD-LTE/LTE FDD） 3G network type： Unicom 3G（WCDMA |
| Frequency range | 4G network： LTE FDD B1 2100MHz/B3 1800MHz LTE TDD B40 2300MHz/B41 2600MHz 3G网络： DC-HSPA+/HSPA+/HSPA/UMTS：B1 2100MHz/B8 900MHz WLAN：2.4GHz | |||
| Downloading speed | 150Mbps | |||
| Size | 186*139*46mm | |||
| 12 | WIFI antenna | 300Mbps Wireless transmission rate | ||
| 13 | Loudspeaker | OP‐100 | Double channel stereo amplifier，8Ω5w。 | |
| 14 | Equipment cabinet | HZ | Size | According to actual function and effect diagram, accord with human body engineering |
| Color | In line with aesthetic requirements, customers can choose that color | |||
| 1. The outer metal cabinet is made of a durable cold-rolled steel frame | ||||
| 2. This design is beautiful and easy to install and operate.Moisture-proof, rust-proof, dustproof, no static electricity; | ||||
| 3.The logo is based on customer requirements. | ||||
| 15 | Accessory | Anti-theft lock, tray, easy to maintain, 2 fans, line LAN port;Power sockets, relays, USB ports, cables, screws, etc. | ||
| 16 | Packaging | Bubble wrap with carton safe packing method. | ||

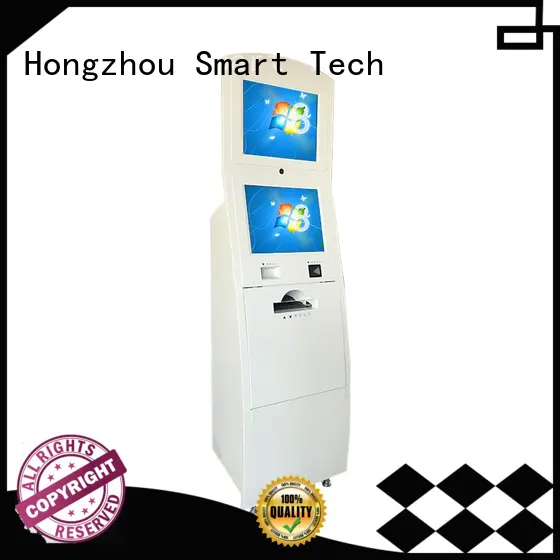

Product features
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
