X86 Industrial Motherboard UITX-J1900TE-6CD8 with Mini ITX Independent CPU
Intel® Baytrail Series CPU, 8GB DDR3, supports Mini PCIE SSD, Mini PCIE WIFI+Bluetooth, 2/6 COM optional
Specification List
|
Model No. |
UITX-J1900TE-6CD8 |
|
Category |
X86 Motherboard |
|
Chipset |
Intel® SOC |
|
CPU |
Support Intel Baytrail Processor |
|
GPU |
Intel CPU Built in Graphics display |
|
Display output |
VGA、LVDS、HDMI |
|
Multi Display |
VGA+HDMI/VGA+LVDS/HDMI+LVDS VGA+HDMI+LVDS |
|
USB |
1*USB3.0 6*USB2.0(5*USB2.0 |
|
Memory |
1*SO-DIMM，DDR3L 8GB |
|
Audio |
Onboard Realtek ALC662HD |
|
Network |
1/2*Realtek RTL8111F |
|
Storage |
1*SATA2.0 1*MSATA |
|
WIFI |
2*MINI-PCIE(for WIFI ) |
|
COM |
2/6*COM（1*485 ）(Option: 2*COM) |
|
Rear I/O |
1*USB3.0 |
|
Internal I/O |
3*F-USB2.0 PIN（Support 5*USB2.0） |
|
BIOS |
AMI BIOS |
|
Power supply |
DC 12V Power Supply |
|
Cooling |
Fanless |
|
Operating |
-10~60℃; 0% ~ 95% |
|
Size |
170X170MM |

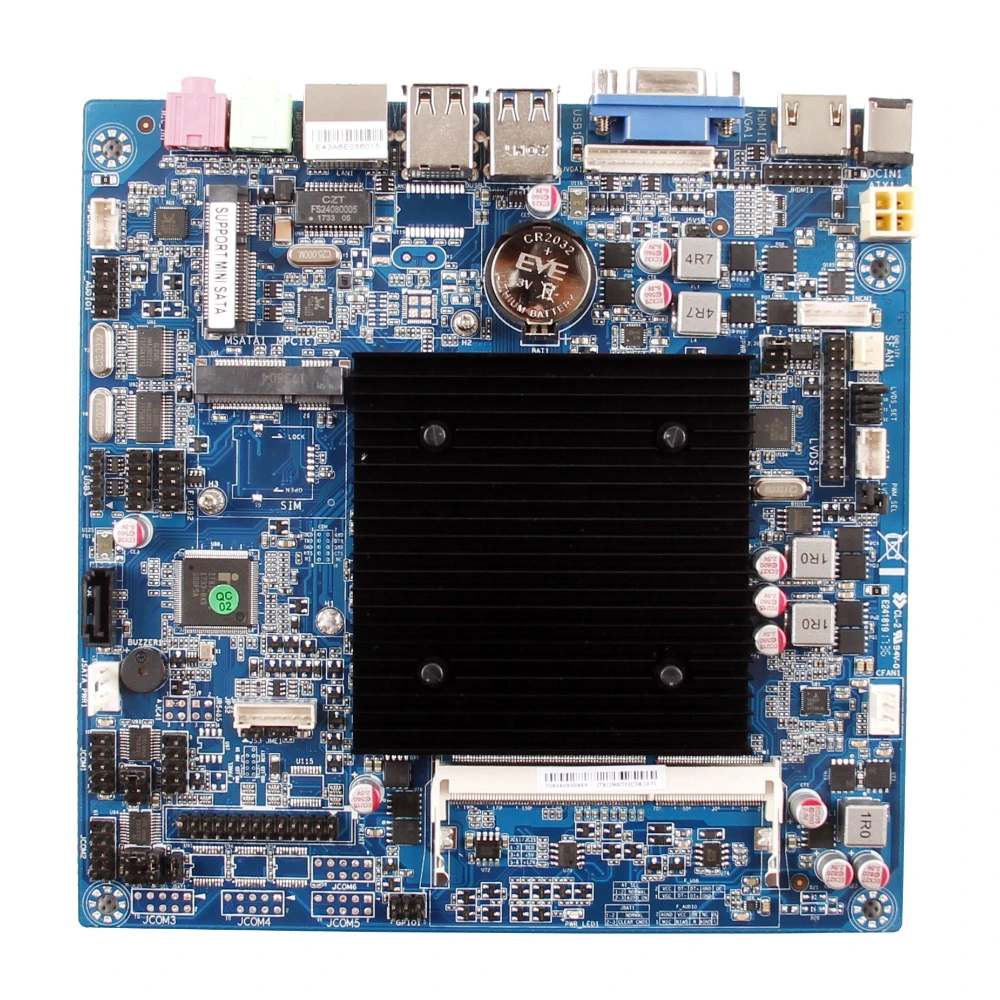

The Mini-ITX UITX-J1900TE-6CD8 motherboard is a fanless compacted board support Intel Baytrail Series CPU. It supports max. 8GB DDR3, multi screen including HDMI，VGA，LVDS and mini PCIE SSD. With Dual LAN and 6 USB extension, the board can be used in applications like Digital Sinage, Advertising machine, AIO, Multi-media etc.
We has a world-class industrial motherboard production workshop. we adopt dust-free workshops to test every index of the products to ensure the precision and efficiency of the products, so as to provide customers with the highest quality and reliable industrial computer motherboards.
