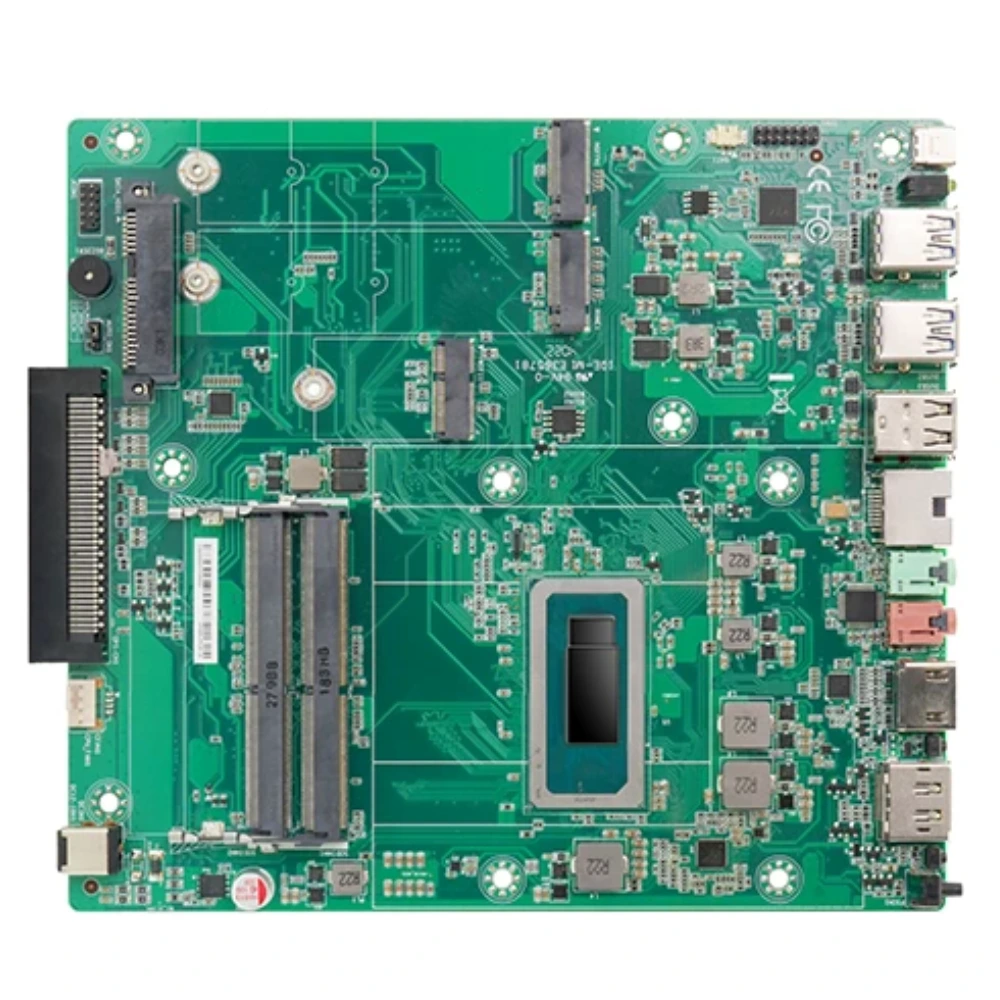

X86 Industrial Motherboard URPLPT-6C2L with Mini ITX Independent CPU
Intel®SOC chipset with Raptor Lake & Alder Lake Processor optional, 64GB DDR 4, with 4 USB and 6 COMs, supports 4G/5G module and 4 synchrony/asynchrony display.
Specification List
|
Model No. |
URPLPT-6C2L |
|
Category |
X86 Motherboard |
|
Chipset |
Intel® SOC |
|
CPU |
Intel®Raptor Lake & Alder Lake Processor |
|
GPU |
Intel® Iris® Xe Graphics Card |
|
Display output |
LVDS/EDP1+EDP2+HDMI+VGA |
|
Multi Display |
Four displays synchronously and asynchronously |
|
USB |
2*USB3.2 Gen2（10Gbps Optional1*type-C) |
|
Memory |
2*SO-DIMM DDR4 3200MHz Max64GB |
|
Audio |
Onboard ALC897 audio decoding controller, |
|
LAN |
Onboard 1*RTL8111H Gigabit network card |
|
Storage |
1*M.2 M Key ; |
|
Expansion |
1*M.2 E Key ，Support Wifi6/Bluetooth module |
|
I/O chip |
IT8786E |
|
Rear I/O interface |
1*DC_IN port |
|
Internal I/O Pins |
1*Speaker pin |
|
BIOS |
AMI BIOS |
|
Power supply |
DC/4Pin ATX 12~19V |
|
Cooling |
With fan |
|
Operating environment |
Working: 0~60℃; Storage: -20℃~75℃ |
|
Size |
170X170MM |
URPLPT-6C2L motherboard has rich functional interfaces and is compatible with 4 kinds of display screens. With stronger performance Intel® Raptor Lake & Alder Lake (U/P series) 12th Gen i3/i5/i7 processor, bigger RAM of max. 64GB each channel of SO-DIMM, faster speed and compatibility with multi-functional interfaces such as Type-C, 2*USB3.2, 2*USB3.1, 7*USB2.0, 6*COM4G/5G module expansion etc , it is your best choice in human-computer interaction, intelligent terminals and industrial control projects. Mainly used in finance, retail, medical care, integrated machine, advertising machine, industrial computer and other fields.
We has a world-class industrial motherboard production workshop. we adopt dust-free workshops to test every index of the products to ensure the precision and efficiency of the products, so as to provide customers with the highest quality and reliable industrial computer motherboards.
