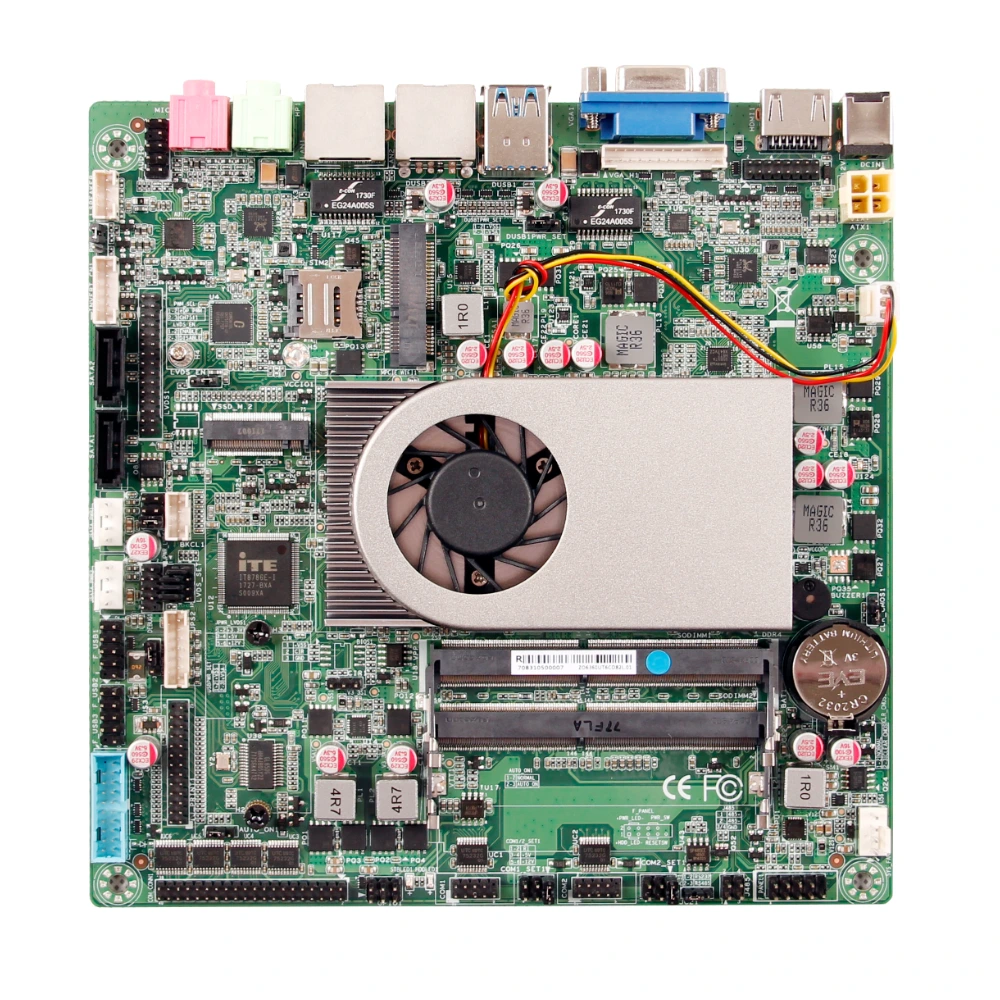

X86 Industrial Motherboard USKYUT-6CD8 with Mini ITX Independent CPU

Model No.

USKYUT-6CD8

Category

X86 Motherboard

Chipset

Intel® SOC

CPU

Intel® 6th Skylake-U /7th
Kabylake-U processor

GPU

Intel® Graphics

Display output

VGA 、HDMI/EPD2、LVDS/EDP1

Multi Display

Support Three Display
(synchronous/asynchronous display)

USB

6*USB2.0 4*USB3.0(Base CPU Only
support 3*U3)

Memory

2*SO-DIMM DDR4 2133MHz Max32GB

Audio

Onboard Realtek
Built in Power amplifier output 3W@4Ω；
1.7W@8Ω max

Network

RTL8106E 100M(Options: 1000M/ 2LAN)

Storage

1*SATA 3.0,
1*M.2 Key M, Support PCIe/SATA
SSD self- adaption

Expansion Slot

1*Mini_PCIe(Support WIFI+Bluetooth /4G)1*SIM

WIFI

2*MINI-PCIE(for WIFI )

COM

2/6*COM（1*485 ）(Option: 2*COM)

Rear I/O interface

2*USB3.0

2*USB2.0（or LAN2）

1*VGA

1*HDMI（either-or EDP2）

1*LAN1  1*DC

1*MIC-IN

1*LINE-OUT

1*CLR_CMOS

Internal I/O Pins

1*ATX PIN

1*DEP2 PIN（According to your options）

1*VGA PIN

1*F_AUDIO PIN

1*SPEAKER PIN

1*LVDS/EDP1 PIN

1*SATA3.0 PIN

1*SATA_PWR PIN

1*DEBUG PIN

Storage

1*M.2 Key M, Support PCIe/SATA

SSD self- adaption

1*PS/2 PIN

2*USB2.0（Support 4*USB2.0）

1*USB3.0（Support 2*USB3.0）

6*COM232 PIN

1*RS485 PIN（either-or COM2）

1*F-PANEL PIN

1*GPIO PIN（4GPIO）

2*FAN PIN

1* 4 PIN ATX Socket

BIOS

AMI BIOS

Power supply

DC 12V/ATX Power Supply

Cooling system

Comes with CPU Fan

Operating environment

Temperature: 0~60℃(working);
-20~75℃(Storage)
Humidity: 0% ~ 95% Relative Humidity,
Non-condensing

Size

170X170MM
