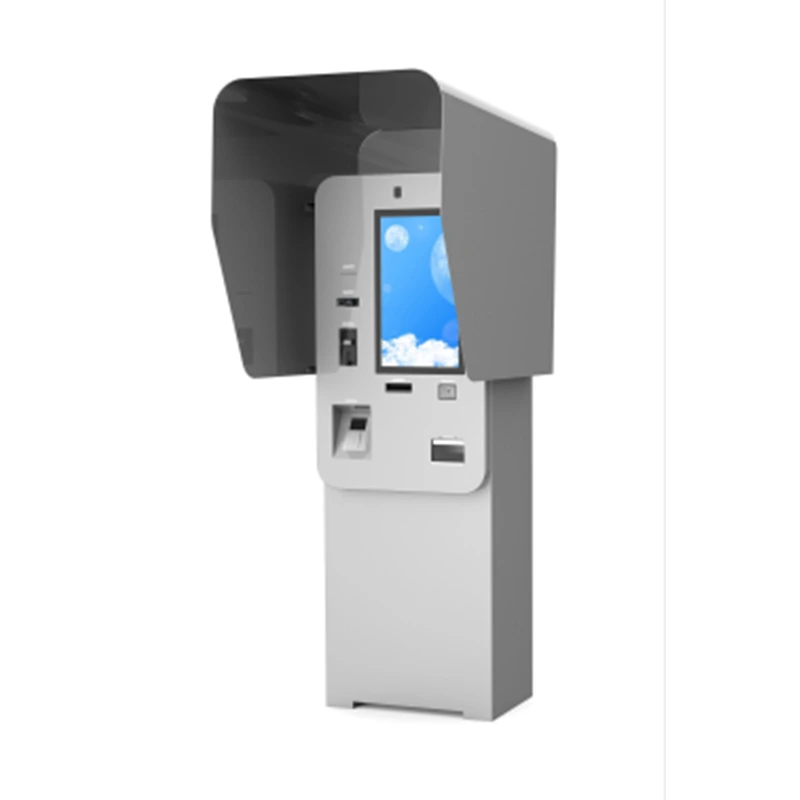

Bill Payment Kiosk for Parking Lot Pay Station
The complete parking pay station Kiosk has been designed and developed on the basis of our more than10-year experience in processing various tickets within toll stations and public transport.
.jpg)

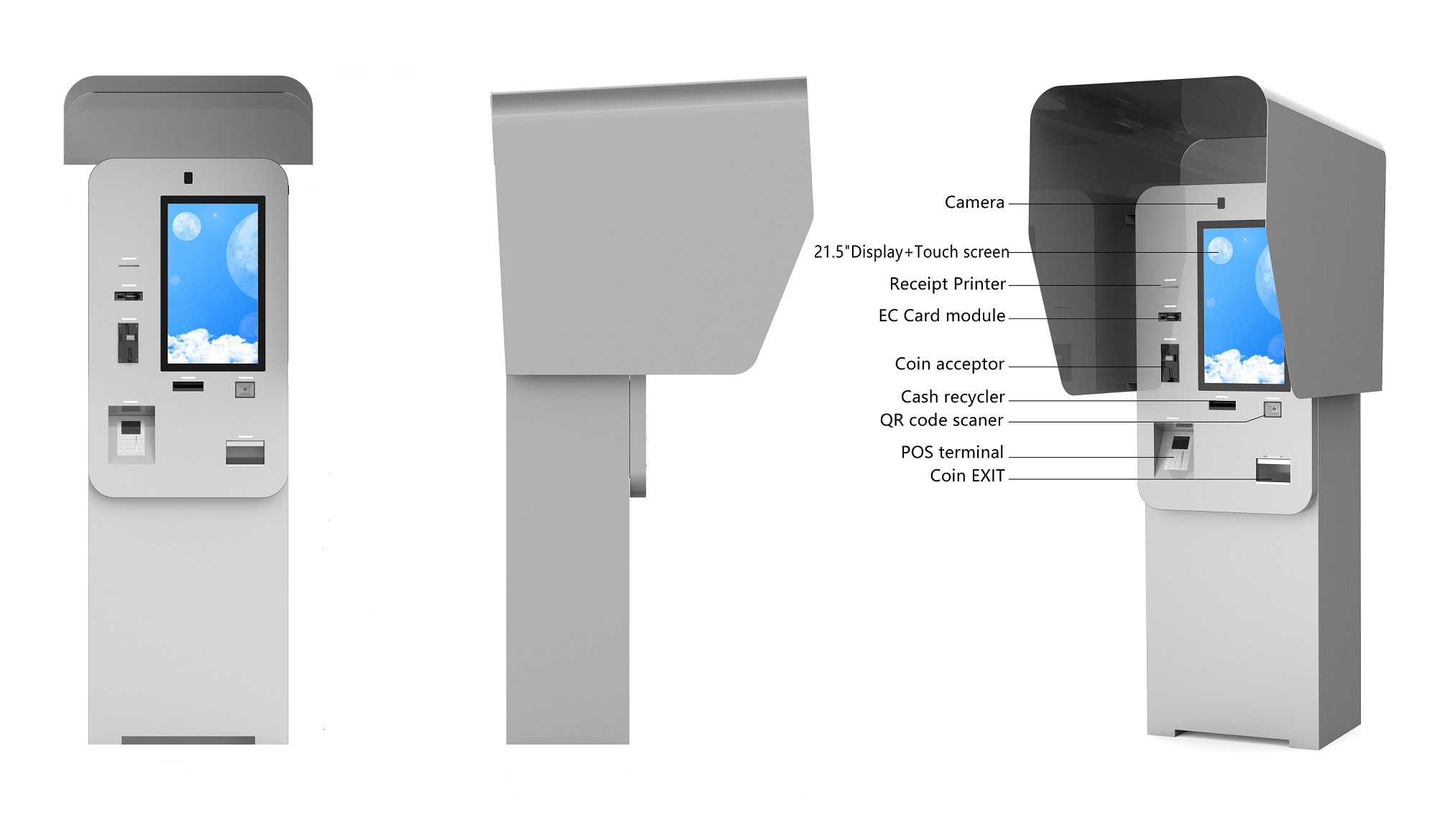

Parking Pay Station kiosk firmware reference:
| No. | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
| CPU | Intel i3 4170 | |||
| RAM | 8GB | |||
| HDD | 500G | |||
| Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | |||
| PC Power Supply | GW-FLX300M 300W | |||
| 2 | Operation System | Windows 7/10 （without license） | ||
| 3 | Display+Touch screen | 21.5" | Screen Size | 21.5 inch |
| Pixel Number | 1920*1080 | |||
| Pixel pitch | 250cd/m² | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 89°/89°/89°/89° | |||
| LED Life Time | Min. 30000hrs | |||
| Touch point number | 10 point | |||
| Input mode | Finger or capacitor pen | |||
| Surface hardness | ≥6H | |||
| 4 | Cash recycler | Cash size | Accepts:Width: 60 - 85 mm,Length: 115 - 170 mm | |
| Recycles:Width: 60 - 82 mm | ||||
| Cash box capacity | 1000 notes | |||
| Recycler Capacity | Up to 80 mixed notes | |||
| Protocols | SSP ccTalk | |||
| MCBF | 100,000 | |||
| 5 | Coin acceptor | High security: | Highest coin validation security using the unique MFT Multi-Frequency Technology | |
| Simultaneous evaluation of 24 measurement parameters for 32 coin channels | ||||
| Flexibility: | Teach function for up to 8 coins/tokens as standard | |||
| Inhibit of single coins or coin groups via DIL swit | ||||
| 6 | Coin dispenser | Coin dimensions | diameter 15-29.5mm | |
| Thickness 1.00–3.50mm (0.039” –0.138”) | ||||
| Coin Capacity | 1000 pcs | |||
| Coin Payout Rate | 8-10 coins per second | |||
| Voltage | 24V | |||
| 7 | QR code scaner | Image (Pixels) | 640 pixels(H) x 480 pixel(V) | |
| Light Source | LED | |||
| Field of View | 68°(H) x 51° (V) | |||
| Minimum Resolution: | 5 mil | |||
| 1-D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc | |||
| 2-D | PDF417, QR Code, DataMatrix, etc | |||
| 8 | Receipt Printer | Receipt Printer Method | Thermal printing | |
| Print width | 58mm (432dots/line) | |||
| Speed | 200mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 9 | Power Supply | LRS-150-24 | AC input voltage range | 100‐240VAC |
| DC output voltage | 24V | |||
| LRS-150-12 | AC input voltage range | 100‐240VAC | ||
| DC output voltage | 12V | |||
| 10 | Camera | XH3519-3238-LED | Sensor type | 1/2.7"CMOS |
| Array size | 1928*1088 | |||
| Pixel | 3.0um*3.0um | |||
| Maximum image transfer rate | 1080P 30FPS | |||
| AGC/AEC/Whiter balance | Auto | |||
| 11 | POS terminal | Provided by customer | ||
| 12 | LED light | Provide 8-way 5V dual-color lamp output 4-way 12V output, interface RS232 | ||
| 13 | Speaker | HZ | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 14 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
We can design different Parking Pay Station kiosk hardware with RFID Card Dispenser to fit your Ticket Parking Management System,it will improved speed and quality of service,help the operationer to reduction of staff costs.
As a market leader in custom design kiosks, Hongzhou Smart provides a proven kiosk turnkey solution portfolio in the full range of self-service vertical. From mainstream applications for Restaurant,Hospital,Hotel,Retail,Parking,Government and Financial,HR,Airport,Communication Services to “off the charts” custom platforms in emerging markets such as Bitcoin,Currency Exchange,Bike Sharing, Hongzhou Smart is highly experienced and have a success in virtually every self-service market.Hongzhou Smart kiosk experience has consistently stood for quality, reliability and innovation.
Our array of specialized service characteristics：
– Sleek and beautiful self-service kiosk design (indoor and outdoor)

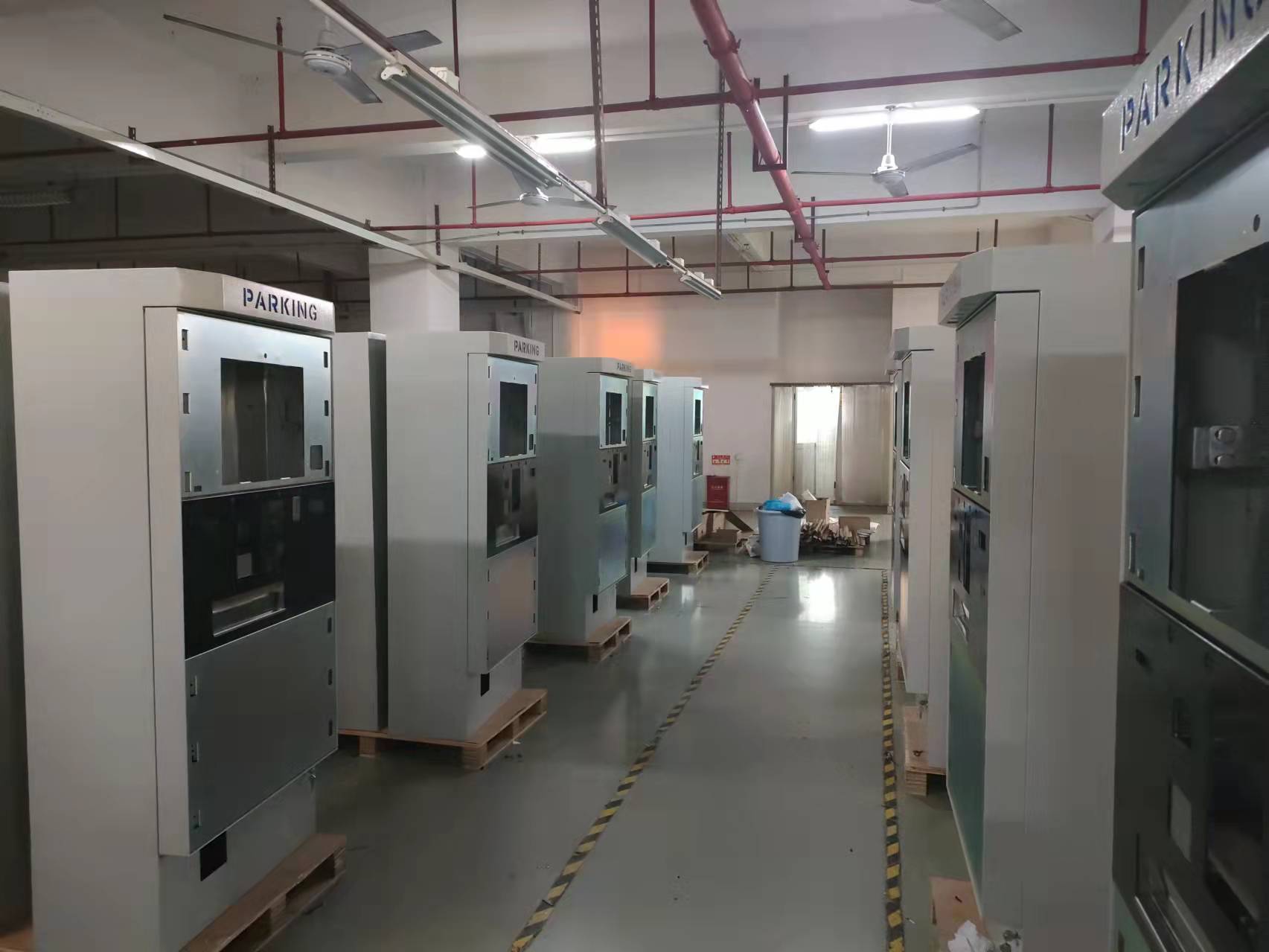

– Lean manufacturing,production and testing in house
– Robust ISO quality system and reliable quality control team
– Strong Kiosk hardware integration
– Professional and technical communication
– Quick response and quick action to customer's requirement
All this boils down to one thing - Hongzhou Smart’s ability to simplify your long-term success. With a fine-tuned custom kiosk design process that expertly navigates all key elements of the customer's design experience,Hongzhou facilitates deliveries of standard models and custom designs quickly and efficiently.
