Company Advantages1. Hongzhou portable pos is manufactured through a closely controlled chemical combination. All the ingredients are processed at high temperatures to achieve great chemical properties. Supplied by uninterruptable power, the product won't shut down suddenly
2. Owing to the remarkable characteristics, the product is becoming increasingly widely applied in the market. The product is well suited to high-profile environments such as airport, hospital, and library
3. portable pos has competitive price which is able to make your cost recover quickly. It makes it easy to automate guest services and keep demand serviced efficiently
4. The practice verified the steady performance and smart mobile pos of portable pos . With a bright high-resolution screen, it delivers a highly responsive, and complete self-service

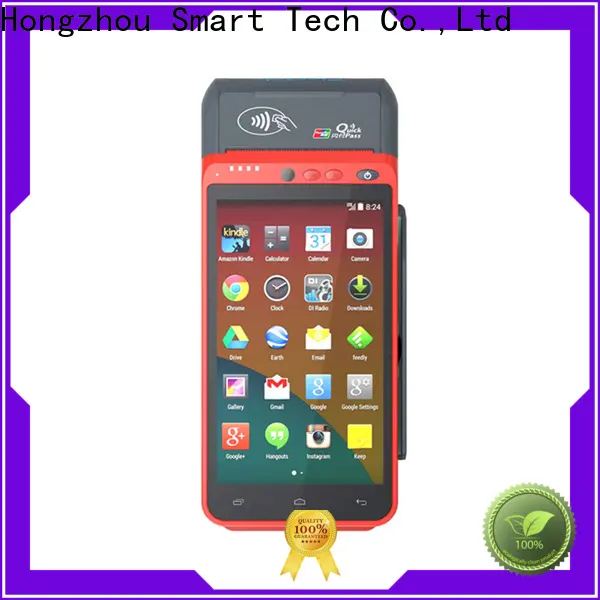

Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Ø Safedroid OS, Based on Android 5.1 or 7.0 O/S;
Ø 5.5 inch TFT IPS LCD, resolution 1280*720
Ø Built-in high speed thermal printer , with over 50Km print life
Ø Full bands for global coverage: 4G/3G/2G,WLAN,VPN
Ø Authentec,508dpi fingerprint module for biometric identification
Ø Dual camera for quickly QR code scan & Honeywell 2D scanner as option
Ø One-stop payment of MSR/IC/NFC, with PCI PTS 4.X, EMV L1&L2 certified
DEMO SHOW: https://youtu.be/EnVZUunmeMk
No. | Basic Module | Main Specifications |
1 | Basic Characteristics | OS | Safe android OS (based on Android 5.1 or 7.0 O/S) |
2 | CPU | Quad-Core 1.35GHZ |
3 | ROM | 8GB ROM EMMC |
4 | RAM | 1G RAM LPDDR3 |
5 | Display | 5.5 inch TFT IPS LCD,resolution 1280*720 |
6 | Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |
7 | Dimensions | 206mmX84mmX32mm (max 56mm) |
8 | Weight | 530g(Battery included) |
9 | Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys |
10 | 3 Virtual keys:Menu,Home,Back |
11 | Input | Chinese/English ,and supports handwriting and soft keyboard |
12 | Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
13 | Bluetooth | BT 4.0 LE +EDR |
14 | 4G | TD-LTE:Band38, Band39, Band40, Band41 |
15 | FDD-LTE:Band1,Band3,Band7,Band8,Band20 |
16 | 3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 |
17 | CDMA EV-DO Rev.A:800MHZ |
18 | TD-SCDMA:Band34,Band39 |
19 | 2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ |
20 | Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple |
21 | track (tracks 1/2/3), bi-directional |
22 | Smart Card reader | Supports ISO7816 standard |
23 | Contactless Card reader | Supports 14443A / 14443B |
24 | Expansion and peripherals | Printer | High-Speed Thermal Printer ; |
25 | 58mm printing paper ; |
26 | 40mm paper roll |
27 | Camera | 5MP camera with LED flash and auto-focus function |
28 | Satellite Positioning | GPS, Supports A-GPS |
29 | Audio | Speaker ,Microphone,Earphone |
30 | Interfaces | Micro SD Card Slot | 1 PCS |
31 | SIM Card Slot | 2 PCS MICRO SIM |
32 | PSAM Card Slot | 2 PCS Conforms to ISO7816 standard |
33 | USB Port | 1PCS TYPE C USB |
34 | Power | Battery | Li-ion battery ,7.4V /2600mAH |
35 | Charging Port | Type C USB Port ,5V DC,2A |
36 | Environment | Operating Temperature | -10°C to 50°C |
37 | Storage Temperature | -20°C to 70°C |
38 | Humidity | 5% to 95% Relative Humidity, Non-Condensing |
39 | Certification | Electromagnetic | CCC,CE,FCC |
40 | Payment | PCI PTS 4.X ,EMV L1&L2 |
41 | Optional | Fingerprint | Semiconductor capacitance |
42 | 14.4mm x 10.4mm imaging area |
43 | 208 x 288 pixel array, |
44 | Crossmatch FBI certified |
45 | Authentec,508dpi |
46 | Front camera | 2 Megapixel Fixed Focal Camera |
47 | Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies |
48 | Satellite Positioning | GLONASS, Bei-Dou satellite navigation system |
49 | Fiscal Module | Russian format |
※ Safedroid OS, Based on Android 7.0 or 5.1 OS
※ 5.5 inch TFT IPS LCD, resolution 1280*720
※ Built-in high speed thermal printer , with over 50Km print life
※ Full bands for global coverage: 4G/3G/2G,WLAN,VPN
※ Authentec,508dpi fingerprint module for biometric identification
※ Dual camera for quickly QR code scan & Honeywell 2D scanner as option
※ One-stop payment of MSR/IC/NFC, with PCI PTS 5.X, EMV L1&L2 certified
Main module:
Magcard reader,Smart Card reader,Contactless Card reader,Printer,Camera,Fingerprint,Barcode Scanner
Accessories:
Type-C USB Cable, Battery, Charger Head, Printer Paper
Company Features1. Hongzhou Smart Tech Co.,Ltd is internationally outstanding in the market of portable pos . Hongzhou Smart Tech Co.,Ltd possess several advanced production lines for producing
smart pos .
2. Hongzhou Smart Tech Co.,Ltd is greatly supported in technology from our professional R&D base.
3. By virtue of mobile pos machine technology, mobile pos has won the wide recognition of customers. Our Research & Development department plays a central role in achieving our business objectives. Their high level of expertise and experience are put to good use in shaping the development process. Get an offer!
