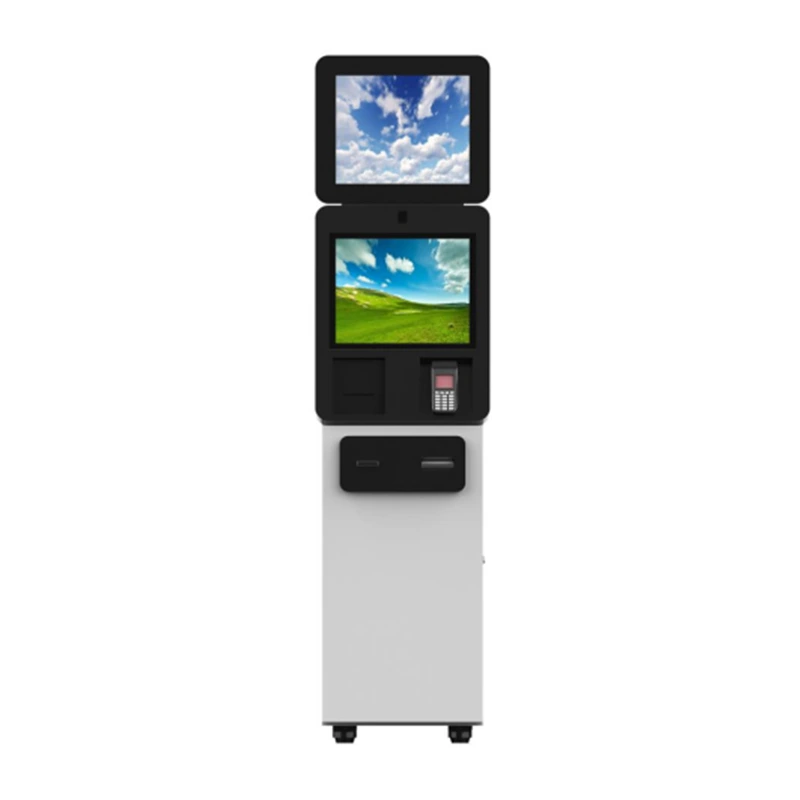

SELF-SERVICE SIM CARD DISPENSING KIOSKS

Hongzhou Smart is fully integrated self service platform, complete with modular hardware, sophisticated middleware and a telemetry platform, promises market-leading flexibility and customization to self service projects for telecoms worldwide.

We have different Telecom SIM Dispensing Kiosk design to meet customer's different requirement.

Immersive Touch Screen Display

The full HD display with incredible details and vivid colors .

Facial Recognition and Liveness detection

Uses stereo camera based liveness detection and facial matching.

Smart Cash Acceptor

Accepts all major currencies with dual locks.

Rapid Biometric Verification

Multi-modal biometric support.

Document Scanning

ID document scanning and authentication with flexible ICR & NFC support reducing user interaction time significantly.

Multiple SIM Card Dispensers

Multiple, extended capacity SIM card dispensers.

Below is one of SIM Card Dispensing Kiosk Firmware BOM：

No.	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Intel H81; Integrated Network card and Graphic card
			CPU	Intel i3 4170
			RAM	8GB
			SSD	240G
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	GW-FLX300M 300W
2	Operation System		Windows 10
3	Display+Touch screen	19"	Screen Size	19 inch
			Pixel Number	1280*1024
			Pixel pitch	250cd/m²
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 30000hrs
			Touch point number	10 point
			Input mode	Finger or capacitor pen
			Surface hardness	≥6H
4	Advertising screen	19"	Screen Size	19 inch
			Pixel Number	1280*1024
			Pixel pitch	250cd/m²
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 30000hrs
5	Cash recycle		Cash size	Accepts:Width: 60 - 85 mm,Length: 115 - 170 mm
				Recycles:Width: 60 - 82 mm
			Cash box capacity	1000 notes
			Recycler Capacity	Up to 70 mixed notes
			Protocols	SSP ccTalk
			MCBF	100,000
6	Card dispenser		Support card type	Contact IC card conforming to ISO7816 standard read and write and dispensed
			Card size	L:85±0.5mm，W:54±0.5mm，T:0.2～2.0MM
			Card box capacity	300 pcs
			Card volume alarm:	less 10 pcs
7	Receipt Printer		Receipt Printer Method	Thermal printing
			Print width	58mm (432dots/line)
			Speed	200mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
8	Camera		Sensor type	1/2.7"CMOS
			Array size	1928*1088
			Pixel	3.0um*3.0um
			Maximum image transfer rate	1080P 30FPS
			AGC/AEC/Whiter balance	Auto
9	Power Supply	LRS-350-24	AC input voltage range	100‐240VAC
		LRS-350-24	DC output voltage	24V
		LRS-150-12	AC input voltage range	100‐240VAC
		LRS-150-12	DC output voltage	12V
10	POS with NFC		Provided by customer
11	Finger printer		Provided by customer
12	4G		Provided by customer
13	WIFI	U10	2.4G Hz +5G Hz
14	Speaker	HZ	Dual channel amplified speakers for Stereo , 8Ω 5W.
15	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.

Hongzhou Smart provides instant card issuance kiosks that Multi-type Instant Card Printing and Issuing Solution.Our self-service machines can print and issue many types of cards. This includes SIM cards,debit cards, credit cards, prepaid cards, subsidiary cards, and cards renewal.
