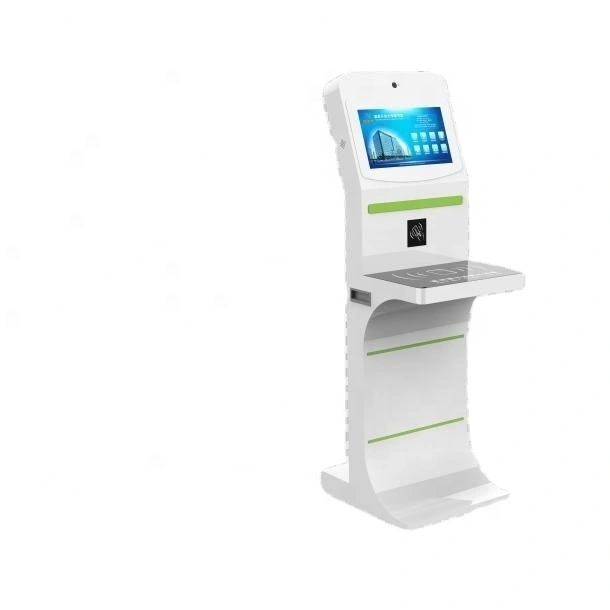

Custom Made RFID Library Information Kiosk for School / Government /Community Library
Custom Made RFID Library Information Kiosk for School / Government /Community Library
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HZ
Touch screen:
19 Inch
Touch screen type:
Capacitive Screen
Card Type:
RFID Card Read
Application:
School / Government /Community Library
Function:
Self-service Book Borrow and Return
Warranty:
2 Years
Logo:
Custom Customer's Logo
Customized service:
Welcome
Installation:
Floor Standing
Certification:
ISO9001
Supply Ability
Supply Ability:
300 Piece/Pieces per Month

OEM/ODM Inforation kiosk for School,Government,Library Book Borrow and Return



Hongzhou offer custom made library Information Kiosk turnkey solution for RFID Book Borrow and Return,it's named Library Book Borrowing Kiosk Machine,it's widely used in School,Government,Community Library.


Below library Information Kiosk Case Hongzhou produced,you can take the firmware as a reference:

Kiosk firmware list

No. Components Brand / Model Main Specifications
1 Industrial PC System Industrial PC Mother Board Baytrail; Integrated Network card and Graphic card
CPU Intel J1900,Intel i3, i5 or above
RAM 4GB
SSD 120G
Interface 8*USB, 6*COM, 1*VGA, 2*LAN,1*AUDIO, 1*LPT, 1*PS/2
PC Power Supply 12V5A
2 Operation System   Windows 7/Windows 10
3 Display+Touch screen 21.5" Screen Size 21.5 inch
Pixel Number 1920*1080
Pixel pitch 250cd/m²
Contrast 1000 1
Display Colors 16.7M
Viewing Angle  89°/89°/89°/89°
LED Life Time  Min. 30000hrs
Touch point number  10 point
Input mode Finger or capacitor pen
Surface hardness ≥6H
4 Thermal printer   Printer Method Thermal printing
Print width 58mm/80mm can be optioned
Speed 100mm/sec(Max)
Resolution 203dpi
Print length 100KM
Autocutter included
5 QR code scaner    Image (Pixels) 640 pixels(H) x 480 pixel(V)
Light Source Illumination: 6500K LED
Field of View 72°(H) x 64° (V)
Minimum Resolution: ≥3.9 mil
1D UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal
, etc
2D PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Hanxin, etc.
6 RFID Card Reader    Support ID: EM4100,4200,TK4100and compatible card
IC: Mifare one s50/S70,etc
Frequency 125KHz,13.56MHz
7 Power Supply RD-125-1224 AC input voltage range 100 to 240VAC
Frequency 50Hz to 60Hz
Output over current protection  110~130%
Operating temp. & humidity 0~+50,20%~90%RH (noncondensing)
8 Speaker kinter Dual channel amplified speakers for Stereo , 8Ω 5W.
9 KIOSK Cabinet   Hongzhou Dimention decided when finish production
Color Optional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
2.Color and LOGO  are upon customers' requests.
10 Accessories Security Loc ,2 ventilation fans, Wire-Lan Port;  Power sockets for electricity,  USB ports;Cables, Screws, etc.
11 Assembling and testing
12 Packing Security Packing Method with Bubble Foam and Wooden Case



Applicaiton




We can also support custom made Mini RFID Library Kiosk as below,if you have a Library information Kiosk for book borrow and return,please feel free contact us today.



Company Profile



Hongzhou Smart,a member of Hongzhou Group,we are ISO9001,ISO13485 IATF16949 certified and UL approved corporation.As a leading Self-Service Kiosk turnkey solution provider and POSmanufacturer,Hongzhou Smart have designed, manufactured and delivered more than 450000+ units of Self-service terminal and POS machines to global market.



With professional engineering team,leading precision sheet metal fabrication and kiosk assembly lines,Hongzhou Smart have been developing and manufacturing the best hardware and firmware technology for intelligent self-service terminals, we can offer customer one stop ODM and OEM Smart kiosk solution from kiosk design,kiosk cabinet fabricaiton,kiosk function module selection,kiosk assemlby and kiosk testing in house.



On base of sleek design,robust Kiosk hardware integration,turnkey solution, our Intelligent Terminal kiosk own the advantage of vertical integrated batch production capacity, low cost structure, and outstanding customer collaboration, enable us give quick response to customer's tailor made smart kiosk requirement.








Hongzhou Kiosk Manufacture Facility

a.Kiosk enclosure fabrication,Hongzhou have our own sheet metal fabrication shop in house

b.Kiosk Assembly and Testing--Hongzhou have our own Kiosk Assembly and Testing production line in house




Certifications

Recommend Self-service kiosks

Our kiosk Market and Cusotmer Visit

Our self service kiosk product and solution are popular in over 90 countries,cover all in one smart payment kiosk,Bank ATM/CDM,Currency Exchange kiosk,Information kiosk,Hotel check-in kiosk,Queuing kiosk,ticketing kiosk, SIM Card Vending kiosk,Recycling kiosk,Hospital kiosk, Inquiry kiosk, Library kiosk, Digital Signage,Bill Payment kiosk,Interactive kiosk,vending kiosk etc. They are widely used in Government,Bank, Securities, Traffic,Shopping mall,Hotel,Retail,Communications,Transportation,Hospitals,Medicine,Scenic and Cinema,commercial vending,municipal affairs, Social insurance,environmental protection etc.



FAQ
1. Q  Are you Manufacturer or Trading company?
A: Yes,we are kiosk hardware Manufacturer with more than 10 years experience.

2. Q What's your main products?
A: We have been focusing on the production of smart kiosk turnkey solution from 2008.

3. Q Can you do OEM / ODM Kiosk for us?
A: Of cause. Let us know what kiosk you need, we'll do it for you.

4. Q Can we visit your factory?
A: Yes,you are warmly welcomed to visit our factory anytime, our factory is only half an hour driving from the Shenzhen Airport.

5. Q If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.

6. Q What is your delivery time?
A: For custom made samples, within 25 working days after payment received and kiosk rendering is confirmed, For bulk order, it depends on your quantity and requirements on OEM / ODM.

7.Q Where you can see a Library Book Borrowing Kiosk Machine?
School library,community library,City government library etc.
