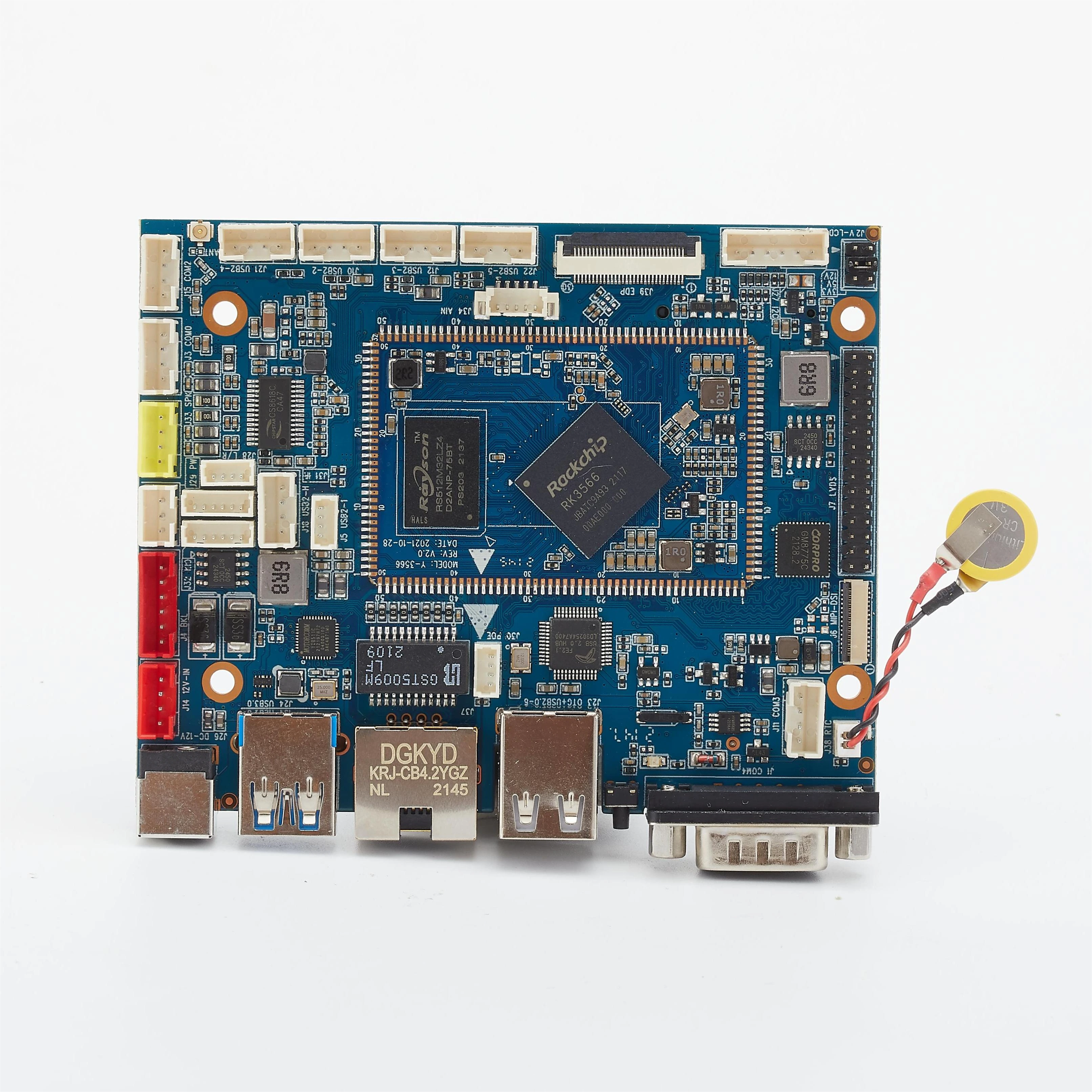

UAW-3566 Android AI Intelligence Boards

RK 3566 Quad Core Cortex A55 @1.8GHz,
2GB/4GB/8GB Ram optional, 16GB-128GB Rom Optional. With built-in NPU supports 1.0 Top computing power.

    oops...!

    no product data.

    Go to homepage

    Specification List

    Model No.

    UPX-3566

    Category

    Android Mother Board

    Chipset

    Rockchip

    CPU/Processor

    RK 3566 Cortex A55_ Quad Core, up to 1.8GHz

    GPU

    Mali G52 2EE

    NPU

    Built-in 1Top Computing power

    OS

    Recommend: Andriod 11
    Optional: Linux Buildroot/Debian 10/Ubuntu-18.04 optional

    Resolution

    4Kx2K@60fps decoding, H.264, H.265, VP9, 8M ISP

    RAM

    Standard 2GB,  Max. 8GB_LPDDR4,

    ROM

    Standard 16GB_EMMC, Max. 128GB

    Storage Extension

    1* Micro SD slot: Max. 256GB supported,
    1* Standard SATA 3.0 hard disk port

    USB Ports

    1* USB 3.0,
    1* USB 2.0 OTG,
    5* USB pin headers (one is CPU raw USB)

    Serial Port

    4* TTL/RS-232 compatible
    1* TTL/RS-485 compatible

    Display Output Interface

    LVDS, MIPI, EDP, HDMI, RGB/T-CON, supports dual screen display

    Cash Box Port

    10/100/1000M Adaptive Ethernet RJ45 connector with 4-Pin POE header

    Ethernet

    HDMI in, HP, MIC, Amp., GPIO Signals, Line out, DC-12V and so on

    WiFi

    Dual band WiFi 2.4G/5GHz, supports IEEE 802.11 b/g/n/ax

    Bluetooth

    BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.2 built-in

    Camera

    Support USB camera within 8 million pixels

    Dimension

    100mm*90mm*9mm (L*W*H)

    Working Environment

    T: -20°C ~ 70°C
    Humidity: 0%~95% (non-condensing)



    UAW-Y3566 uses Rockchip RK3566 Quad-core processor with a main frequency of up to 1.8GH. It integrates an NPU with a maximum computing power of 1Tops, providing users with an “embedded” + “AI” solution platform. Optional 8GB large memory, rich onboard interfaces, widely used in AI label scales, single-screen AI scales, artificial vision, edge computing equipment and other scenarios.
