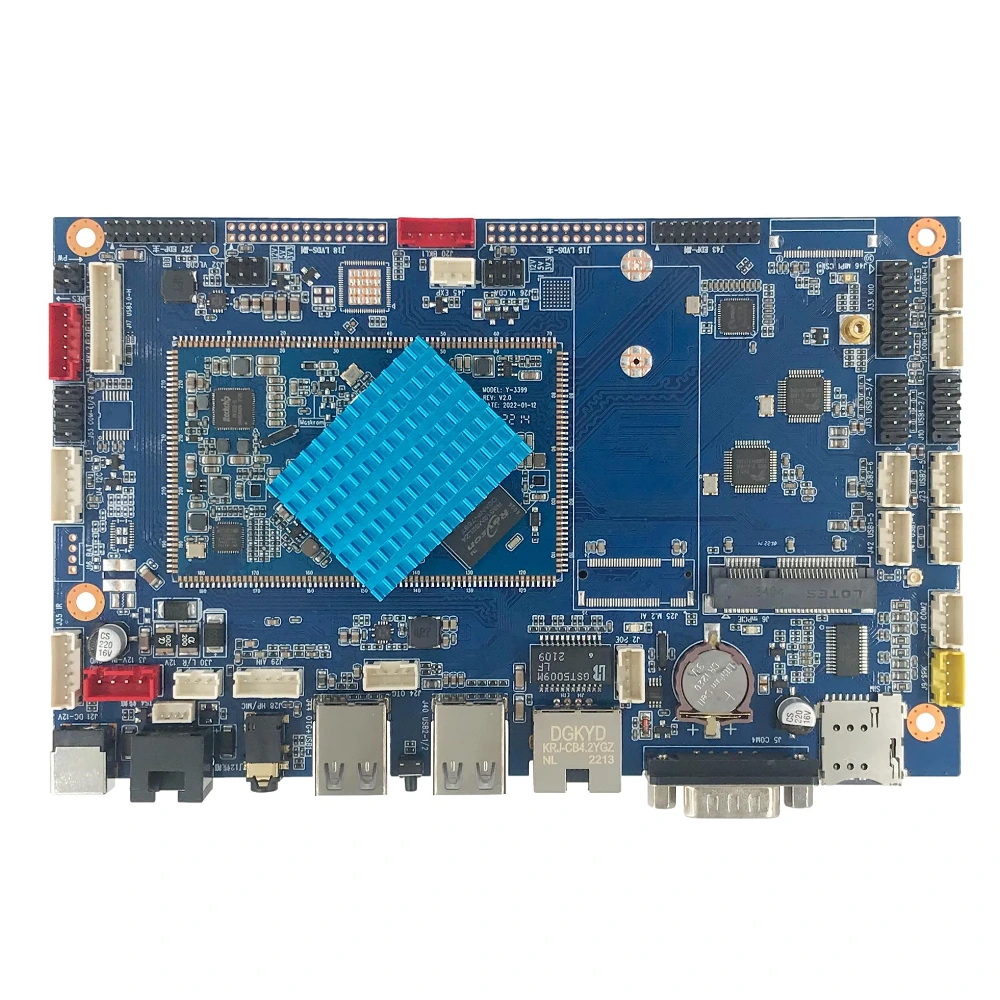

UPX-3399 Android Smart Retail Industry Boards
RK 3399 Dual Big Core_Cortex-A72+ Quad Small Core_Cortex-A53 structure, Mali-T860 High performance GPU, supports Type-C audio output and M.2 AI Port.
Specification List
|
Model No. |
UPX-3399 |
|
Category |
Android Mother Board |
|
Chipset |
Rockchip |
|
CPU/Processor |
RK 3399 Dual Core Cortex_A72 + Quad Core Cortex_A53, up to 1.8GHz |
|
GPU |
Mali-T860MP4 |
|
OS |
Recommend: Andriod 7.1 |
|
Resolution |
4Kx2K@60fps decoding, H.264, H.265, VP9, 8M ISP, HDR |
|
RAM |
Standard 2GB_LPDDR4, 4GB optional |
|
ROM |
Standard 16GB_EMMC, Max. 128GB optional |
|
Storage Extension |
1* Micro SD slot: Max. 256GB supported |
|
USB Ports |
4* USB 2.0, |
|
Serial Port |
1* TTL/RS-232 DB-9 |
|
Cash Box Port |
1* RJ11 6-pin standard cash box connector |
|
M.2 AI Port |
M.2 USB 2.0 AI module port for A0-1808 and other AI Accelerator Cards (optional) |
|
Display Interface |
2*LVDS, |
|
Ethernet |
10/100/1000M Adaptive Ethernet RJ45 connector |
|
Other I/O ports |
HP, MIC, Amp., GPIO Signals, Line out, DC-12V and so on |
|
WiFi |
IEEE 802.11 b/g/n/ac |
|
Mini PCI-E 4G |
Mini PCI-E 4G module interface with Micro-SIM card socket |
|
Bluetooth |
BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.2 |
|
Camera |
Support USB camera within 5 million pixels and MIPI+DVP dual cameras (optional) |
|
Dimension |
170mm*105mm*16.5mm (L*W*H) |
|
Working Environment |
T: -20°C ~ 70°C, |
UPX-3399 adopts Rockchip RK3399, Dual-core A72+Quad-core A53 Cortex processor, the main frequency can be up to 1.8GH, integrated Mali-T860 graphics processor, onboard cash drawer interface, DB-9 serial port, RS232/RS485 and other interfaces, it can support dual-screen simultaneous display/different display, and can be easily applied to Dual-screen Radios, Dual-screen Information Kiosk, Smart self-service equipment and other application scenarios.
