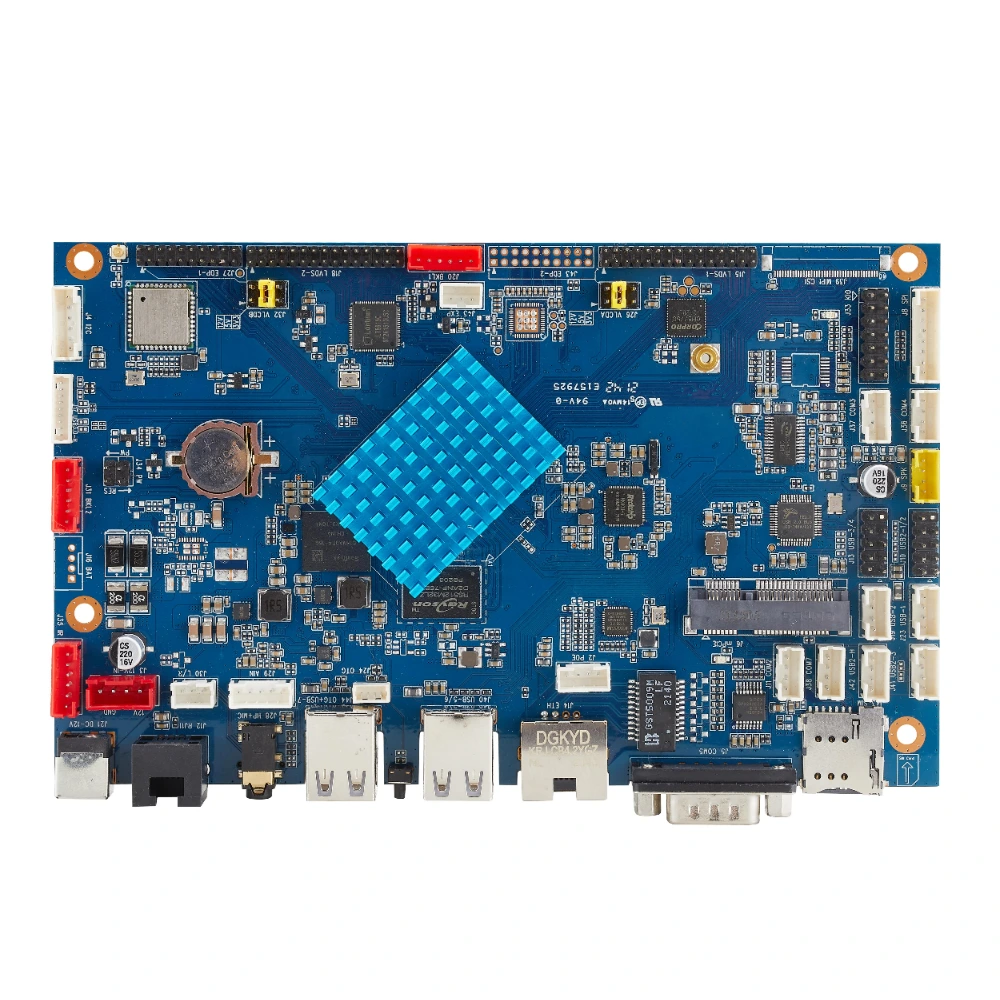

UPX-3568 Android Smart Retail Industry Boards

Rockchip RK3568 solution, Quad-core ARM Cortex A55, clock speed up to 2.0GHz, 0.8 Tops NPU, Max. 8GB Ram and 128GB ROM, dual screen display.

Inquiry

Write a Review

Specification List

Model No.	UPX-3568
Category	Android Mother Board
Chipset	Rockchip
CPU/Processor	RK 3568 Quad Core, 64Bits, Cortex A55, up to 2.0GHz
GPU	Mali G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
NPU	1Top Computing power
OS	Recommend: Andriod 11 Optional: Linux Buildroot/Debian 10/Ubuntu-20.04 optional
Resolution	Supports 4K 60fps H.265/H.264/VP9 decoding; 1080P 100fps H.265/H.264 coding; 8M ISP; HDR
RAM	Standard: 2GB_LPDDR4, Optional: 4GB, 8GB
ROM	16GB_EMMC, supports max. 128GB optional
Storage Extension	1* Micro SD slot, supports external TF Card with max. 256GB storage
USB Ports	4* USB 2.0, 1* USB 3.0 pin header 8* USB 2.0 pin headers 1* OTG pin header
Serial Port	1* TTL/RS-232 DB-9 3* TTL/RS-232 pin headers 1* TTL/RS-48 pin header
Display Output Interface	2* LVDS, 2* EDP
Cash Box Port	1 RJ11 6-pin standard cash box connector
Ethernet	10/100/1000M Adaptive Ethernet RJ45 connector+4-Pin POE header
Other I/O ports	HP&MIC jack, Mic input, Amp., GPIO Signals, Line in/out, Infrared RC, LCD backlight control header, DC-12V, Micro Sim Card Slot and so on
WiFi	supports IEEE 802.11 a/b/g/n/ac/ax
Mini PCI-E 4G	1* Industry standard Mini PCI-E 4G module interface with Micro-SIM card socket
Bluetooth	BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.2
Camera	Support USB camera within 5.0 MP and MIPI+DVP dual cameras (optional)
Dimension	170mm105mm16.5mm (LWH)
Working Environment	T: -20°C ~ 70°C Humidity: 0%~95% (non-condensing)

Dual-screen AI-enabled POS Scale Board
The UPX-3568 board is driven by a quad-core Cortex-A55 processor that is capable of reaching a maximum clock speed of 2.0GHz. The Mali-G52 GPU can efficiently handle far greater graphical complexity. It also comes with a 0.8-TOPS NPU for AI acceleration and a max RAM capacity of 8GB. With a variety of onboard display interfaces, multiple I/O and expansion options, this board may be readily applied to dual-screen POS scales, industrial control, edge computing, and more.
