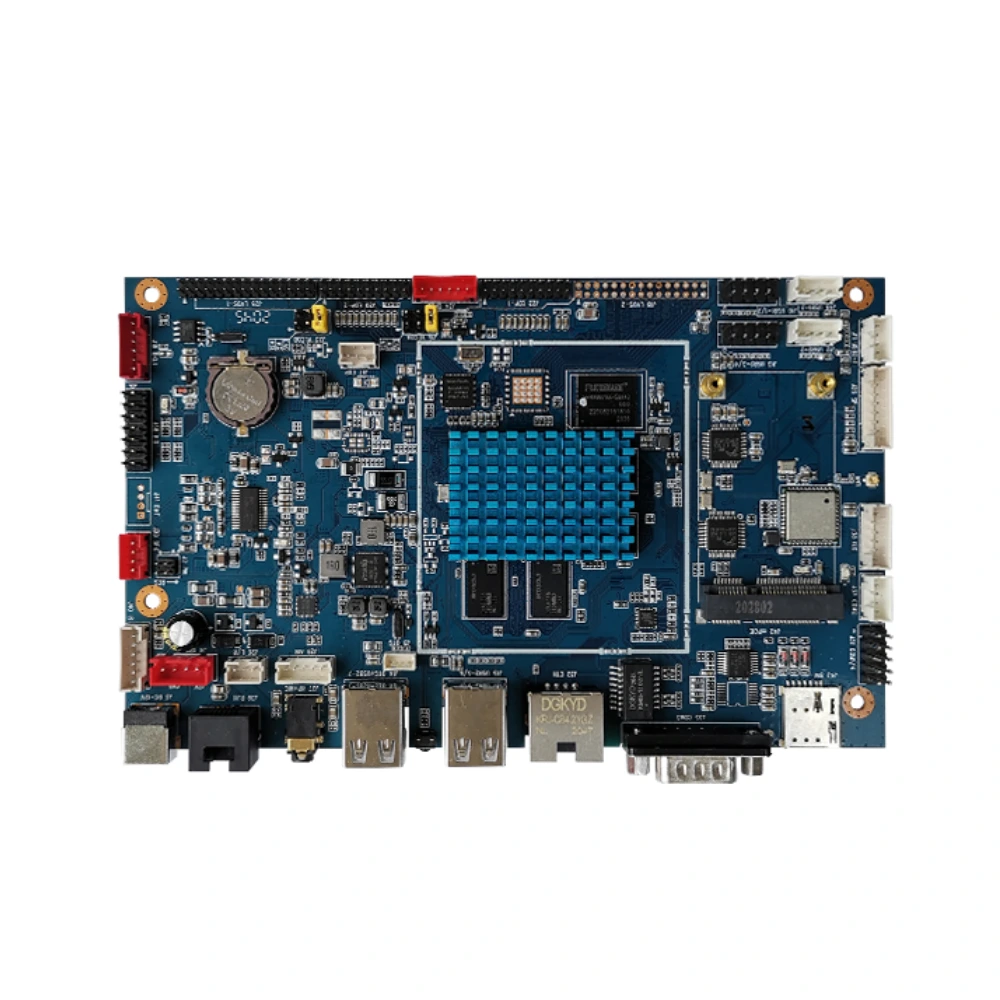

UP-3X Android Smart Retail Industry Boards

RK3288 Quad-core Cortex-A17@1.8GHz, ARM Mali T-764 GPU, Up to 4GB Ram and 128GB ROM, support Mini PCI-E 4G, supports dual screen display.

Inquiry

Write a Review

Specification List

Model No.	UP-3X
Category	Android Mother Board
Chipset	Rockchip
CPU/Processor	RK 3288 Quad Core Cortex_A17@1.8GHz
GPU	Mali-T764
OS	Recommend: Andriod 7.1 Optional: Android 5.1/6.0
Resolution	4Kx2K@60fps decoding, H.264, H.265, full HD
RAM	Standard 2GB_DDR3, 4GB optional
ROM	Standard 16GB_EMMC, Max. 128GB optional
Storage Extension	1* Micro SD slot optional: Max. 128GB supported
USB Ports	4* USB 2.0, 8* USB pin headers 1* OTG pin header
Serial Port	1* RS-232 DB-9 2* TTL/RS-232 pin headers 1* TTL debug serial port
Display Interface	2* LVDS, 2* EDP, Supports Dual Screen Display
Cash Box Port	1* RJ11 6-pin standard cash box connector+4-Pin header
Ethernet	10/100M Adaptive Ethernet RJ45 connector+4-Pin header
Other I/O ports	HDMI in, HP/MIC, Amp., GPIO Signals, Line in/out, DC-12V, Nano-SIM card socket and so on
WiFi	Built-in WiFi module, support IEEE 802.11 b/g/n
Mini PCI-E 4G	Standard MiniPCI-E 4G module interface with Nano-SIM card socket
Bluetooth	BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
Camera	Support USB camera within 2 million pixels
Dimension	170mm105mm (LW)
Working Environment	T: 0°C ~ 70°C Humidity: 0%~95% (non-condensing)

The UP3X board is powered by Rockchip RK3288 quad-core Cortex-A17 processor, with a maximum clock speed of 1.8GHz. The integrated Mali-T764 GPU supports OpenGL ES 1.1/2.0/3.1, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the POS system and terminal sector.
