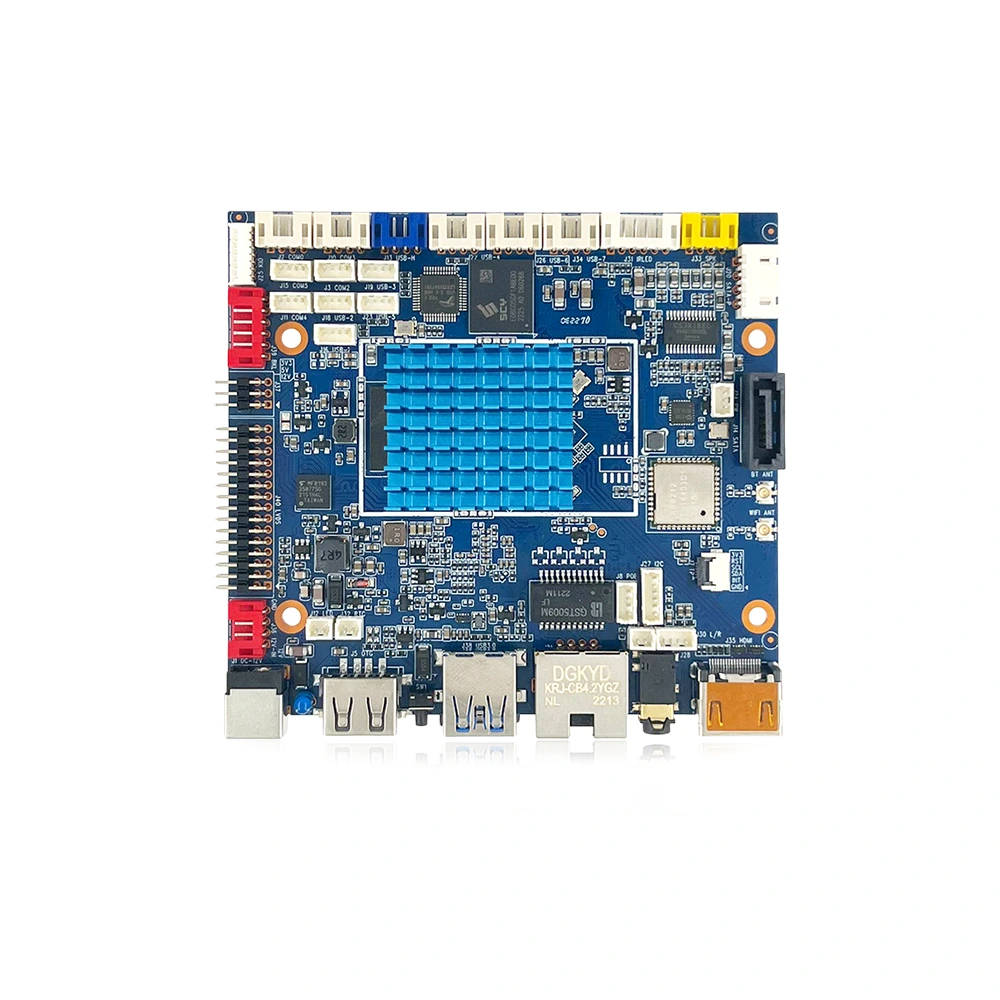

UH-3566 Standard Android HMI Motherboard
RK3566, ARM Quad-core A55 up to 1.8GHz, built-in Neural network NPU, 1Tops computing power, Max. 8GB Ram and 128GB ROM, 1GB Ethernet, SATA 3.0 port.
Specification List
|
Model No. |
UH-3566 |
|
Category |
Android Mother Board |
|
Chipset |
Rockchip |
|
CPU/Processor |
RK 3566 Cortex A55_ Quad Core, up to 1.8GHz |
|
GPU |
Mali G52 2EE |
|
NPU |
Built-in 1Top Computing power |
|
OS |
Recommend: Andriod 11 |
|
Resolution |
4Kx2K@60fps decoding, H.264, H.265, VP9, 8M ISP, HDR |
|
RAM |
Standard 2GB, Max. 8GB_LPDDR4, |
|
ROM |
Standard 16GB_EMMC, Max. 128GB |
|
Storage Extension |
1* Micro SD slot: Max. 256GB supported, |
|
USB Ports |
1* USB 3.0, |
|
Serial Port |
4* TTL/RS-232 compatible |
|
Display Interface |
LVDS, MIPI, EDP, HDMI, RGB/T-CON, supports dual screen display |
|
Ethernet |
10/100/1000M Adaptive Ethernet RJ45 connector with 4-Pin POE header |
|
Other I/O ports |
HDMI in, HP, MIC, Amp., GPIO Signals, Line out, DC-12V and so on |
|
WiFi |
Dual band WiFi 2.4G/5GHz, supports IEEE 802.11 b/g/n/ax |
|
Bluetooth |
BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.2 built-in |
|
Camera |
Support USB camera within 8 million pixels |
|
Dimension |
100mm*90mm*9mm (L*W*H) |
|
Working Environment |
T: -20°C ~ 70°C, |
UH-3566 adopts Rockchip RK3566, quad-core Cortex-A55 architecture processor，clock up to 1.8GHz, built-in neural network NPU, supporting 1Tops computing power, 8GB large RAM optional , compact design, suitable for Small smart self-service terminals, face verification equipment, welcome robots, edge computing and other scenarios.
