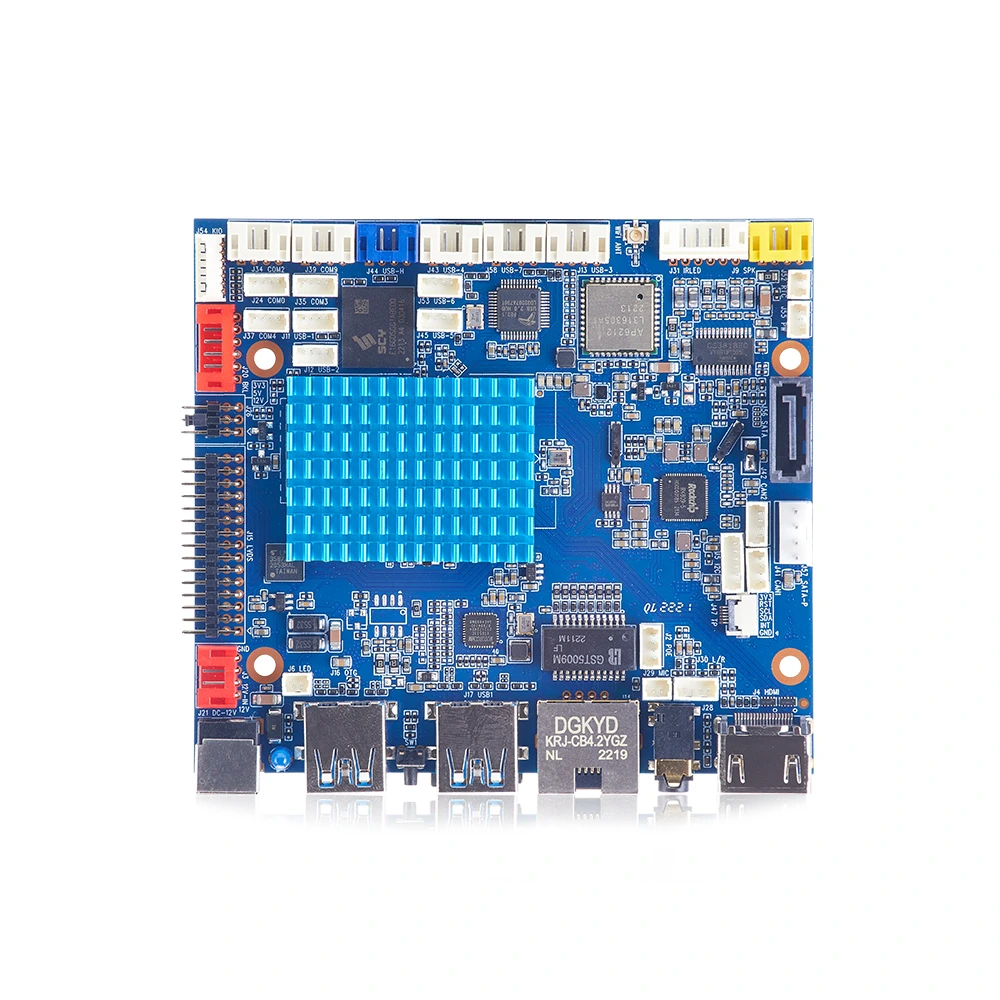

UH-3568 Standard Android HMI Motherboard
RK3568, Quad Core, Cortex A55, up to 2.0GHz, supports up to 8GB Ram and max. 128GB Rom optional. With Mali G52 2EE GPU and built-in 1Top Computing power NPU.
Specification List
|
Model No. |
UH-3568 |
|
Category |
Android Mother Board |
|
Chipset |
Rockchip |
|
CPU/Processor |
RK 3568 Quad Core, Cortex A55, up to 2.0GHz |
|
GPU |
Mali G52 2EE |
|
NPU |
Built-in 1Top Computing power |
|
OS |
Recommend: Andriod 11 |
|
Resolution |
4Kx2K@60fps decoding, H.264, H.265, VP9, 8M ISP, HDR |
|
RAM |
Standard 2GB_LPDDR4, Max. 8GB optional |
|
ROM |
Standard 16GB_EMMC, Max. 128GB optional |
|
Storage Extension |
1* Micro SD slot: Max. 256GB supported, |
|
USB Ports |
1* USB 3.0, 1* USB 3.0 OTG 5* USB pin headers (one is CPU raw USB) |
|
Serial Port |
4* TTL/RS-232 compatible 1* TTL/RS-485 compatible |
|
Display Interface |
LVDS, MIPI, EDP, HDMI, RGB/T-CON, supports multi displays |
|
Ethernet |
RJ45 connector with 4-Pin POE header |
|
Other I/O ports |
HDMI in, HP, MIC, Amp., GPIO Signals, Line out, DC-12V and so on |
|
WiFi |
Dual band WiFi 2.4G/5GHz, supports IEEE 802.11 b/g/n/ax |
|
Bluetooth |
BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.2 built-in |
|
Camera |
Support USB camera within 8 million pixels |
|
Dimension |
100mm*90mm*9mm (L*W*H) |
|
Working Environment |
T: -20°C ~ 70°C, |
UH-3568 adopts Rockchip RK3568, quad-core Cortex-A55 architecture processor , clock up to 2.0GHz. It has a built-in neural network NPU and supports 1Tops computing power, RAM up to 8GB. Compact design that can be easily used. Applied to face detection and recognition, commercial robots, edge computing and other scenarios.
