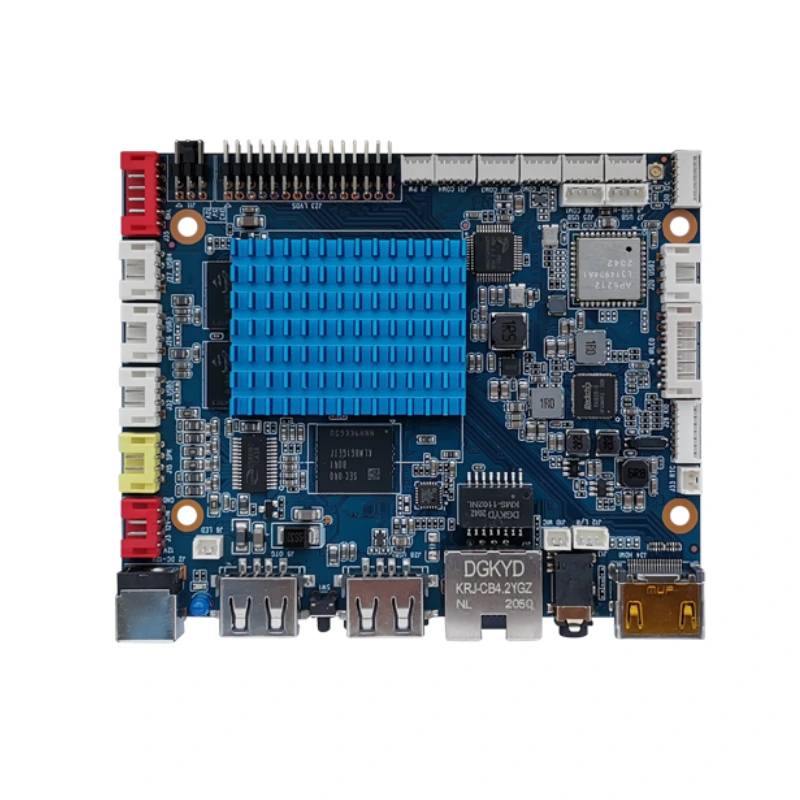

UH3 Standard Android HMI Motherboard
RK3288, Quad-core Cortex-A17@1.8GHz, Mali T764 GPU, 2GB/4GB Ram optional, 8GB-128GB ROM optional. Support extended 4G module through USB port.
Specification List
|
Model No. |
UH3 |
|
Category |
Android Mother Board |
|
Chipset |
Rockchip |
|
CPU/Processor |
RK 3288 Quad Core Cortex_A17, up to 1.8GHz |
|
GPU |
Mali-T764 |
|
OS |
Recommend: Andriod 7.1 |
|
Resolution |
4Kx2K@60fps decoding, H.264, H.265, Full HD |
|
RAM |
Standard 2GB_LPDDR4, 4GB optional |
|
ROM |
Standard 8GB_EMMC, Max. 128GB optional |
|
Storage Extension |
1* Micro SD slot: Max. 256GB supported |
|
USB Ports |
2* USB 2.0, one supports OTG |
|
Serial Port |
3* TTL/RS-232 compatible |
|
Display Interface |
LVDS, MIPI, EDP, HDMI |
|
Ethernet |
10/100M Adaptive Ethernet RJ45 connector |
|
Other I/O ports |
HDMI in, HP, MIC, Amp., GPIO Signals, Line out, DC-12V and so on |
|
WiFi |
Built-in high performance SDIO interface WiFi module, support IEEE 802.11 b/g/n |
|
4G Module |
Support extended 4G module through USB port. |
|
Bluetooth |
Built-in high performance serial interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.2 BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 |
|
Camera |
Support USB camera within 2 million pixels |
|
Dimension |
100mm*80mm*9mm (L*W*H) |
|
Working Environment |
T: -20°C ~ 70°C, |
The UH3 board is powered by Rockchip RK3288 quad-core Cortex-A17 CPU, up to 1.8GHz. The integrated Mali-T764 GPU supports OpenGL ES 1.1/2.0/3.1, enabling a perfectly smooth hardware decoding of 1080P and 4K resolution videos. With a variety of onboard display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied across industries.
![UH3 Standard Android HMI Motherboard 9]()
![UH3 Standard Android HMI Motherboard 10]()
![UH3 Standard Android HMI Motherboard 11]()
![UH3 Standard Android HMI Motherboard 12]()
![UH3 Standard Android HMI Motherboard 13]()
![UH3 Standard Android HMI Motherboard 14]()
We has a world-class industrial motherboard production workshop. we adopt dust-free workshops to test every index of the products to ensure the precision and efficiency of the products, so as to provide customers with the highest quality and reliable industrial computer motherboards.
