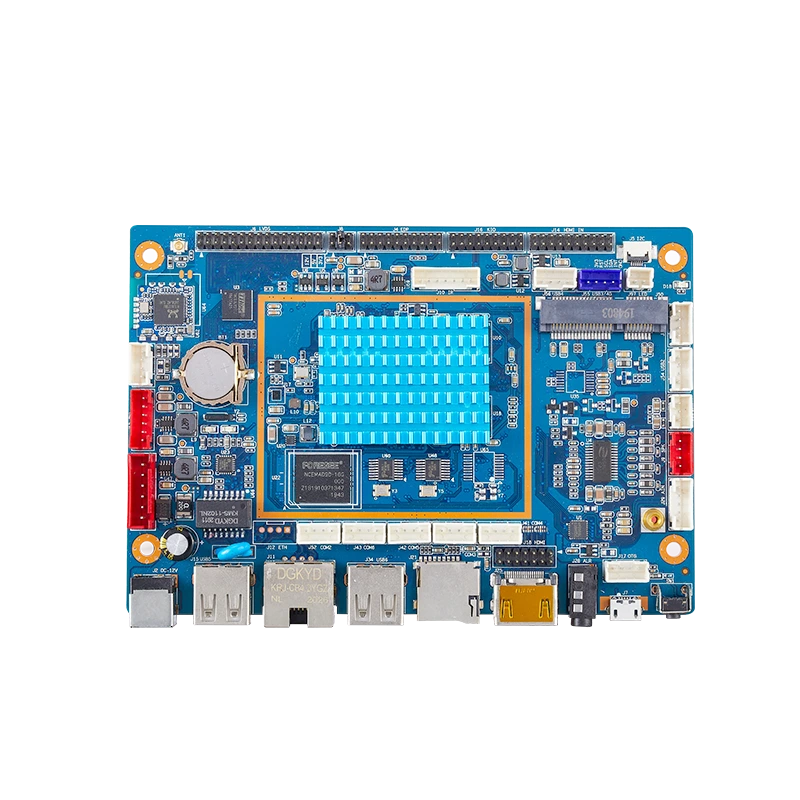

UK2 Android AIoT Mother Board

Rockchip RK3368, Octa-core Cortex-A53 processor, 1.5GHz, LVDS and EDP for 1080p FHD decoding, supports Mini PCIe port for 4G module.

Inquiry

Write a Review

Specification List

Model No.	UK2
Category	Android Mother Board
Chipset	Rockchip
CPU/Processor	RK 3368 Octa Core Cortex_A53 @1.5GHz
GPU	GC6110
OS	Recommend: Andriod 5.5.1 Others: Android 6.0 optional
Resolution	4Kx2K@60fps decoding, H.264, H.265, full HD
RAM	Standard 1GB_DDR3, 2GB optional
ROM	Standard 16GB_EMMC, Max. 128GB optional
Storage Extension	1* Micro SD slot optional: Max. 256GB supported ( will replace serial port no.2 if chose this function)
USB Ports	2* USB 2.0, 4* USB pin headers 1* 1 OTG pin header
Serial Port	1* TTL-232 compatible 1* TTL/232/485 compatible, 4* extended TTL/RS-232 compatible
Display Interface	LVDS, MIPI, EDP, HDMI
Ethernet	10/100M Adaptive Ethernet RJ45 connector with 4-Pin header
Other I/O ports	HDMI in, HP, MIC, Amp., GPIO Signals, Line out, DC-12V, Nano-SIM card socket and so on
WiFi	Built-in high performance USB interface WiFi module, support IEEE 802.11 b/g/n
4G Module	Standard Mini PCI-E 4G module interface with Nano-SIM card socket
Bluetooth	BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
Camera	Support USB camera within 2 million pixels
Dimension	135mm93mm9mm (LWH)
Working Environment	T: 0°C ~ 70°C, Humidity: 0%~95% (non-condensing)

The UK2 board is powered by Rockchip RK3368 Octa-core Cortex-A53 processor, with a maximum clock speed of 1.5GHz. The PowerVR GC6110 GPU supports OpenGL ES 1.1/2.0/3.1, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the vending machine sector.
