    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    OEM ODM
    Product name:

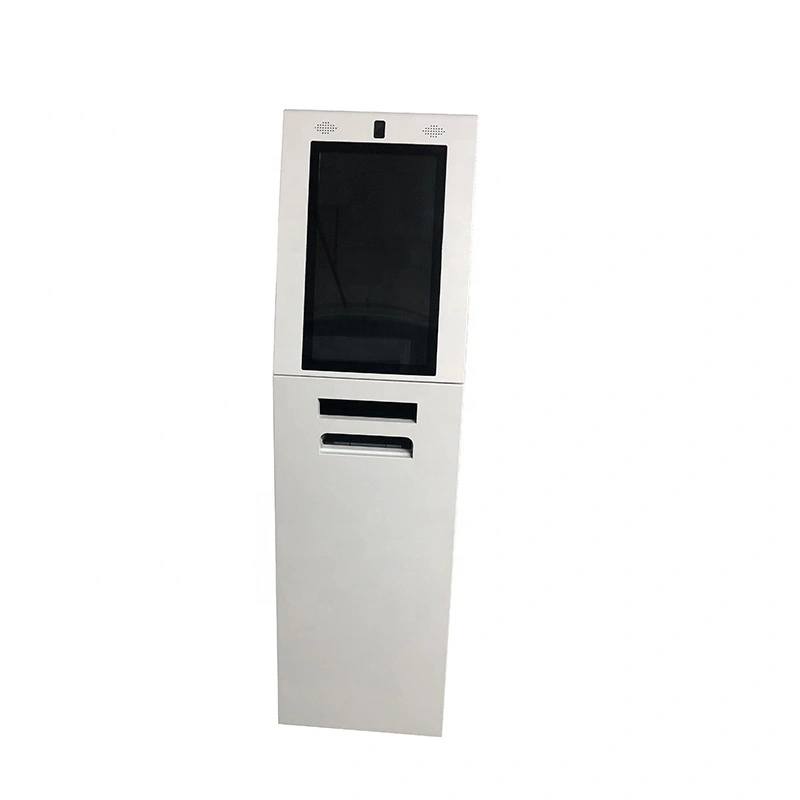

    21.5 Inch A4 Scanner and A4 printer Kiosk for Medical
    Touch screen type:
    Capacitive Screen
    Application:
    Indoor
    Optional parts:
    Camera
    Color:
    Customer's Request
    Power supply:
    110V/220V
    Used:
    Public place
    Dispatch way:
    By sea, by air
    Warranty:
    1 Year
    Supply Ability
    Supply Ability:
    100 Unit/Units per Month
    Video Description

    21.5 Inch A4 Scanner and A4 printer Kiosk for Medical



    Product Description
    No. Components Main Specifications
    1 Industrial PC System Mother Board Intel H81; Integrated Network card and Graphic card
    CPU Intel G3250
    RAM 4GB
    HDD 1000G
    Interface 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
    PC Power Supply HUNTKEY
    2 Operation System Windows 7 (without license)
    3 Display+Touch screen Screen Size 27 inch
    Pixel Number 1920*1080
    Brightness 300cd/m2
    Contrast 1000:1
    Display Colors 16.7M
    Viewing Angle 89°/89°/85°/85°
    Touch point number 10 point
    Input mode Finger or capacitor pen
    Surface hardness ≥6H
    4 Cash Accepter Cashbox box capacity 1200 notes
    Note Dimensions Width:60-83 mm   Length:120-177 mm
    Note Acceptance Speed 2.3 seconds
    Acceptance Rate 98% or higher
    5 Cash dispenser Note use the change function
    Speed 5 sheets/sec
    Number of box 4 box
    Banknote box capacity 3000 sheets for each box
    Maximum number of transactions 50 sheets
    6 Coin dispenser Coin dimensions diameter 16-31mm (0.63”-1.22”)
      Thickness 1.00-3.50mm (0.039” -0.138”)
    Coin Capacity 1,120 x 1, 950 x £1, 1,600 x US 25¢
    Coin Payout Rate Three coins per second
    Voltage 24V
    7 Printer Printer Method Thermal printing
    Print width 80mm
    Speed 250mm/sec(Max)
    Resolution 203dpi
    Print length 100KM
    Autocutter included
    8 Camera Sensor type  1/2.7"CMOS
    Array size 1928*1088
    Pixel 3.0um*3.0um
    Maximum image transfer rate 1080P 30FPS
    AGC/AEC/Whiter balance Auto
    9 Camera for cash acceptor
    and dispenser
    CCD 1/3" SONY CCD
    700TV
    10 Power Supply AC input voltage range 100-240VAC
    DC output voltage 24V
    Output over current protection 110~130%
    Operating temp. & humidity -10~+50,20%~90%RH (noncondensing)
    AC input voltage range 100-240VAC
    DC output voltage 12V
    11 LED lamp control module Provide 8-way 5V dual-color lamp output 4-way 12V output
    12 Speaker Dual channel amplified speakers for Stereo , 8Ω 5W.
    13 KIOSK Cabinet Dimention decided when finish production
    Color Optional by customer
    1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
    2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
    3.Color and LOGO  are upon customers' requests.
    Detailed Images
    21.5 Inch A4 Scanner and A4 printer Kiosk for Medical 7
    KIOSK

    21.5 Inch A4 Scanner and A4 printer Kiosk for Medical 9

    We ensure that this product is keeping pace with never-ending demands of the customers. It makes it easy to automate guest services and keep demand serviced efficiently. This product is remarkably appreciated among our customers around the world. It makes it easy to automate guest services and keep demand serviced efficiently.
