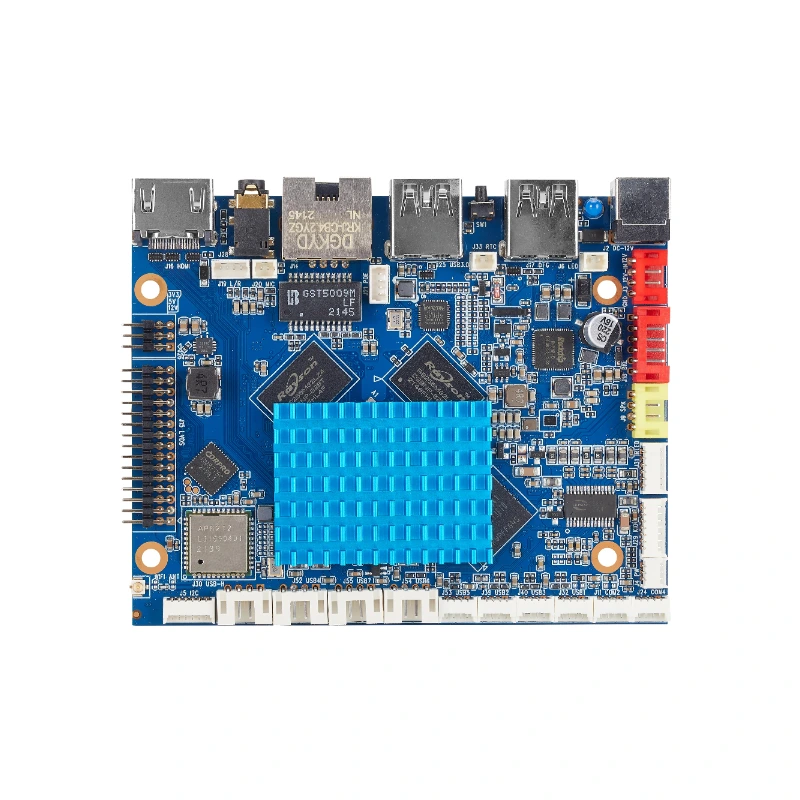

UH-3399 Standard Android HMI Motherboard

RK3399, ARM Hexa-core (Dual Core A72+Quad Core A53), 1.8GHz, with 2GB/4GB Ram optional, max.128GB Rom supported. Support Face Authorization.

Inquiry

Write a Review

Specification List

Model No.	UH-3399
Category	Android Mother Board
Chipset	Rockchip
CPU/Processor	RK 3399 Dual Core Cortex_A72 + Quad Core Cortex_A53, up to 1.8GHz
GPU	Mali-T860
OS	Recommend: Andriod 7.1 Others: Android 8.1/9.0 and Linux Buildroot/Debian 9/Ubuntu-18.04 optional
Resolution	4Kx2K@60fps decoding, H.264, H.265, VP9, 8M ISP, HDR
RAM	Standard 2GB_LPDDR4, 4GB optional
ROM	Standard 16GB_EMMC, Max. 128GB optional
Storage Extension	1* Micro SD slot: Max. 256GB supported
USB Ports	1* USB 3.0, 1* USB 3.0 OTG 5* USB pin headers (one is CPU raw USB)
Serial Port	4* TTL/RS-232 compatible 1* TTL/RS-485 compatible
Display Interface	LVDS, MIPI, EDP, HDMI
Ethernet	10/100/1000M Adaptive Ethernet RJ45 connector
Other I/O ports	HDMI in, HP, MIC, Amp., GPIO Signals, Line out, DC-12V and so on
WiFi	Dual band WiFi 2.4G/5GHz, supports IEEE 802.11 b/g/n/ac
Bluetooth	BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0
Camera	Support USB camera within 5 million pixels
Face Authorization	Support for Megvii face chip optional
Dimension	100mm80mm9mm (LWH)
Working Environment	T: -20°C ~ 70°C, Humidity: 0%~95% (non-condensing)

UH-3399 Standard Android HMI Motherboard 6

UH-3399 is based on Rockchip RK3399 processor. It has powerful performance, rich interfaces and powerful computing performance. It can be easily applied to scenarios such as welcome robots, face detection recognition and industrial control equipment.
