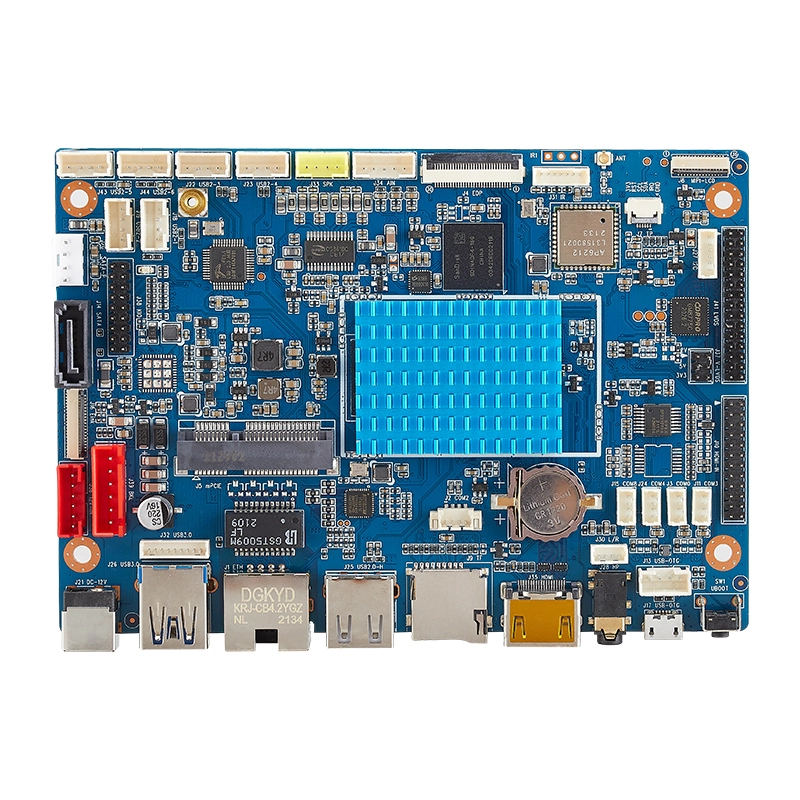

UK-3566 Android AIoT Mother Board

RK3566, Quad-core Cortex-A55@1.8GHz, Mali-G52 2EE GPU, 0.8 Top Computing power, with 4GB/8GB Ram optional and max. 128GB ROM. Supports 4G module.

Inquiry

Write a Review

Specification List

Model No.	UK-3566
Category	Android Mother Board
Chipset	Rockchip
CPU/Processor	RK 3566, 64Bit Cortex A55_ Quad Core, up to 1.8GHz
GPU	Mali G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, built-in 2D accelerator
NPU	0.8 Top Computing power
OS	Recommend: Andriod 11 Optional: Linux Buildroot/Debian 10/Ubuntu-18.04
Resolution	4K 60fps H.265/H.264/VP9 decoding, supports 1080P 100fps H.265/H.264 coding, 8M ISP
RAM	Standard: 2GB _LPDDR4 Optional: 4GB/8GB
ROM	16GB_EMMC, Max. 128GB optional
Storage Extension	1* Micro SD slot: Max. 256GB supported, 1* Standard SATA 3.0 port with power supply header
USB Ports	1* USB 3.0, 1* USB 2.0, 1* USB 3.0 pin header 6* USB 2.0 pin headers (one is CPU raw USB)
Serial Port	1* TTL 2* TTL/232 compatible 2* TTL/485 compatible
Display Interface	LVDS, MIPI-DSI, EDP, HDMI, RGB/T-CON, supports dual screen display
Ethernet	10/100/1000M Adaptive Ethernet RJ45 connector
Other I/O ports	E-Ink Panel, HDMI in, HP, MIC, Amp., GPIO Signals, Line out, DC-12V and so on
WiFi	Built-in SDIO 2.4GHz WiFi, supports IEEE 802.11 b/g/n/ac
4G Module	Mini PCI-E 4G module interface
Bluetooth	BT V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
Camera	Support USB camera within 8 million pixels
Dimension	135mm95m9mm (LWH)
Working Environment	T: 0°C ~ 70°C, Humidity: 0%~95% (non-condensing)

UK-3566 board is driven by a quad-core Cortex-A55 processor that is capable of reaching a maximum clock speed of 1.8GHz. The Mali-G52 GPU can efficiently handle far greater graphical complexity. It also comes with a 0.8-TOPS NPU for AI acceleration and a max RAM capacity of 8GB. With a variety of onboard display interfaces, multiple I/O and expansion options, this board may be readily applied to cloud-based terminals, industrial control, edge computing, and more.
