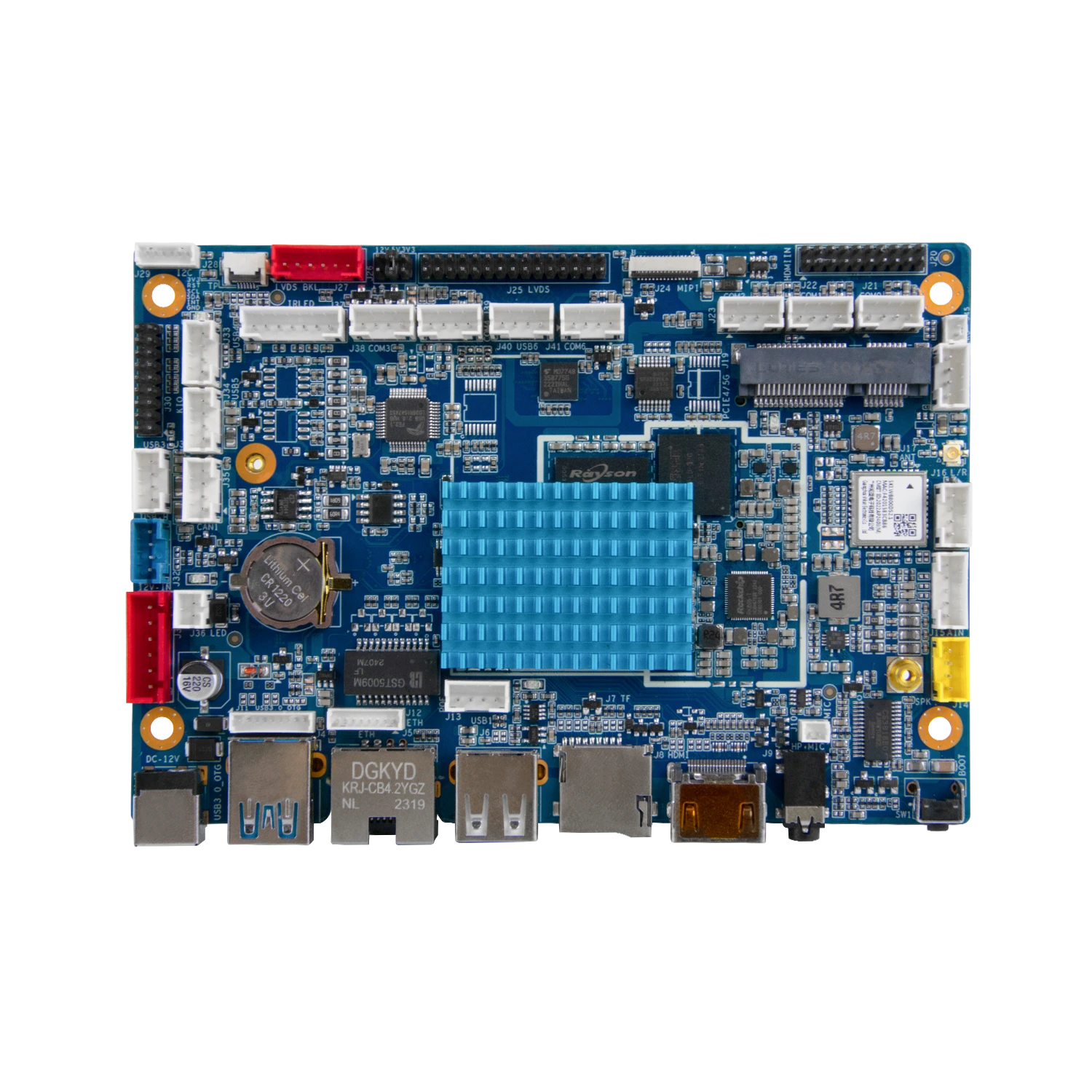

UK-3588S Android AIoT Mother Board

Rockchip RK3588s, Octa-core 64Bits CPU, up to 2.4GHz, built-in NPU up to 6Tops computing power, Max. 32GB Ram and 256GB ROM, 8K decoding supports multi displays.

Inquiry

Write a Review

Specification List

Model No.	UK-3588S
Category	Android Mother Board
Chipset	Rockchip
CPU/Processor	RK 3588, 64Bit Cortex A76_ Quad Core+Cortex A55_Quad Core, up to 2.4GHz
GPU	ARM Mali-G610 MP4, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2, built-in 2D accelerator
NPU	6 Tops Computing power, Triple Core Cortex, supports int4/int8/int16/FP16
OS	Recommend: Andriod 12 Optional: , Linux Buildroot/Debian 11/Ubuntu-20.04 optional
Resolution	supports H.265/H.264/AV1/VP9 decoding, max. 8K@60FPS, supports H.264/H.265 coding, max. 8K@30FPS
RAM	Standard: 4GB _LPDDR4 Optional: 8GB/16GB/32GB
ROM	32GB_EMMC Nand Flash, Max. 256GB optional
Storage Extension	1* Micro SD slot: Max. 256GB by TF Card supported
USB Ports	1* USB 2.0 1* USB 3.0 OTG, 7* USB pin headers (USB Hub 2.0* 6, USB Host 2.0* 1 and USB OTG 3.0 pin *1 reuse)
Serial Port	2* TTL/RS-232/RS-485 compatible, 4* TTL/RS-232 compatible
Display Interface	1* LVDS 1* MIPI-DSI 1* HDMI 2.1 1* EDP Spports multi displays, max. 8K@60FPS
Display input	14lanes+24Lanes MIPI CSI-2 and DVP input 1* HDMI 2.0 input
Ethernet	10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header
Other I/O ports	1* HP/MIC socket, 1* Amplifer output, 1* GPIO Signals, 1* Line out, 1* Line in, 1* DC-12V power socket, 1* Mic in pin header 1* Infrared RC pin header 1* I2C Bus pin header 1* M.2 PCIE NVME SSD socket, supports M.2 NVME 2280 SSD …
WiFi	Dual band WiFi 6 supports IEEE 802.11 a/b/g/n/ac/ax
4G/5G Module	Industry standard m-PCIE 4G module interface
Bluetooth	V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0/BT v5.0
Camera	Support USB camera within 8.0MP
Dimension	135mm93m9mm (LWH)
Working Environment	T: -20°C ~ 70°C Humidity: 0%~95% (non-condensing)

UK-3588S is based on RK3588S Octa-core CPU, with performance comparable to RK3588 and more cost-effective. Its NPU computing power is up to 6T, and AI computing is more efficient. The motherboard integrates CAN, Gigabit Ethernet, PCIe, M.2 high-performance interfaces, and has multiple display interfaces, supporting three screen abnormal display and up to 8K output. Provide high-performance solutions for edge computing, artificial intelligence, intelligent security, industrial control and other fields.
